Pepperl Fuchs

AG1/AS1

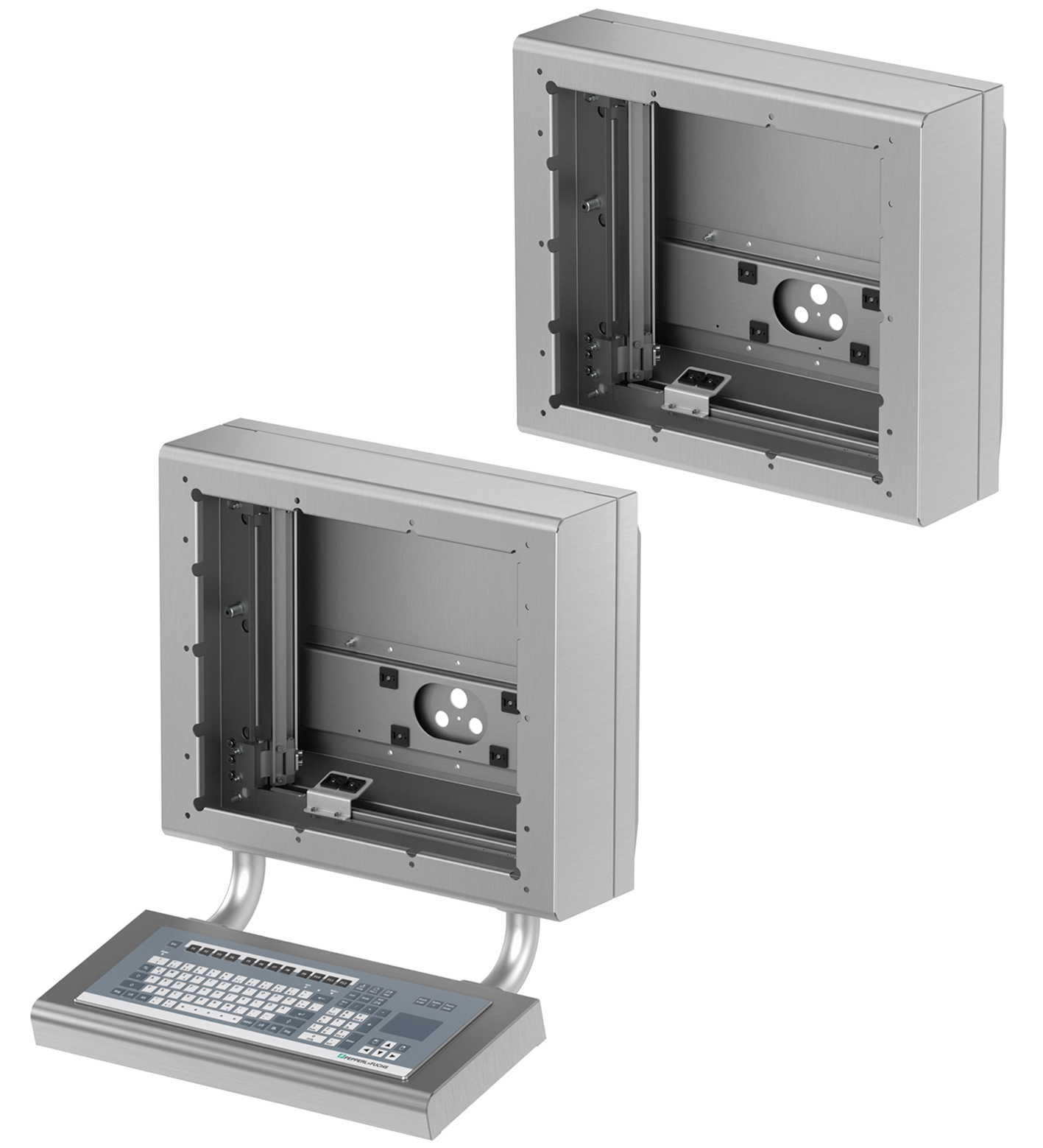

Monitor Housing AG1/AS1 for VisuNet EX1. Mechanically designed to carry VisuNet Ex1 units, Prepared for different mounting options: Pedestal-/Wall-/Ceiling mounting, Frontdoor for optimal accessability during installation and maintenance. Degree of protection: IP66 (15 inch / 19 inch) keyboard housing, optional: IP66 (on the back) , depending on mouse type at front - refer to datasheet EXTA2. Material: AG1: stainless steel 1.4301 (304) option available upon request : AS1: stainless steel 1.4571 (316Ti) / stainless steel 1.4404 (316L). Mass: 27 kg (15 inch) 25 kg (19 inch) 4 kg (keyboard housing, optional). Dimensions: 582 x 490 x 213 mm (without panel) 582 x 490 x 229 mm (15 inch panel) 582 x 490 x 224 mm (19 inch panel)

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
