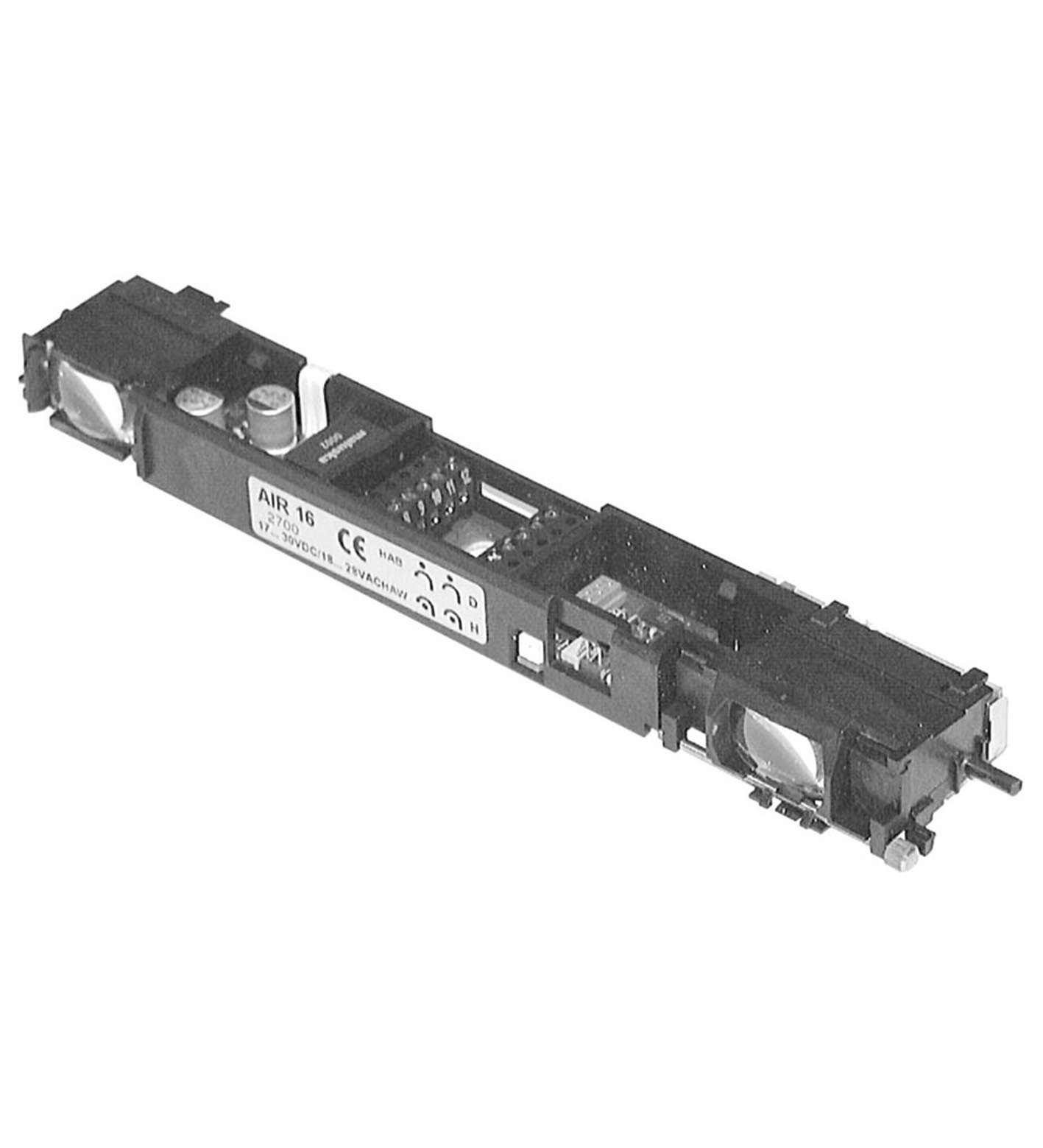

AIR16 Module

Sensor module. Sensor module for configurable Topscan switch, Function: Open and secure, Sensor principle: Active infrared scanner, Operating voltage: 17 ... 30 V DC , 18 ... 28 V AC, Signal output: R...

Sensor module. Sensor module for configurable Topscan switch, Function: Open and secure, Sensor principle: Active infrared scanner, Operating voltage: 17 ... 30 V DC , 18 ... 28 V AC, Signal output: Relay, 1 alternator, Connection: screw terminals. Detection range min.: 0 ... 1500 mm by background evaluation, 500 ... 1500 mm by background suppression. Detection range max.: 0 ... 2500 mm with background evaluation, 500 ... 2500 mm with background suppression. Light source: IRED. Black-white difference (6 %/90 %): < 20 % at 2000 mm sensor range. Marking: CE. Operating mode: switching between background suppression/evaluation. Diameter of the light spot: 75 x 75 mm by sensing range 2000 mm. MTTFd: 880 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 60 %. Function indicator: LED red. Control elements: Sensing range adjuster, light-on/dark-on changeover switch, changeover switch for mode of operation Background suppression / Background evaluation ; Adjuster for edge monitoring left/right. Operating voltage: 17 ... 30 V DC , 18 ... 28 V AC. No-load supply current: < 100 mA. Switching type: Light-on/dark-on changeover switch. Signal output: Relay, 1 alternator. Switching voltage: max. 24 V DC , 48 V AC. Switching current: ≤ 1 A. Switching power: 24 W / 55 VA. Response time: 30 ms , 2 s after test. Directive conformity: . EMC Directive 2004/108/ECEN 61000-6-2:2005 EN 61000-6-3:2007: . EMC Directive 2004/108/EC: EN 61000-6-2:2005 EN 61000-6-3:2007. Standard conformity: . StandardsEN 62471:2008: . Standards: EN 62471:2008. CCC approval: CCC approval / marking not required for products rated ≤36 V. UN/ECE Regulation No. 10 (E1): Type-approval number: 047349. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Connection: screw terminals. Series: TopScan

Brand	Pepperl Fuchs
Lifecycle status	active
