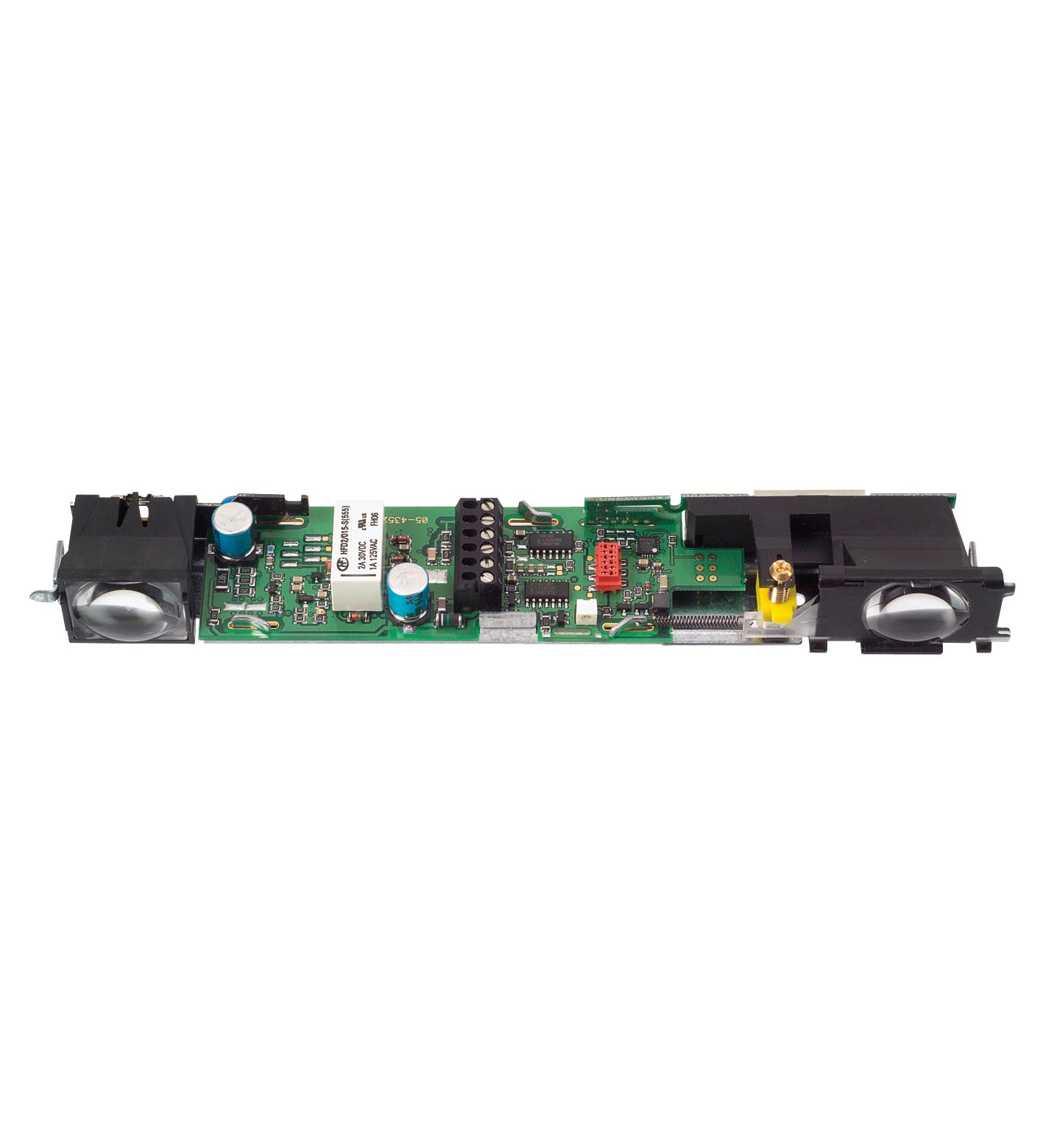

AIR17-S Master

Sensor module. Sensor module for configurable TopScan-S, Master module, Category 2, tested and certified to DIN 18650/EN 16005, Safe function even on difficult floors, Easy adjustment of transmitter f...

Sensor module. Sensor module for configurable TopScan-S, Master module, Category 2, tested and certified to DIN 18650/EN 16005, Safe function even on difficult floors, Easy adjustment of transmitter for hinge side/ opposite hinge side, Function: Open and secure, Sensor principle: Active infrared scanner, Operating voltage: 24 V DC +/- 20 %, Signal output: Relay, 1 alternator. Detection range min.: 0 ... 1500 mm. Detection range max.: 0 ... 2500 mm. Light source: IRED. Light type: modulated infrared light. Black-white difference (6 %/90 %): < 2 % at 2000 mm sensor range. Operating mode: Background evaluation. Diameter of the light spot: 1.1 cm x 8.3 cm at 2000 mm sensor range. MTTFd: 880 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 90 %. Function indicator: LED red/green. Control elements: Sensing range adjuster. Operating voltage: 24 V DC +/- 20 %. No-load supply current: 75 mA. Test input: active at U = 11 V DC at 30 V DC inactive at U = -3 V DC at 5 V DC. Switching type: Relay de-energized at object inside the scanning range. Signal output: Relay, 1 alternator. Switching voltage: 5 V ... 30 V AC/DC. Switching current: max. 300 mA. Response time: ≤ 70 ms. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -10 ... 50 °C (14 ... 122 °F). Mounting height: max. 2500 mm. Note: Safety fuse ≤ 1 A (slow-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly.

Brand	Pepperl Fuchs
Lifecycle status	active
