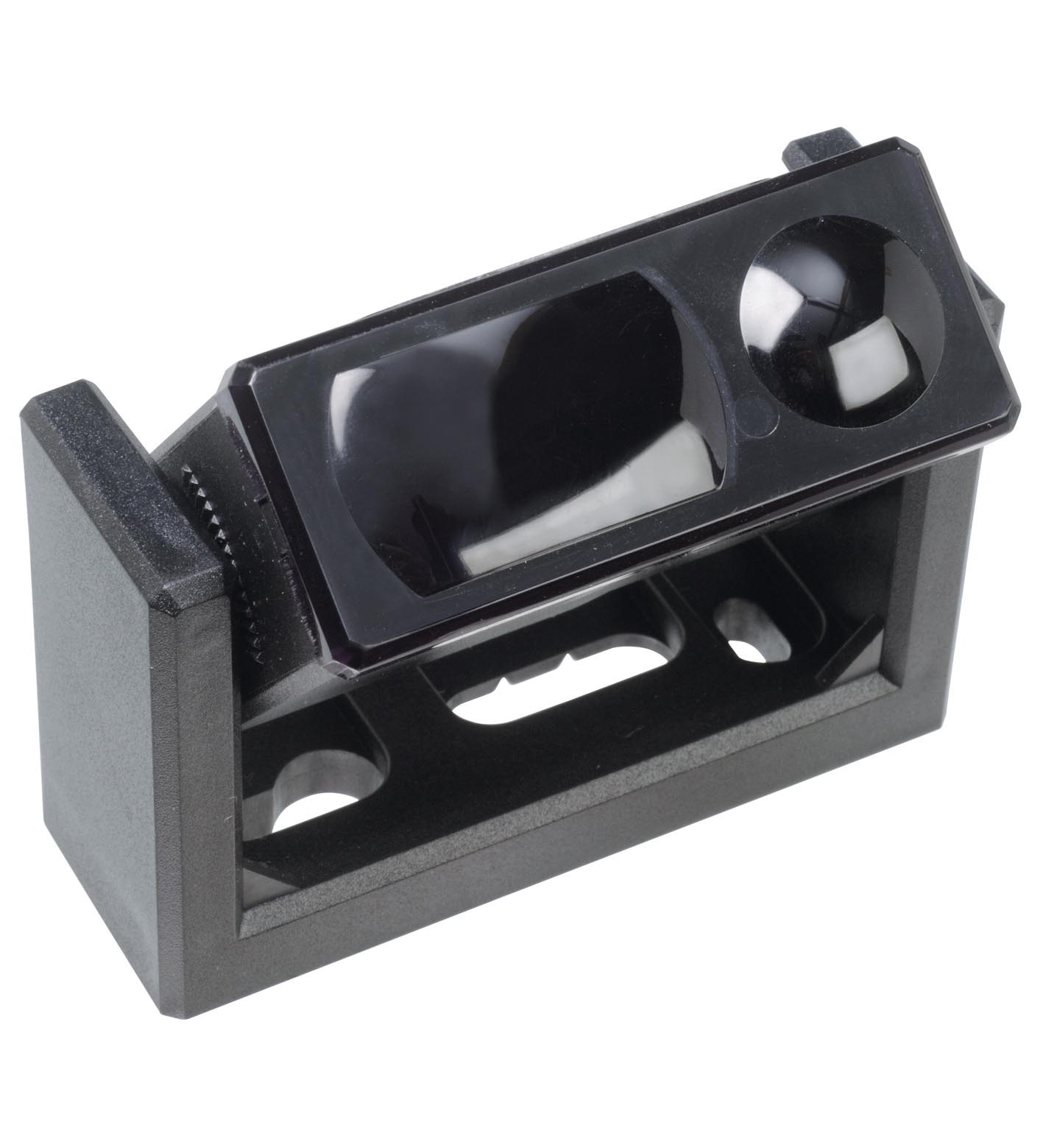

AIR20-8-H-2200/25/38a

Active infrared scanner. Single-beam diffuse mode sensor with background suppression, Can be used to secure closing edges or as an opening impulse sensor on automatic doors, Can also be used as door h...

Active infrared scanner. Single-beam diffuse mode sensor with background suppression, Can be used to secure closing edges or as an opening impulse sensor on automatic doors, Can also be used as door handle monitor on revolving doors, Narrow, precise long range light beam , Suitable for moving or stationary mounting, Function: Open and secure, Sensor principle: Active infrared scanner, Operating voltage: 12 ... 30 V DC / 18 ... 28 V AC, Signal output: Relay, 1 alternator. Detection range: factory setting: 1300 mm (adjustable). Detection range min.: 200 ... 1300 mm. Detection range max.: 200 ... 2200 mm. Light source: IRED. Light type: modulated infrared light. Black-white difference (6 %/90 %): ≤ 400 mm at Tw 1300 mm. Operating mode: Background suppression. Diameter of the light spot: 60 mm at Tw 1300 mm. Opening angle: approx. 2.6 °. Accessories provided: Swivel bracket, Mounting angle, Connecting cable. MTTFd: 1420 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: LED red: lights up when output is active. Control elements: Sensing range adjuster. Operating voltage: 12 ... 30 V DC / 18 ... 28 V AC. No-load supply current: < 50 mA. Switching type: light-on. Signal output: Relay, 1 alternator. Switching voltage: ≤ 48 V AC / DC. Switching current: ≤ 0.5 A AC / 1 A DC. Response time: approx. 50 ms. De-energized delay: approx. 250 ms. Product standard: EN 60947-5-2. Standard conformity: . StandardsEN 60947-5-2 EN 61000-6-2 without EN 61000-4-5, EN 61000-4-11 EN 61000-6-3: . Standards: EN 60947-5-2 EN 61000-6-2 without EN 61000-4-5, EN 61000-4-11 EN 61000-6-3. CE conformity: yes. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 75 °C (-4 ... 167 °F). Degree of protection: IP52. Connection: plug-in screw terminals (5 m connecting cable in delivery package). Material: . HousingABSOptical facePMMA: . Housing: ABS. Optical face: PMMA. Mass: 50 g. Dimensions: . Height25 mmWidth68 mmDepth49 mm: . Height: 25 mm. Width: 68 mm. Depth: 49 mm. Note: Safety fuse ≤ 315 mA (slow-blow) according to IEC 60127-2 Sheet 1

Brand	Pepperl Fuchs
Lifecycle status	active
