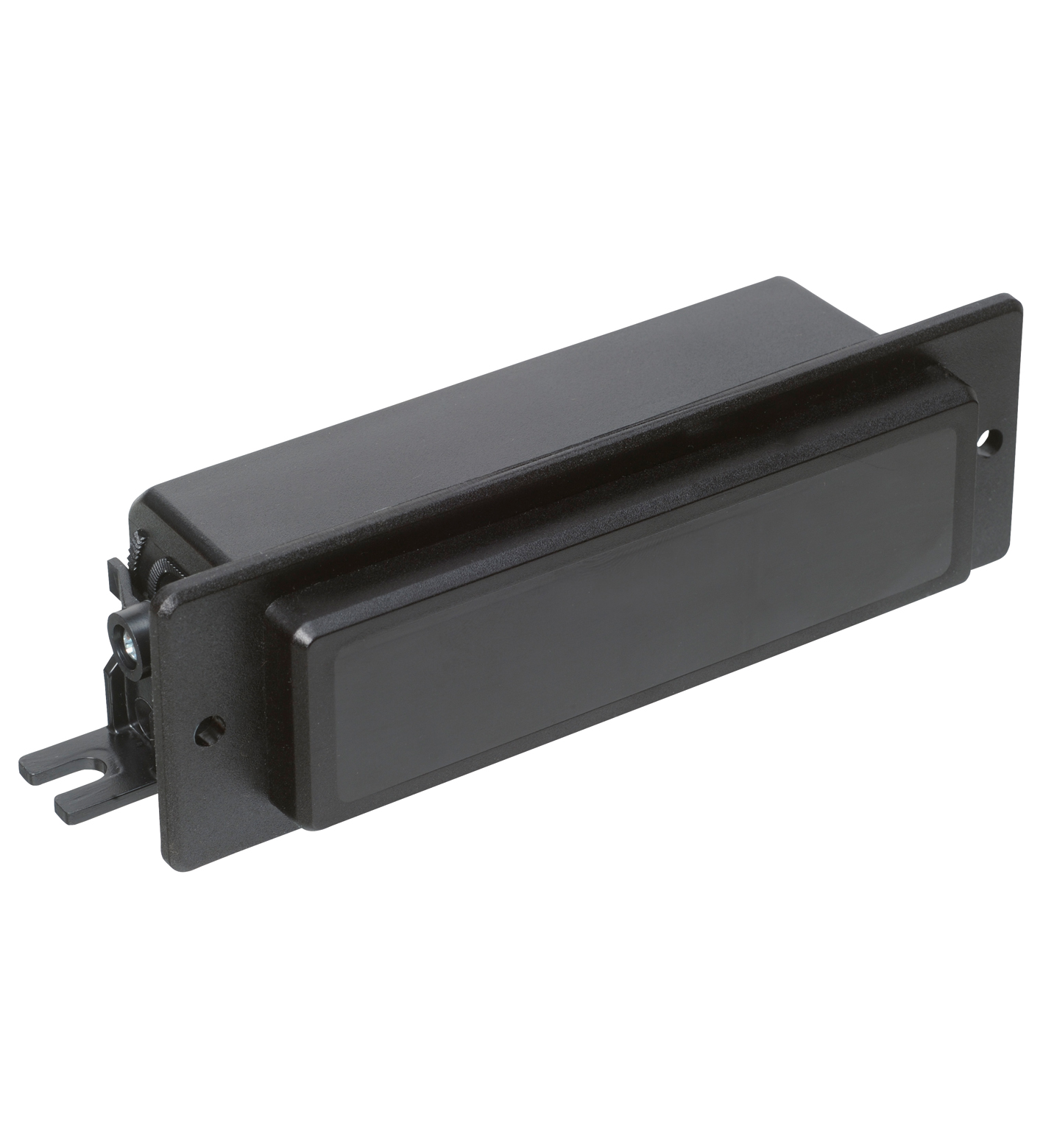

AIR30/32-UP-2483/B

Active infrared scanner. Single-beam light scanner, Can be used to monitor both main and ancillary closing edges, Closing edge safety on revolving doors and carousel doors, Accurate beam alignment tha...

Active infrared scanner. Single-beam light scanner, Can be used to monitor both main and ancillary closing edges, Closing edge safety on revolving doors and carousel doors, Accurate beam alignment thanks to finely bundled light beam, Flush-mounted version with front cover, black, Function: Secure, Sensor principle: Active infrared scanner, Operating voltage: 10 ... 30 V DC, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Connection: 2 m fixed cable. Detection range min.: 0 ... 1870 mm preset. Light source: IRED. Light type: modulated infrared light. Black-white difference (6 %/90 %): ≤ 400 mm at a distance of 2000 mm. Transmitter frequency: 1800 Hz. Operating mode: Background evaluation. Diameter of the light spot: 50 mm at 2000 mm sensor range. Opening angle: approx. 1.4 °. Accessories provided: Swivel bracket, Mounting bracket. MTTFd: 1050 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 90 %. Function indicator: LED red: lights up when output is active. Control elements: Sensing range adjuster, light-on/dark-on changeover switch. Factory setting: dark-on. Operating voltage: 10 ... 30 V DC. No-load supply current: 100 mA. Switching type: light/dark on, switchable. Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: 30 V DC. Switching current: ≤ 200 mA. Response time: 50 ms. De-energized delay: approx. 200 ms. Standards: EN 60947-5-2. Standards 2: EN 61000-6-2 without EN 61000-4-5, EN 61000-4-11. Standards 3: EN 61000-6-3. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -20 ... 70 °C (-4 ... 158 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP52. Connection: 2 m fixed cable. Material: . HousingplasticOptical faceLuran®: . Housing: plastic. Optical face: Luran®. Mass: 40 g. Dimensions: . Height45 mmWidth102 mmDepth32 mm: . Height: 45 mm. Width: 102 mm. Depth: 32 mm

Brand	Pepperl Fuchs
Lifecycle status	active
