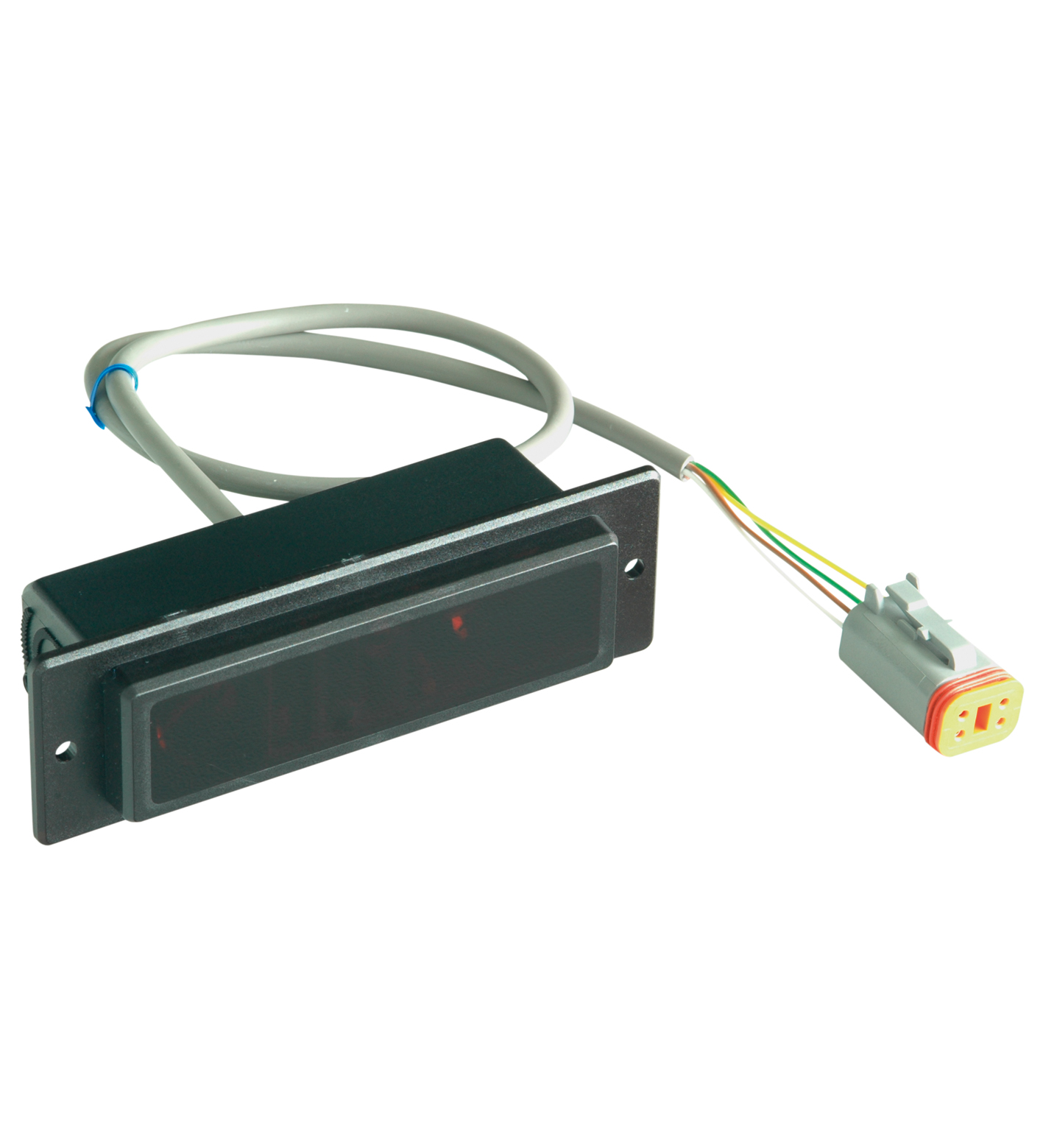

AIR30/32-UP-2493
Active infrared scanner. Single-beam light scanner, Can be used to monitor both main and ancillary closing edges, Closing edge safety on revolving doors and carousel doors, Accurate beam alignment tha...
Active infrared scanner. Single-beam light scanner, Can be used to monitor both main and ancillary closing edges, Closing edge safety on revolving doors and carousel doors, Accurate beam alignment thanks to finely bundled light beam, Flush-mounted version with front cover, black, Function: Secure, Sensor principle: Active infrared scanner, Operating voltage: 24 V DC, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Detection range min.: 0 ... 885 mm preset. Reference target: material with reflection factor> 6%. Light source: IRED. Light type: modulated infrared light. Transmitter frequency: 1800 Hz. Operating mode: Background evaluation. Diameter of the light spot: 22 x 22 mm at sensor range 885 mm. Opening angle: approx. 1.4 °. Accessories provided: Swivel bracket, Mounting bracket. MTTFd: 1050 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 90 %. Operating voltage: 24 V DC. No-load supply current: 100 mA. Test input: emitter deactivation at +UB. Switching type: light-on (output is active, when background exists and no person in the detection field). Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max: 31.2 V DC. Switching current: ≤ 0.2 A. Response time: 50 ms. Standards: EN 60947-5-2. Standards 2: EN 61000-6-2 without EN 61000-4-5, EN 61000-4-11. Standards 3: EN 61000-6-3. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Degree of protection: IP52. Connection: Connecting cable 500 mm with socket connector (Deutsch), 4-pin. Material: . HousingplasticOptical faceLuran®: . Housing: plastic. Optical face: Luran®. Mass: 50 g. Dimensions: . Height45 mmWidth102 mmDepth32 mm: . Height: 45 mm. Width: 102 mm. Depth: 32 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
