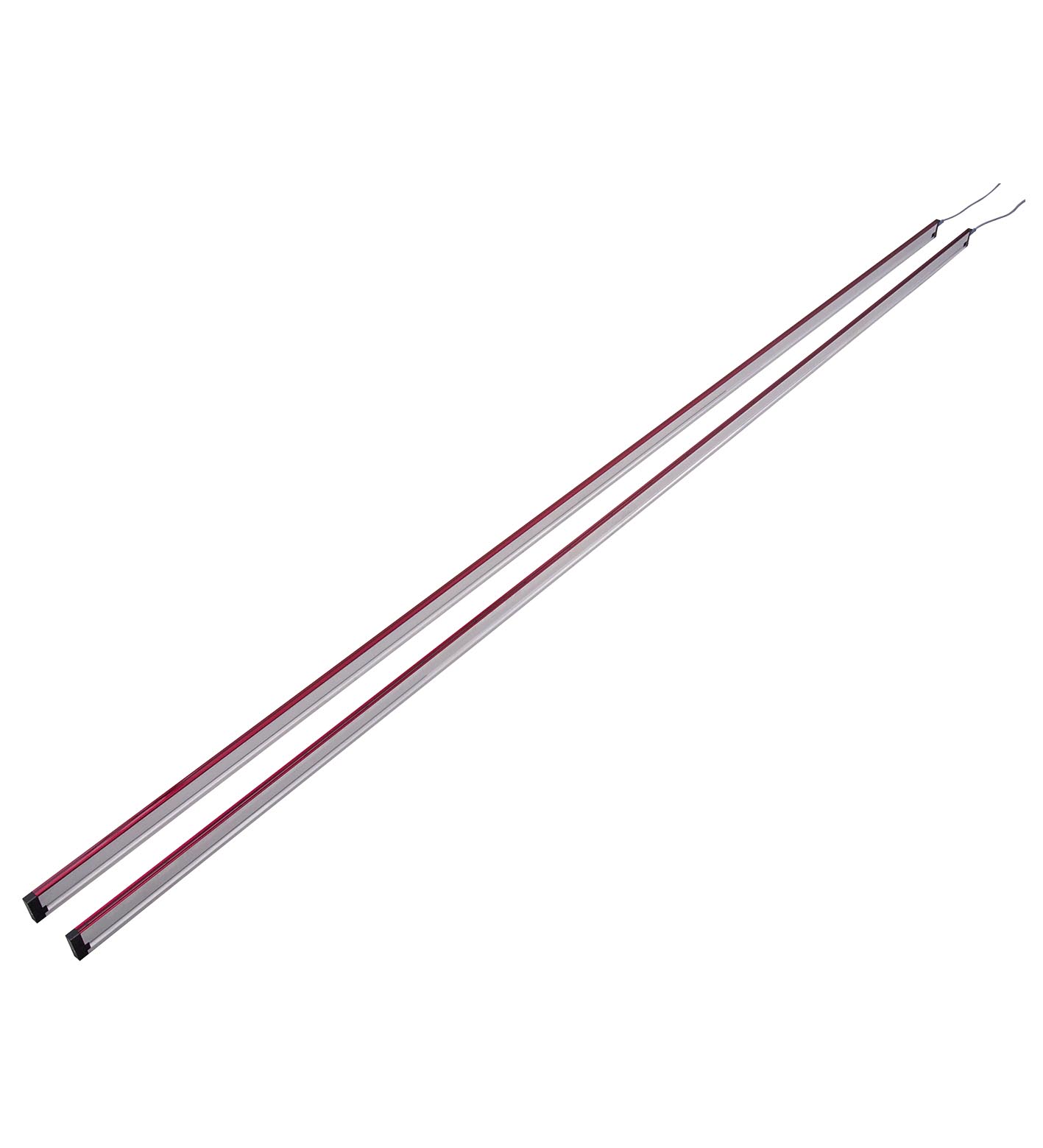

AL2109-P-1820/40b/49/143
Elevator light grid. Low-profile, high resolution light grid for monitoring locking edges on elevators and accesses, Thru-beam light grid with integrated controller, In accord with EN81-70 and EN12015...
Elevator light grid. Low-profile, high resolution light grid for monitoring locking edges on elevators and accesses, Thru-beam light grid with integrated controller, In accord with EN81-70 and EN12015/16, Dense monitoring field with up to 135 beams ensures that small objects are detected, Object detection up to distance of zero, Operating voltage: 11 ... 30 V DC, UL approval: cULus Listed, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection: M8 x 1 connector, 4-pin, Housing: Aluminum. Effective detection range: 0 ... 3500 mm. Threshold detection range: 3500 mm. Light source: IRED. Light type: modulated infrared light , 950 nm. Field height: 1800 mm. Beam crossover: automatic, 3x/5x/7x (depending on distance between transmitter/receiver). Beam blanking: Defective beams are faded out after 60 s. Deactivation of the light grid upon failure of 2 adjacent beams or more than 50 % of all beams. Beam spacing: 90 mm. Number of beams: 61 ... 135 (dynamic). Opening angle: Emitter: < 20 ° , Receiver: < 6 °. Ambient light limit: > 100000 Lux. Accessories provided: 2 connecting cable , length 5 m (15 ft). MTTFd: 180 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: LED red (in receiver): Illuminates after connecting operating power, out when object is detected, flashes in case of permanent interruption of 2 neighbouring beams. Operating voltage: 11 ... 30 V DC. Ripple: 10 %. No-load supply current: < 180 mA. Switching type: light/dark on selectable programmable. Signal output: 1 PNP and 1 NPN, short-circuit protected. Switching voltage: max. 30 V DC. Switching current: 100 mA. Switching frequency: < 3 Hz. Response time: < 100 ms. Product standard: EN 60947-5-2. Standard conformity: . StandardsEN 81-70:2003-05 EN 81-70/A1:2004-12 EN 81-1+A3:2009-12; Chapter 7.5.2.1.1.3 Taking into account object detection in accordance with the datasheet specification for the monitoring field.: . Standards: EN 81-70:2003-05 EN 81-70/A1:2004-12 EN 81-1+A3:2009-12; Chapter 7.5.2.1.1.3 Taking into account object detection in accordance with the datasheet specification for the monitoring field.. UL approval: cULus Listed. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 65 °C (-4 ... 149 °F). Profile width: 9 mm. Degree of protection: IP54. Connection: M8 x 1 connector, 4-pin. Material: . HousingAluminumOptical faceplastic: . Housing: Aluminum. Optical face: plastic. Mass: 2000 g (device). Dimensions: . Width9 mmDepth34 mmLength2000 mm: . Width: 9 mm. Depth: 34 mm. Length: 2000 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
