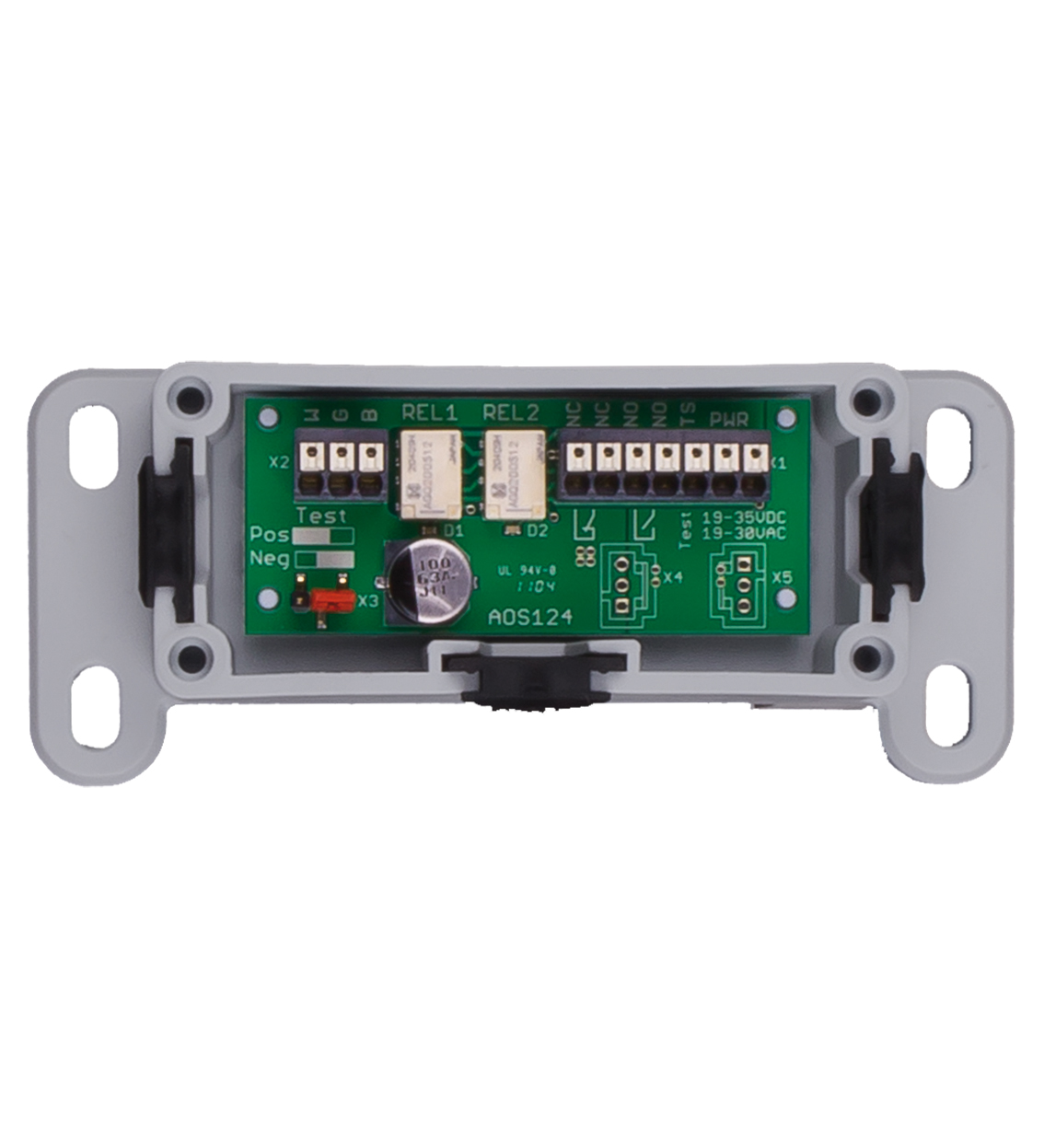

AOS 124

Safety control unit. Safety control unit, one OSE input, LED display indicators, for door leaf mounting, relay output and test input, Function: Switch device for sensor supply, Operating voltage: 19 ....

Safety control unit. Safety control unit, one OSE input, LED display indicators, for door leaf mounting, relay output and test input, Function: Switch device for sensor supply, Operating voltage: 19 ... 35 V DC <BR>19 ... 30 V AC, Output type: relay, change-over contact, Connection: screw terminals , lead cross section 2 x 1 mm². Marking: CE. Function indicator: two yellow indicator LEDs when both light up, the NO is closed and the NC is open. Operating voltage: 19 ... 35 V DC 19 ... 30 V AC. Power consumption: < 1 VA. Test input: Circuit with voltage > 6 V , pull-down 57 kOhm , invertable with X3 jumper. Output type: relay, change-over contact. Switching voltage: 50 V AC/DC. Switching current: 0.6 A. Energized/De-energized delay: typ. 100 ms. Response time: ≤ 20 ms. Functional safety: ISO 13849-1 Cat. 2 when using the test input ISO 13849-1 Cat. 1 without testing. Product standard: EN 61000-6-2, EN 61000-6-3. Ambient temperature: -20 ... 55 °C (-4 ... 131 °F). Storage temperature: -20 ... 55 °C (-4 ... 131 °F). Degree of protection: IP65. Connection: screw terminals , lead cross section 2 x 1 mm2. Material: . HousingPolycarbonate: . Housing: Polycarbonate. Mass: 105 g. Dimensions: . Height52 mmWidth123 mmDepth45 mm: . Height: 52 mm. Width: 123 mm. Depth: 45 mm

Brand	Pepperl Fuchs
Lifecycle status	active
