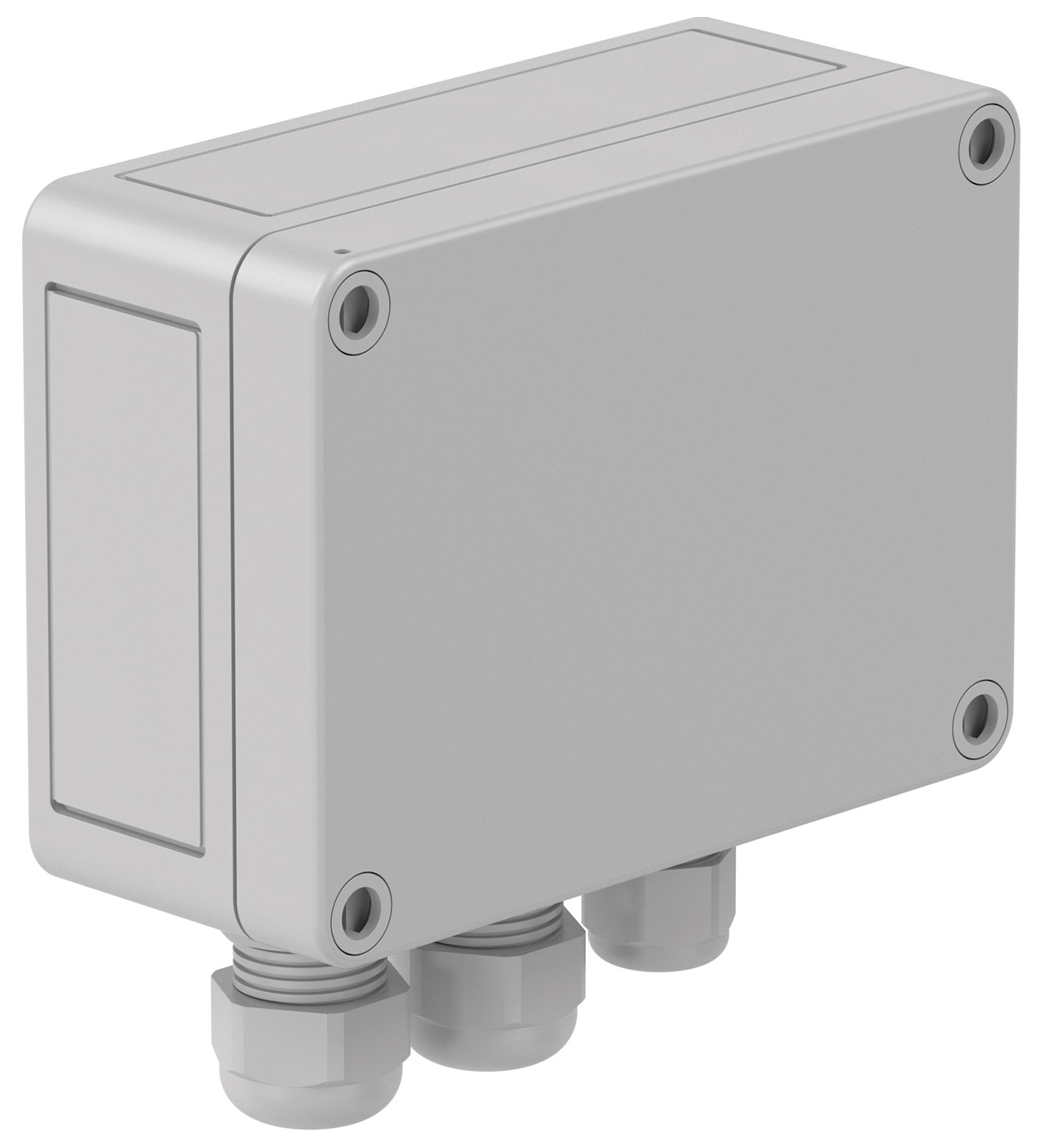

AOS 3024-W
Safety control unit. Safety control unit, Signaling contacts with wiper function, one OSE input, force-guided safety relay, Power/function indicator LEDs, Function: Switch device for sensor supply, Op...
Safety control unit. Safety control unit, Signaling contacts with wiper function, one OSE input, force-guided safety relay, Power/function indicator LEDs, Function: Switch device for sensor supply, Operating voltage: <BR>24 V AC/DC ± 10 %, Output type: relay, NO contact, Connection: screw terminals , lead cross section 2 x 1 mm<sup>2</sup>. Marking: CE. Operation indicator: LED green: power on. Function indicator: LED yellow: safety loop has been interrupted LED green: Safety loop closed. Operating voltage: 24 V AC/DC ± 10 %. Power consumption: max. 6 VA. Output type: relay, NO contact. Switching voltage: 250 V AC / 50 V DC. Switching current: max. 1.25 A. Energized/De-energized delay: typ. 500 ms. Response time: ≤ 20 ms. Output type: Signal output change-over contact. Switching voltage: 250 V AC / 50 V DC. Switching current: max. 1.25 A. Response time: < 20 ms. Functional safety: ISO 13849-1 , Cat. 3 PL d. Product standard: EN 61000-6-2, EN 61000-6-3. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -25 ... 65 °C (-13 ... 149 °F). Degree of protection: IP66 according to EN 60529. Connection: screw terminals , lead cross section 2 x 1 mm2. Material: . HousingPolycarbonate: . Housing: Polycarbonate. Mass: 400 g. Dimensions: . Height95 mmWidth130 mmDepth57 mm: . Height: 95 mm. Width: 130 mm. Depth: 57 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
