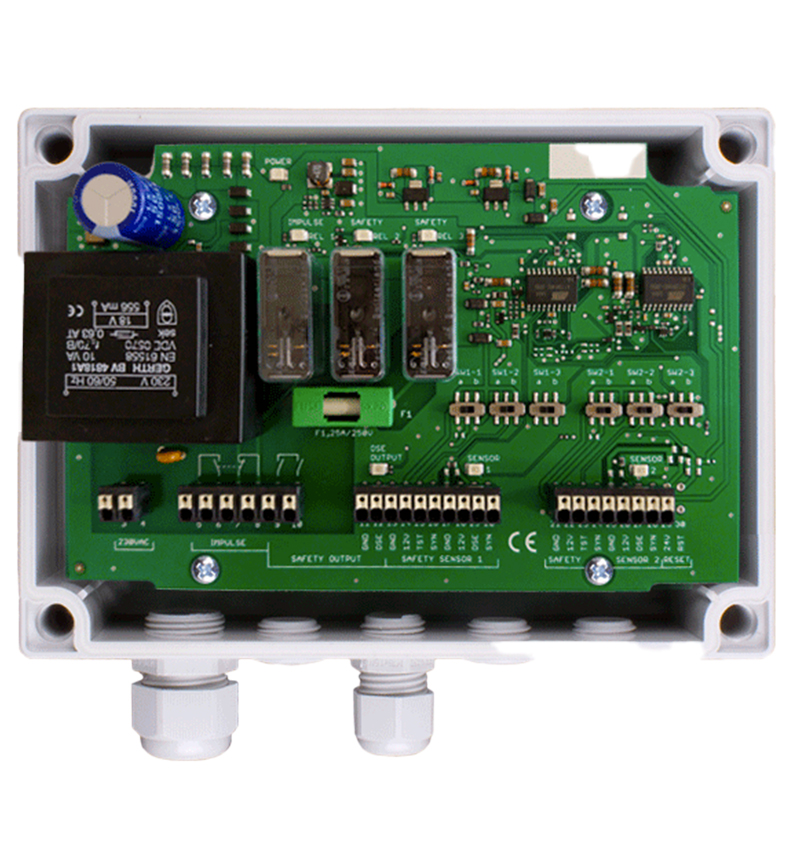

AOS 7024
Safety control unit. Safety control unit, 2-channel interpreter, for two optical closing edge protection devices, two "TWIN-PRO" pull-in protection devices, or two LIGIs with OSE outputs, Two OSE inpu...
Safety control unit. Safety control unit, 2-channel interpreter, for two optical closing edge protection devices, two "TWIN-PRO" pull-in protection devices, or two LIGIs with OSE outputs, Two OSE inputs or 8k2 inputs, one safety circuit, Function: Switch device for sensor supply, Operating voltage: <BR>24 V AC/V DC ± 10 %, Output type: relay, NO contact, Connection: screw terminals , lead cross section 2 x 1 mm<sup>2</sup>. Marking: CE. Operation indicator: LED green: power on. Function indicator: LED red: lights up when the sensor is triggered LED green: lights up when the safety relay is activated LED yellow: safety relay has been interrupted. Operating voltage: 24 V AC/V DC ± 10 %. Power consumption: max. 6 VA. Output type: relay, NO contact. Switching voltage: 250 V AC / 50 V DC. Switching current: max. 1.25 mA. Energized/De-energized delay: typ. 500 ms. Response time: ≤ 20 ms. Functional safety: ISO 13849-1 , Cat. 3 PL d. Product standard: EN 61000-6-2, EN 61000-6-3. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -25 ... 65 °C (-13 ... 149 °F). Degree of protection: IP66 according to EN 60529. Connection: screw terminals , lead cross section 2 x 1 mm2. Material: . HousingPolycarbonate: . Housing: Polycarbonate. Mass: 750 g. Dimensions: . Height113 mmWidth163 mmDepth62.5 mm: . Height: 113 mm. Width: 163 mm. Depth: 62.5 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
