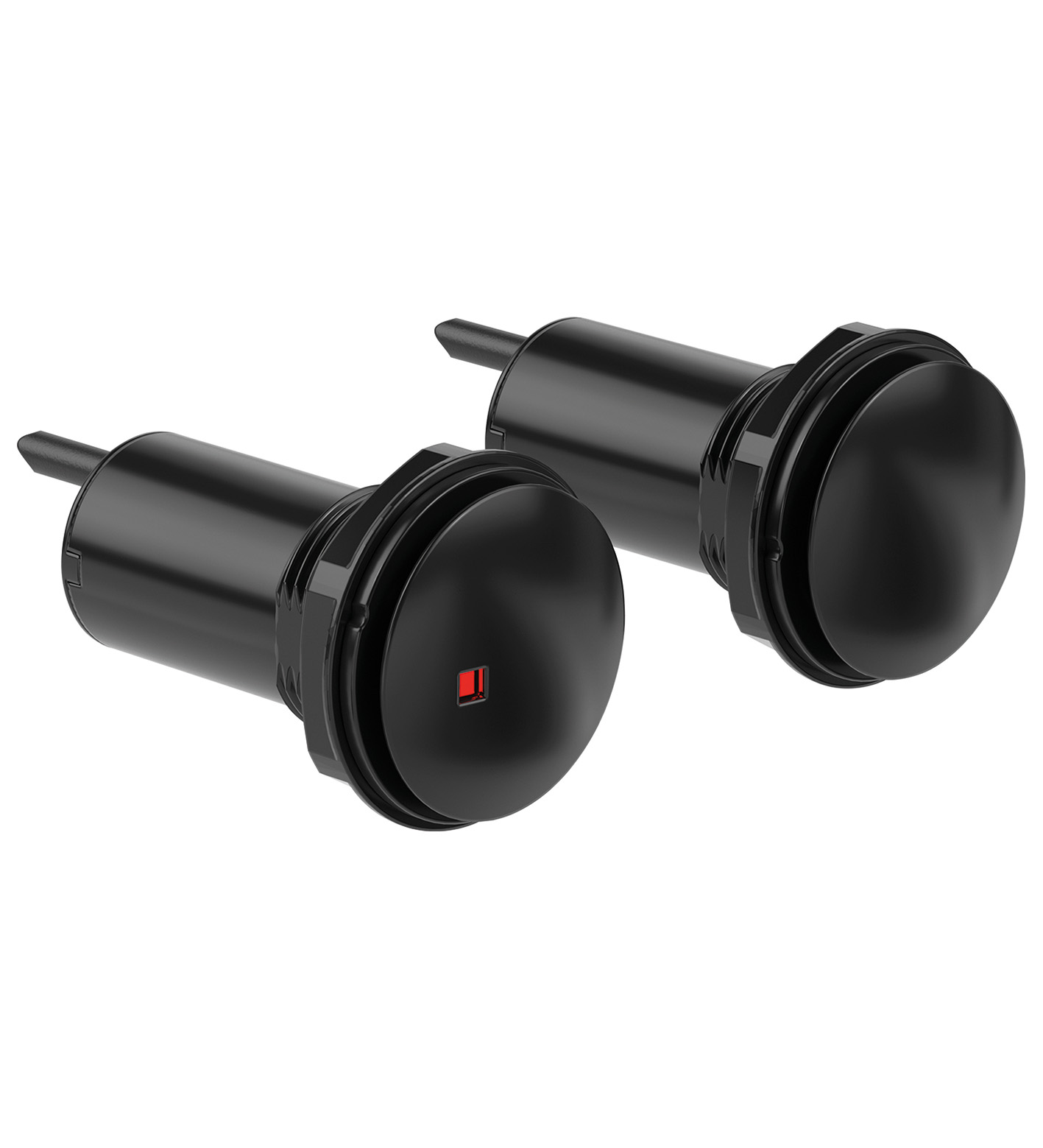

ARGOS-20M-LR-4m
Thru-beam sensor. Indicator LED on the front, Protection against cross-talk with up to four devices, Relay output, Construction type(S2): Cylindrical type, flat, Light source: IRED, Light type: modula...
Thru-beam sensor. Indicator LED on the front, Protection against cross-talk with up to four devices, Relay output, Construction type(S2): Cylindrical type, flat, Light source: IRED, Light type: modulated infrared light 950 nm, Operating voltage: 10 ... 30 V AC <BR>10 ... 40 V DC, Output type: relay, change-over contact, Switching type: light-on, Degree of protection: IP67 according to EN 60529, Connection: Emitter: 0.25 mm<sup>2</sup> , 3-wire 4 m fixed cable <BR>Receiver: 0.25 mm<sup>2</sup> , 5-wire 4 m fixed cable. Emitter: ARGOS-T. Receiver: ARGOS-R. Effective detection range: 0.5 ... 20 m. Threshold detection range: 28 m. Number of protective field beams: 1. Light source: IRED. Light type: modulated infrared light 950 nm. Marking: CE. Diameter of the light spot: approx. 7.3 m at a distance of 20 m. Opening angle: 20 °. Optical face: frontal. Ambient light limit: 100000 Lux. Operation indicator: emitter LED green: power on. Function indicator: Receiver: LED red: lit when the light beam is interrupted. Stability alarm indicator: Receiver: flashing (approx. 4 Hz). Operating voltage: 10 ... 30 V AC 10 ... 40 V DC. Operating current: Emitter: ≤ 10 mA Receiver: ≤ 25 mA. Power consumption: Emitter: ≤ 0.4 VA Receiver: ≤ 1 VA. Output type: relay, change-over contact. Switching type: light-on. Switching voltage: DC: max. 48 V AC: max. 50 V. Switching current: DC: max. 0.5 A AC: max. 0.6 A. Energized/De-energized delay: typ. 100 ms. Response time: ≤ 100 ms. Product standard: EN 61000-6-2, EN 61000-6-3. Ambient temperature: -20 ... 75 °C (-4 ... 167 °F). Storage temperature: -20 ... 75 °C (-4 ... 167 °F). Degree of protection: IP67 according to EN 60529. Connection: Emitter: 0.25 mm2 , 3-wire 4 m fixed cable Receiver: 0.25 mm2 , 5-wire 4 m fixed cable. Material: . HousingPC2805 RF: . Housing: PC2805 RF. Mass: Emitter: 116 g Receiver: 131 g. Dimensions: . Length55 mmDiameter22.5 mm: . Length: 55 mm. Diameter: 22.5 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
