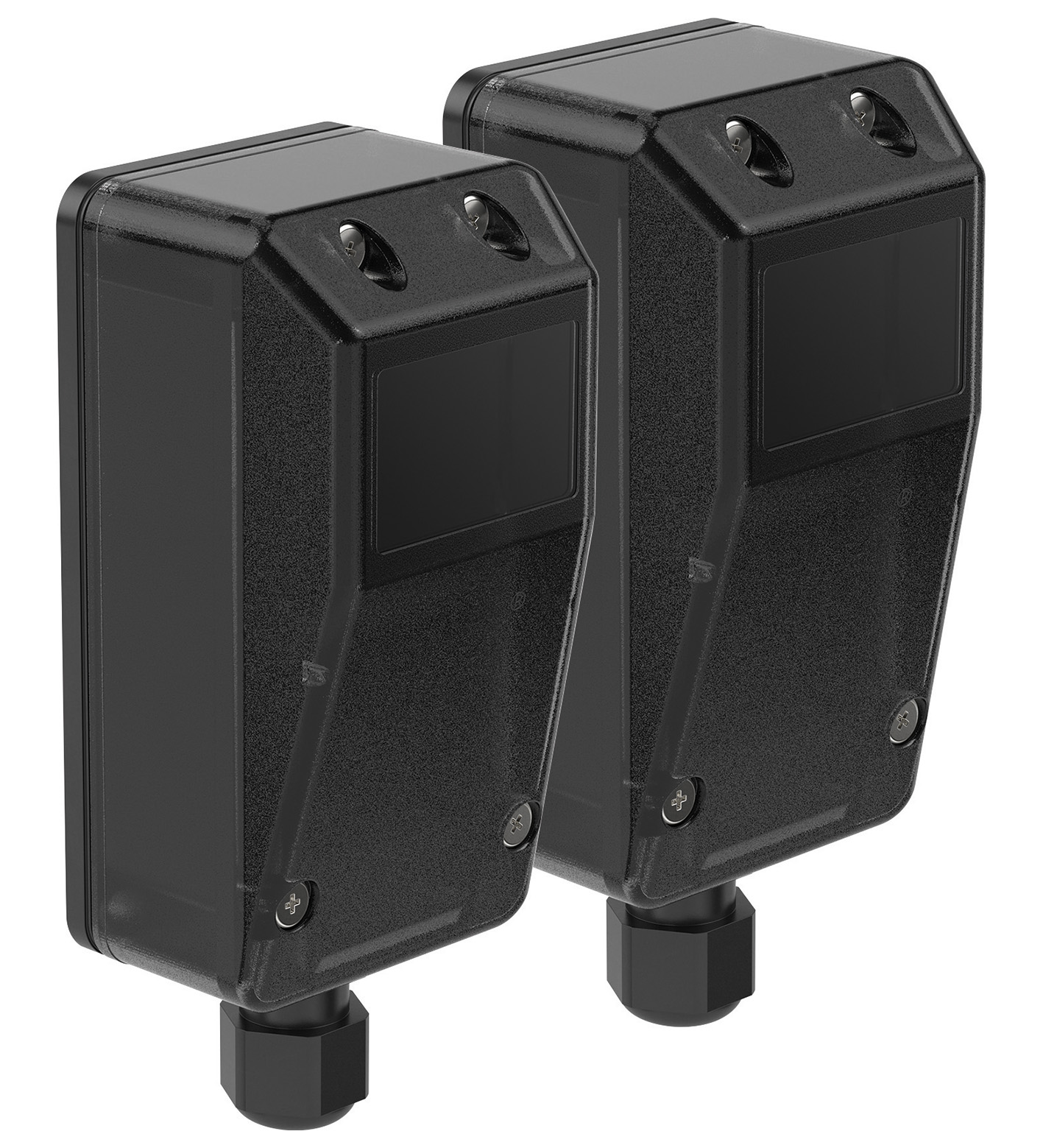

ARGOS25-20M-LR-SET
Thru-beam sensor. Photoelectric sensor for detecting people, objects and vehicles, Indicator LED on the front, Relay output, Version with accessories in scope of delivery, 2 channels, Construction typ...
Thru-beam sensor. Photoelectric sensor for detecting people, objects and vehicles, Indicator LED on the front, Relay output, Version with accessories in scope of delivery, 2 channels, Construction type(S2): Rectangular type, Light source: IRED, Light type: modulated infrared light 950 nm, Operating voltage: 24 V AC ± 25 % <BR>10 ... 40 V DC, Output type: relay, change-over contact, Switching type: light-on, Degree of protection: IP65 according to EN 60529, Connection: screw terminals for max. 1.5 mm<SUP>2</SUP>. Emitter: ARGOS25-T. Receiver: ARGOS25-R. Effective detection range: 1.5 ... 20 m. Threshold detection range: 28 m. Number of protective field beams: 1. Light source: IRED. Light type: modulated infrared light 950 nm. Marking: CE. Diameter of the light spot: approx. 7.3 m at a distance of 20 m. Opening angle: 20 °. Optical face: frontal. Ambient light limit: 100000 Lux. Operation indicator: emitter LED yellow: Power on. Function indicator: Receiver: LED red: lit when the light beam is interrupted LED yellow: lights up when light beam is free. Stability alarm indicator: Receiver: flashing (approx. 4 Hz). Operating voltage: 24 V AC ± 25 % 10 ... 40 V DC. Operating current: Emitter: ≤ 25 mA Receiver: ≤ 30 mA. Power consumption: Emitter: ≤ 1 VA Receiver: ≤ 1.2 VA. Output type: relay, change-over contact. Switching type: light-on. Switching voltage: max. 250 V AC/DC. Switching current: max. 3 A. Energized/De-energized delay: typ. 100 ms. Response time: < 100 ms. Product standard: EN 61000-6-2, EN 61000-6-3. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -35 ... 80 °C (-31 ... 176 °F). Degree of protection: IP65 according to EN 60529. Connection: screw terminals for max. 1.5 mm2. Material: . HousingABS GF15: . Housing: ABS GF15. Mass: approx. 60 g. Dimensions: . Height86 mmWidth44 mmDepth39 mm: . Height: 86 mm. Width: 44 mm. Depth: 39 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
