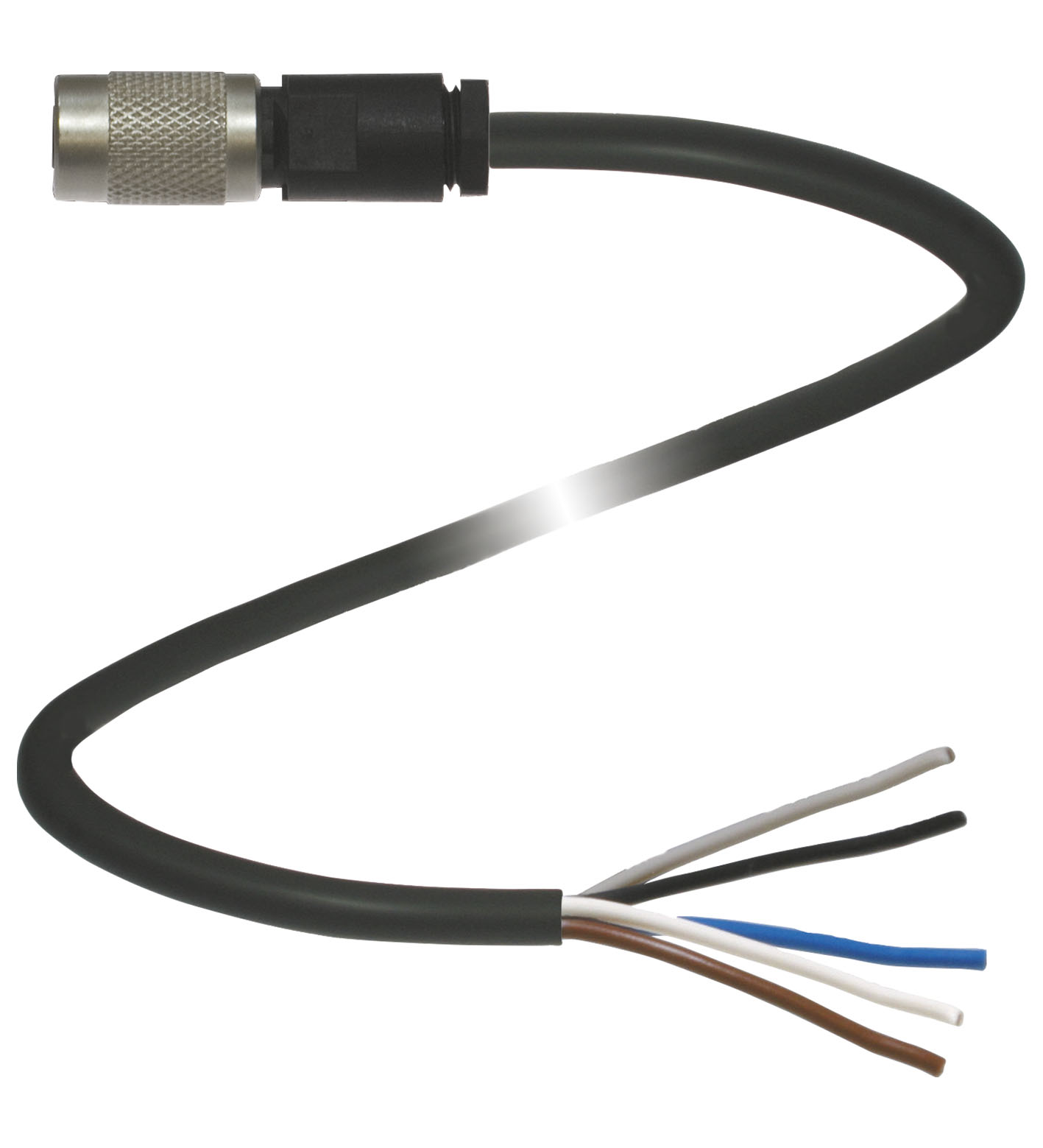

ASK /70 KL.2000MM

Female connector. Female cordset, M9, 5-pin, cable, UL Recognized Component, Screw lock, Degree of protection IP67. Number of pins: 5. Connection 1: socket. Construction type 1: straight. Threading 1:...

Female connector. Female cordset, M9, 5-pin, cable, UL Recognized Component, Screw lock, Degree of protection IP67. Number of pins: 5. Connection 1: socket. Construction type 1: straight. Threading 1: M9. Connection 2: cable end. Operating voltage: max. 125 V DC. Test voltage: > 1500 V eff AC. Operating current: max. 3 A. Volume resistance: < 3 mΩ. UL approval: cURus AWM 20549 AWM I/II A/B 80°C 300V FT2 (cable). Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Pollution degree: 1. Contact elements: spring-loaded contact socket. Pin diameter: 1 mm. Degree of protection: IP67. Material: . ContactsCuSnContact surfaceAuBodyPA 66 , blackSlotted nutCuZn, nickel-plated: . Contacts: CuSn. Contact surface: Au. Body: PA 66 , black. Slotted nut: CuZn, nickel-plated. Cable: fine-strand, flexible. Sheath diameter∅5.2 mmColorblackCores5 x 0.25 mm2Conductor construction28 x 0.07 mm ∅LengthL2 m: . Sheath diameter: ∅5.2 mm. Color: black. Cores: 5 x 0.25 mm2. Conductor construction: 28 x 0.07 mm ∅. Length: 2 m

Brand	Pepperl Fuchs
Lifecycle status	active
