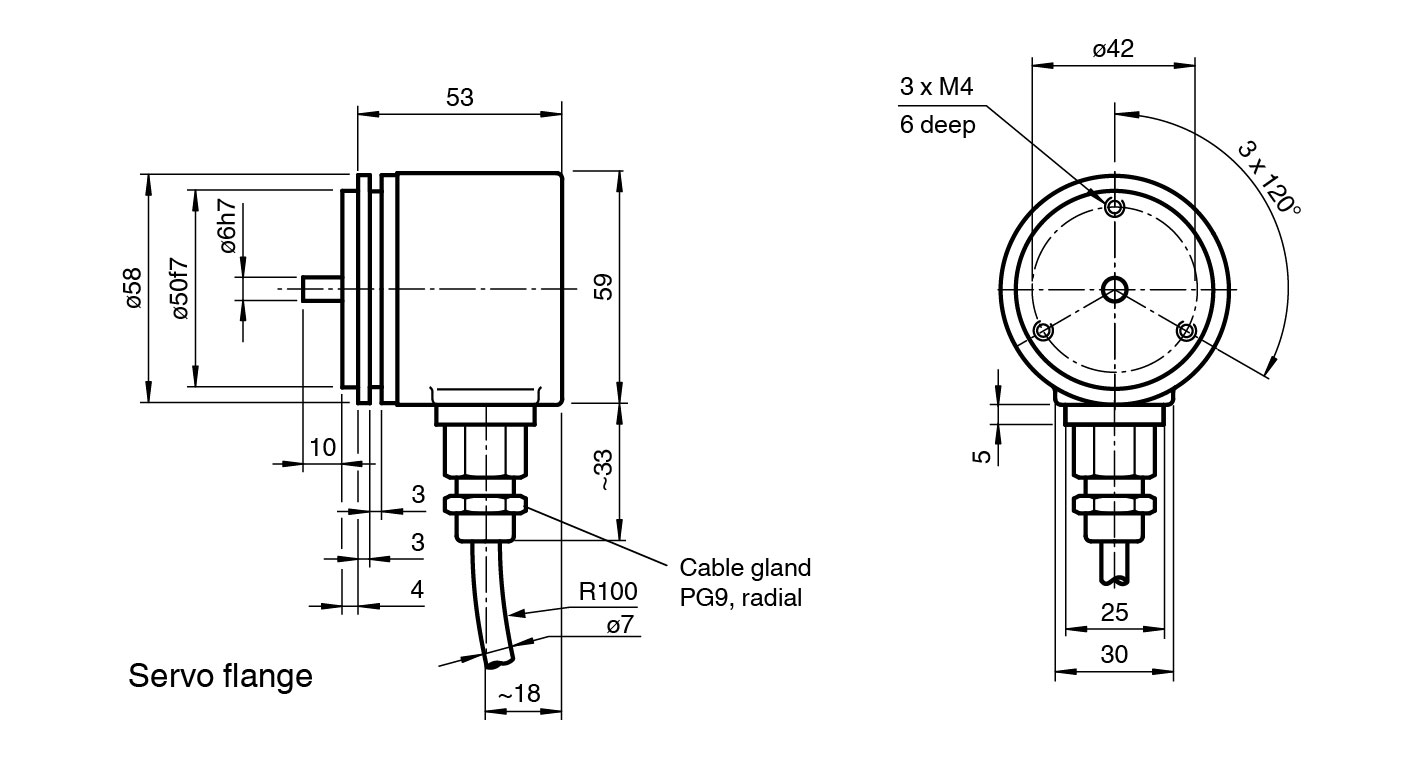

AVM58W-032K1R0G5-1212

Multiturn absolute rotary encoder. Industrial standard housing ∅58 mm, 24 bit multiturn, Data transfer up to 2 MBaud, Optically isolated RS 422 interface, Servo or clamping flange, Enclosure type: 58...

Multiturn absolute rotary encoder. Industrial standard housing ∅58 mm, 24 bit multiturn, Data transfer up to 2 MBaud, Optically isolated RS 422 interface, Servo or clamping flange, Enclosure type: 58 mm, Type of shaft: Solid shaft, Interface: SSI, Detection type: photoelectric sampling, Interface type: SSI ; SSI + incremental track, Input type: Selection of counting direction (cw/ccw). Detection type: photoelectric sampling. Device type: Multiturn absolute rotary encoder. UL File Number: E223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product.. MTBF: 8.1 a (Operation at +40 °C). Operating voltage: 4.5 ... 30 V DC. No-load supply current: max. 180 mA. Time delay before availability: < 250 ms. Linearity: ± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit. Output code: Gray code. Code course (counting direction): cw descending (clockwise rotation, code course descending). Interface type: SSI ; SSI + incremental track. Monoflop time: 20 ± 10 µs. Resolution: . Single turnup to 12 BitMultiturn12 BitOverall resolutionup to 24 Bit: . Single turn: up to 12 Bit. Multiturn: 12 Bit. Overall resolution: up to 24 Bit. Transfer rate: 0.1 ... 2 MBit/s. Voltage drop: UB - 2.5 V. Standard conformity: RS 422. Input type: Selection of counting direction (cw/ccw). Signal voltage: . High4.5 ... 30 VLow0 ... 2 V: . High: 4.5 ... 30 V. Low: 0 ... 2 V. Input current: < 6 mA. Switch-on delay: < 10 ms. Input type: zero-set (PRESET 1). Signal voltage: . High4.5 ... 30 VLow0 ... 2 V: . High: 4.5 ... 30 V. Low: 0 ... 2 V. Input current: < 6 mA. Signal duration: min. 100 ms. Switch-on delay: < 10 ms. Output type: RS422. Signal output: A+B+/A+/B. Pulses: 2048. Cable: ∅7 mm, 6 x 2 x 0.14 mm2, 1 m. Degree of protection: DIN EN 60529, IP66/IP67 (with shaft seal). Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: DIN EN 61000-6-4. Noise immunity: DIN EN 61000-6-2. Shock resistance: DIN EN 60068-2-27, 100 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 20 g, 10 ... 2000 Hz. UL approval: cULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product.. Operating temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Material: . Housingpowder coated aluminumFlangealuminium, salt water resitantShaftStainless steel: . Housing: powder coated aluminum. Flange: aluminium, salt water resitant. Shaft: Stainless steel. Mass: approx. 460 g. Rotational speed: max. 12000 min -1. Moment of inertia: 50 gcm2. Starting torque: < 5 Ncm. Shaft load: . Axial40 NRadial110 N: . Axial: 40 N. Radial: 110 N

Brand	Pepperl Fuchs
Lifecycle status	active
