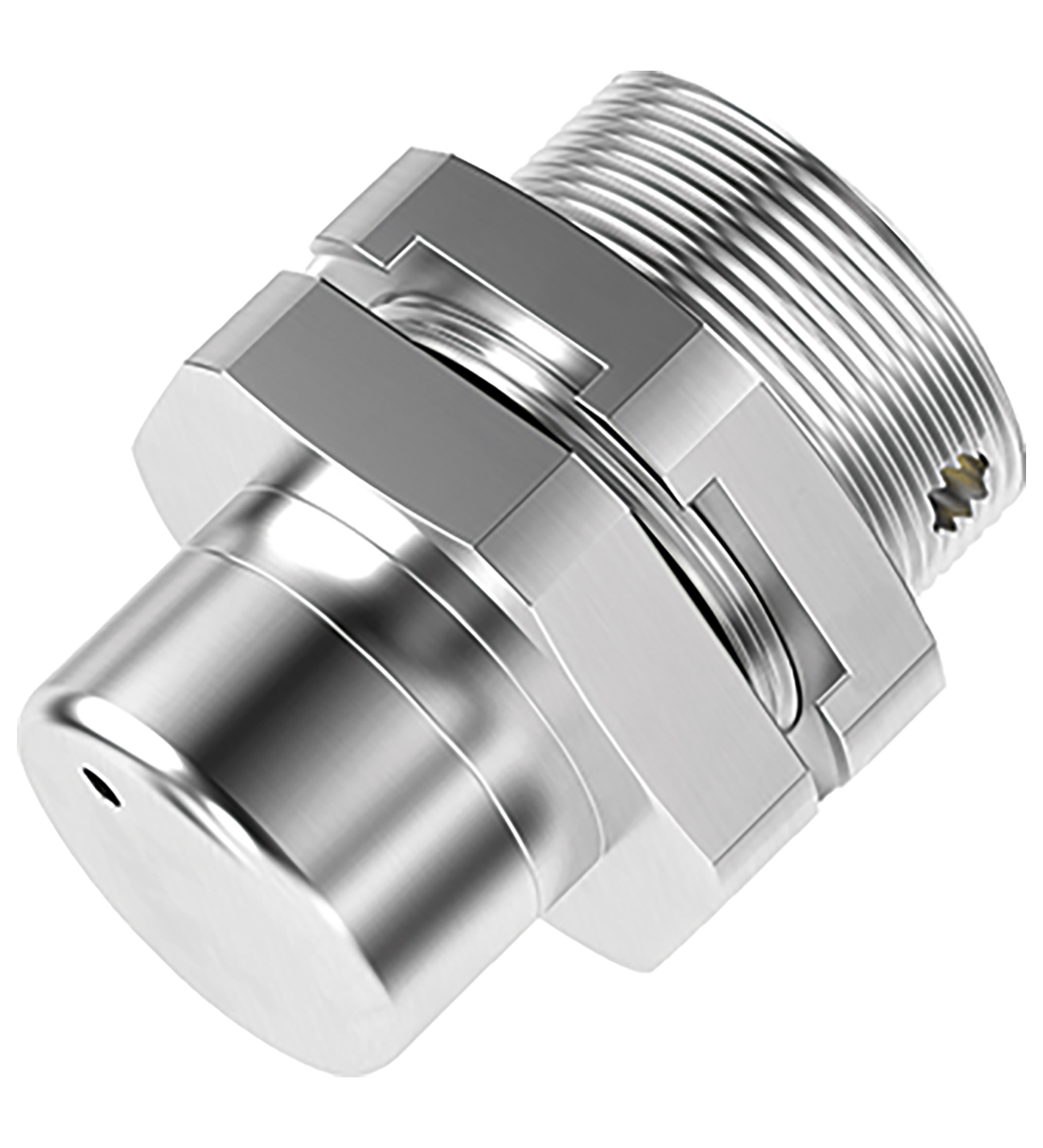

BDRVY*

Breather Drain, Metal. Brass nickel-plated or stainless steel, Ex eb and Ex tb certified, Metric and NPT versions available, Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22, Degree of pr...

Breather Drain, Metal. Brass nickel-plated or stainless steel, Ex eb and Ex tb certified, Metric and NPT versions available, Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22, Degree of protection IP66, Ambient temperature: -60 ... 85 °C (-76 ... 185 °F) <BR>washer gasket: -50 ... 80 °C (-58 ... 176 °F), Thread size (TD): M20 or NPT 1/2'' or NPT 3/4'', Breather drain: brass nickel-plated or AISI 316L (1.4404) stainless steel, Marking: [exsign] II 2 GD <BR>Ex eb IIC Gb <BR>Ex tb IIIC Db. Thread type: metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1. Thread size (TD): M20 or NPT 1/2'' or NPT 3/4''. Degree of protection: IP66. Material: . Finish: inherent color silver. Breather drain: brass nickel-plated or AISI 316L (1.4404) stainless steel. Washer gasket: aramid fibers bonded with NBR. O-Ring: silicone. Mass: see data table. Dimensions: see data table. Tightening torque: see data table. Ambient temperature: -60 ... 85 °C (-76 ... 185 °F) washer gasket: -50 ... 80 °C (-58 ... 176 °F). EU-type examination certificate: IMQ 13 ATEX 030X. Marking: II 2 GD Ex eb IIC Gb Ex tb IIIC Db. UL approval: . cULus: E350312 tested to UL 508A E350312 tested to CSA C22.2. IECEx approval: IECEx IMQ 14.0003X. UKCA approval: CML 21 UKEX 3475X. Degree of protection: EN 60079-0. CE marking: 0722. Delivery quantity: see datasheets of variants. Scope of delivery: K01 - metric variants, individual component: Breather Drain , washer gasket , locknut , Brief instructions K01 - NPT variants, individual component: Breather Drain , locknut , Brief instructions Knn - packing unit with multiple components: Breather Drain , Locknuts , Brief instructions (1 copy). Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
