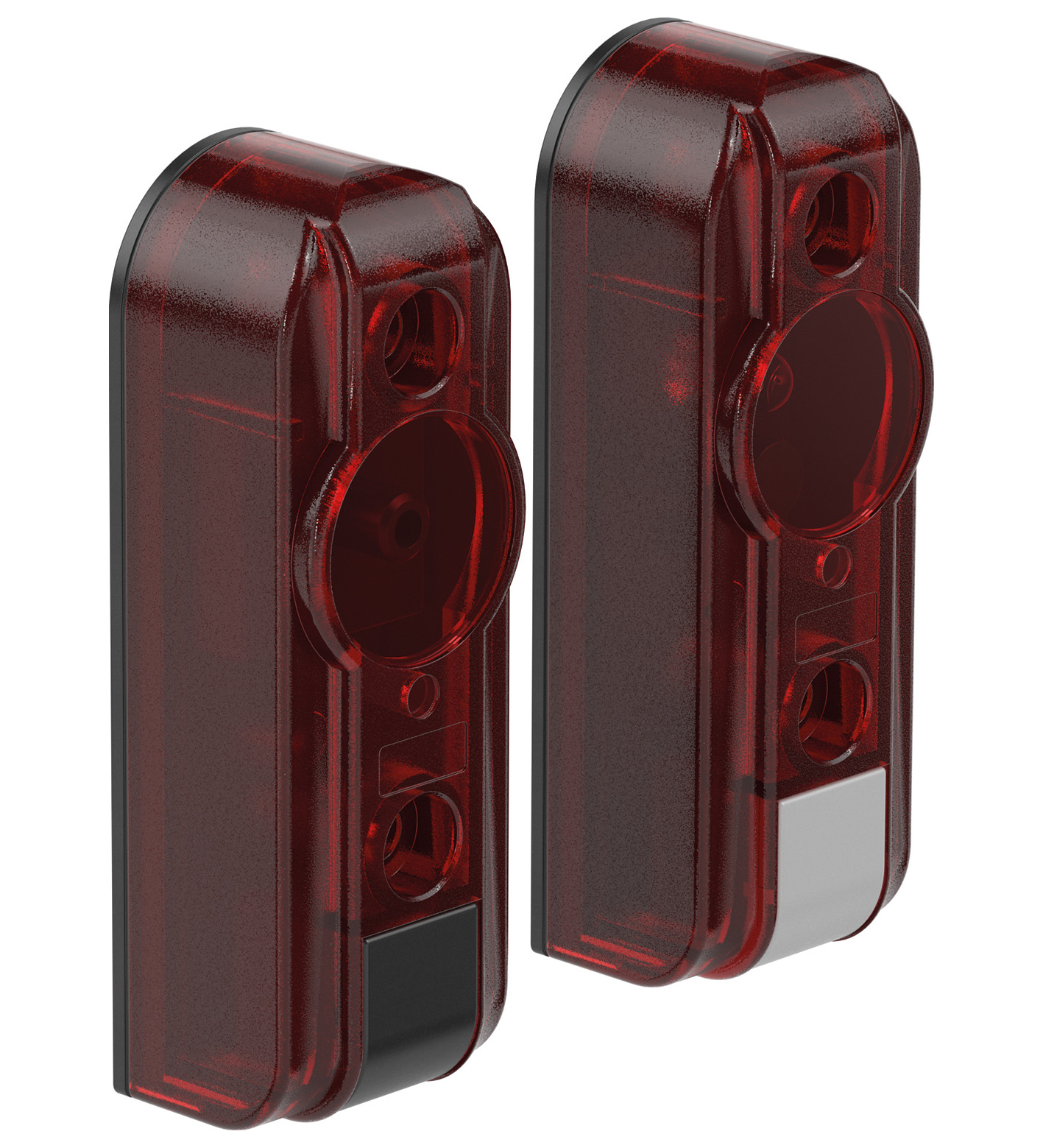

BILIX 10-7M-SET

Thru-beam sensor. Low space requirement and easy mounting in places with limited access, 2-wire sensor, conforms to UL-325 regarding ambient light test and swing test, Contamination indicator, Constru...

Thru-beam sensor. Low space requirement and easy mounting in places with limited access, 2-wire sensor, conforms to UL-325 regarding ambient light test and swing test, Contamination indicator, Construction type(S2): Rectangular type, Light source: IRED, Light type: infrared, Output type: transistor output, Switching type: light-on, Signal output: 2-wire, modulated output voltage, period = 3.05 ms, Tlow = 0.5 ms, saturation voltage < 3 V, Degree of protection: IP50 in accordance with EN60529. Emitter: BILIX10-T.. Receiver: BILIX10-R.. Effective detection range: 1.5 ... 7 m. Threshold detection range: 10 m. Number of protective field beams: 1. Light source: IRED. Light type: infrared. Marking: CE. Opening angle: Emitter: approx. 15 ° Receiver: approx. 24 ° with daylight blocking filter. Optical face: frontal. Ambient light limit: 100000 Lux. Operation indicator: Emitter: LED yellow lights up Receiver: LED yellow lights up. Function indicator: Emitter: LED yellow lights up when light beam is free LED red lit when the light beam is interrupted. Stability alarm indicator: Emitter: yellow LED flashes when visibility is poor (pollution indicator). Operating voltage: 20 ... 28 V. Operating current: max. 20 mA at 24 V DC. Time delay before availability: < 350 ms. Output type: transistor output. Switching type: light-on. Signal output: 2-wire, modulated output voltage, period = 3.05 ms, Tlow = 0.5 ms, saturation voltage < 3 V. Response time: Light beam unobstructed to light beam interrupted: 20 ms Light beam interrupted to light beam unobstructed: 100 ms. Load resistor: 330 ... 470 Ω. Product standard: EN 61000-6-2, EN 61000-6-3. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -30 ... 75 °C (-22 ... 167 °F). Degree of protection: IP50 in accordance with EN60529. Connection: screw terminals for max. 1.5 mm2. Mass: 23 g. Dimensions: . Height75 mmWidth25 mmDepth22 mm: . Height: 75 mm. Width: 25 mm. Depth: 22 mm

Brand	Pepperl Fuchs
Lifecycle status	active
