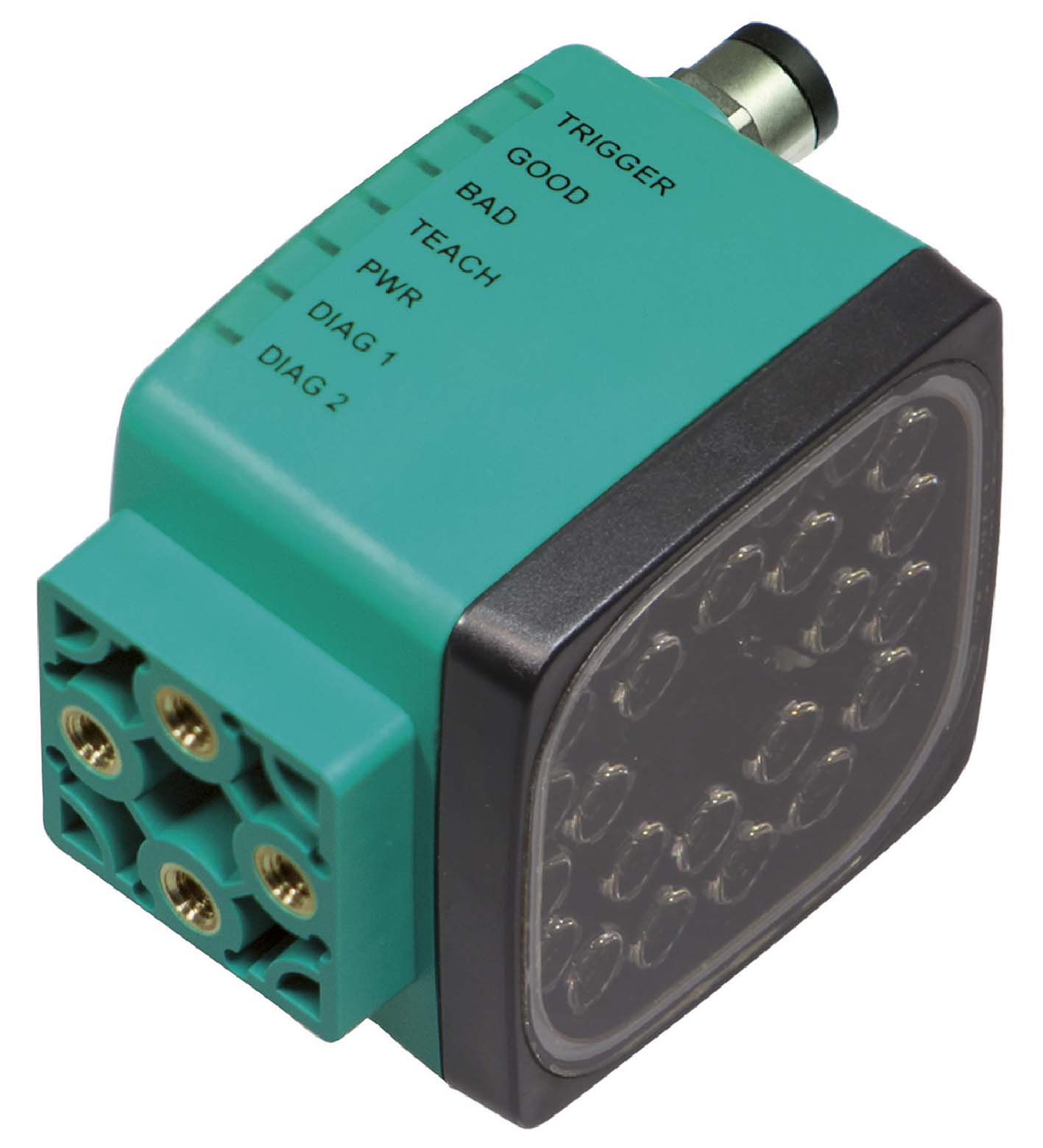

BIS510P-F201A-60

Vision Sensor. Sheet inspection sensor for monitoring print by comparing stored images or barcode evaluation. Light type: Integrated LED lightning (white). Symbologies: 2/5 interleaved, Code13, Code39...

Vision Sensor. Sheet inspection sensor for monitoring print by comparing stored images or barcode evaluation. Light type: Integrated LED lightning (white). Symbologies: 2/5 interleaved, Code13, Code39, Code128, Pharmacode. Object size: 25 mm x 25 mm. Read distance: 52 mm. Depth of focus: ± 5 mm. Reading field: 65 mm x 40 mm. Evaluation frequency: 10 Hz. Target velocity: triggered max. 4 m/s. Camera: . TypeCMOS , Global shutterNumber of pixels752 x 480 pixelsGray scale256Image recordingreal-time , Program-controlled or triggered externally: . Type: CMOS , Global shutter. Number of pixels: 752 x 480 pixels. Gray scale: 256. Image recording: real-time , Program-controlled or triggered externally. Operation indicator: LED green: Ready for operation. Control elements: 2 x Button. LED indication: Trigger, Good, Bad, Teach, Diag1, Diag2, PWR. Operating voltage: 24 V DC ± 15% , PELV. No-load supply current: max. 250 mA. Power consumption: 6 W. Interface type: Ethernet. Protocol: TCP/IP. Transfer rate: 100 MBit/s. Cable length: max. 30 m. Input voltage: to be applied externally 24 V ± 15% PELV. Number/Type: 1 trigger input1 teach input2 input (IN1, IN2). Input current: approx. 2 mA at 24 V DC. Switching threshold: low: < 10 V, high: > 15 V. Cable length: max. 30 m. Number/Type: Teach active, Good, Bad, Ready. Switching type: PNP , short-circuit/overload protected. Switching voltage: to be applied externally 24 V ± 15 % PELV. Switching current: max. 100 mA each output. Cable length: max. 30 m. Standard conformity: . Noise immunityEN 61326-1Emitted interferenceEN 61000-6-4Degree of protectionEN 60529Photobiological safetyRisk group 1 according to IEC 62471: . Noise immunity: EN 61326-1. Emitted interference: EN 61000-6-4. Degree of protection: EN 60529. Photobiological safety: Risk group 1 according to IEC 62471. Approvals: CE. Ambient temperature: 0 ... 45 °C (32 ... 113 °F). Storage temperature: -20 ... 60 °C (-4 ... 140 °F). Relative humidity: 80 % , noncondensing. Shock resistance: < 50 g. Vibration resistance: < 3 G , 11 ... 200 Hz. Degree of protection: IP67. Connection: 8-pin, M12x1 connector, standard (supply+IO) ,5-pin, M12x1 socket, standard (IO) ,4-pin, M12x1 socket, D-coded (LAN). Material: . HousingPC/ABSOptical facePlastic pane: . Housing: PC/ABS. Optical face: Plastic pane. Installation: 4 x M6 threading. Mass: approx. 160 g. Dimensions: . Height tolerance± 0.3 mmWidth70 mm: . Height tolerance: ± 0.3 mm. Width: 70 mm

Brand	Pepperl Fuchs
Lifecycle status	active
