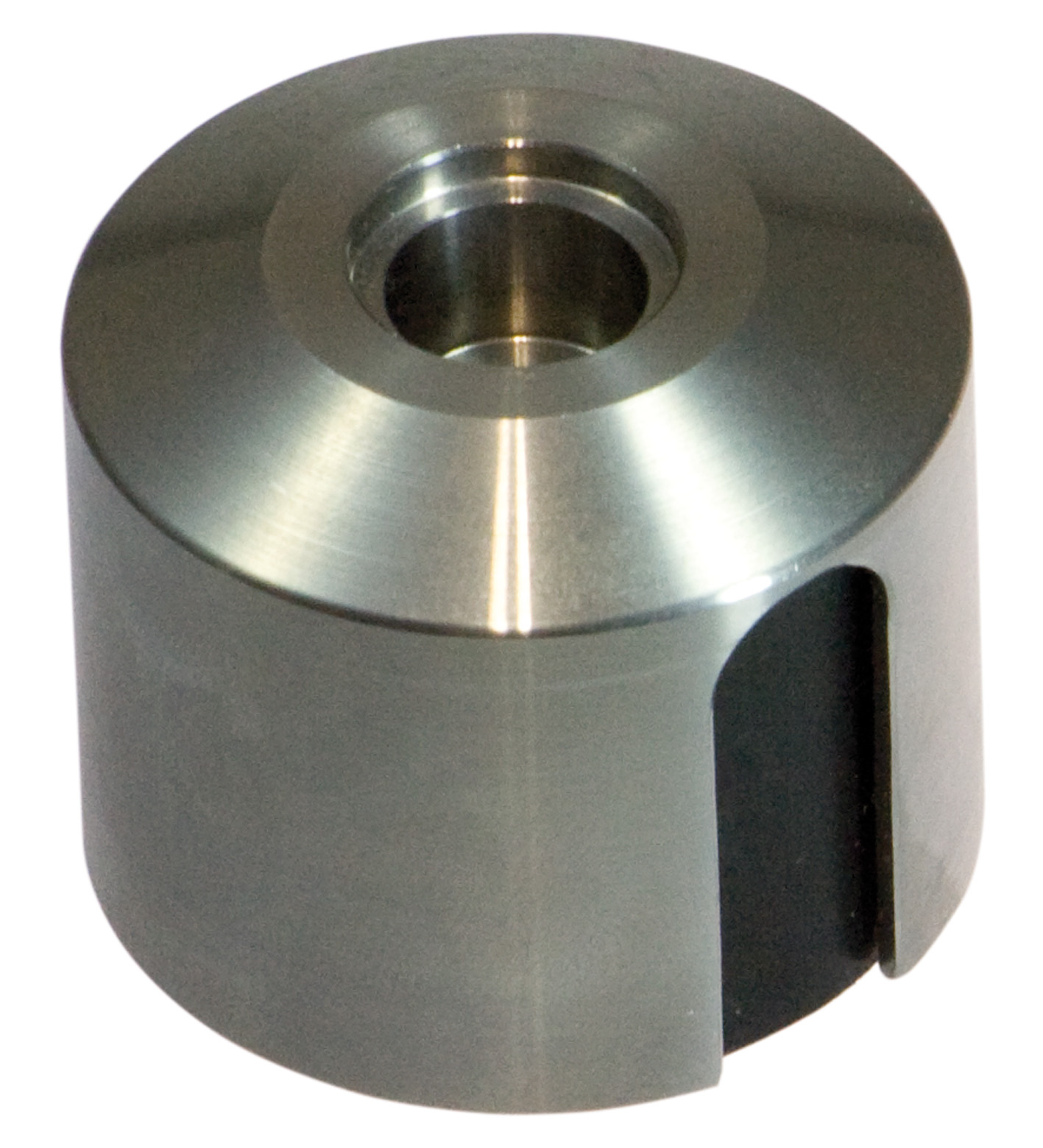

BT32XAS

Activator. Ring diameter: max. 40 mm. Spring ring height: max. 6 mm. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Shaft diameter: < 31 mm. Shaft height: 20 mm. Mounting hole pattern: 30 x 80 m...

Activator. Ring diameter: max. 40 mm. Spring ring height: max. 6 mm. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Shaft diameter: < 31 mm. Shaft height: 20 mm. Mounting hole pattern: 30 x 80 mm. Material: . Housing1.4057Stopper capPBT (1 unit black)Mounting screwStainless steel 1.4305 / AISI 303: . Housing: 1.4057. Stopper cap: PBT (1 unit black). Mounting screw: Stainless steel 1.4305 / AISI 303. Mass: 200 g. Tightening torque, fastening screws: ≤ 1.5 Nm. Dimensions: . Height33 mmDiameter40 mm: . Height: 33 mm. Diameter: 40 mm

Brand	Pepperl Fuchs
Lifecycle status	active
