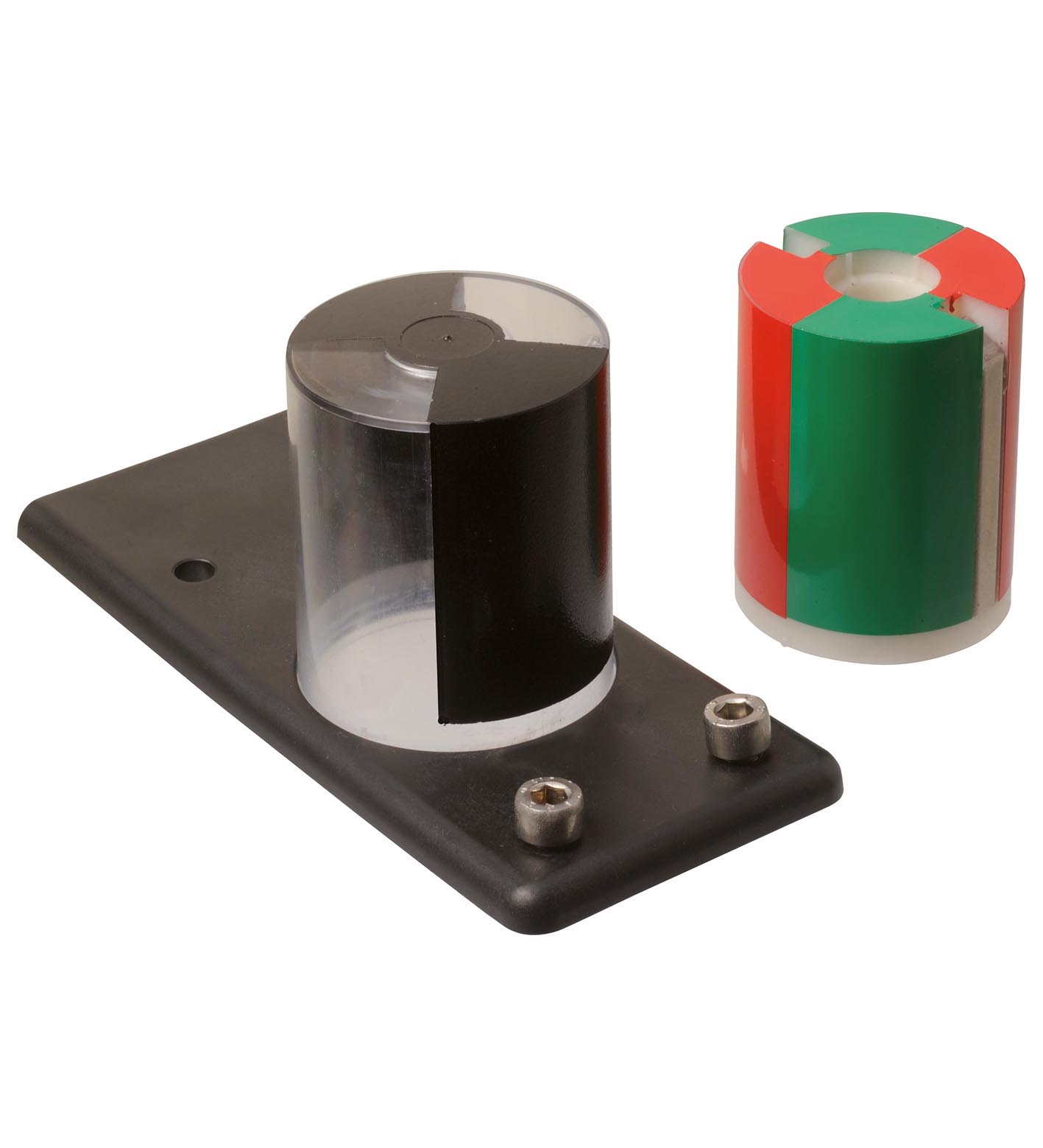

BT43-RG-01

Activator. Ring diameter: max. 32 mm. Valve status indicator: red = CLOSEDgreen = OPEN. Standard conformity: . StandardsVDI / VDE 3845: . Standards: VDI / VDE 3845. Ambient temperature: -25 ... 70 °C...

Activator. Ring diameter: max. 32 mm. Valve status indicator: red = CLOSEDgreen = OPEN. Standard conformity: . StandardsVDI / VDE 3845: . Standards: VDI / VDE 3845. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Shaft diameter: ≤ 31 mm. Shaft height: 20 mm and 30 mm. Mounting hole pattern: 30 x 80 mm. Material: . HousingPCActuatorPBTSpacer elementPPMounting screwStainless steel 1.4305 / AISI 303 , 2 cylinder head screws ( Mounting plate )Activation targetStainless steel 1.4305 / AISI 303 (integrated): . Housing: PC. Actuator: PBT. Spacer element: PP. Mounting screw: Stainless steel 1.4305 / AISI 303 , 2 cylinder head screws ( Mounting plate ). Activation target: Stainless steel 1.4305 / AISI 303 (integrated). Mass: 107 g. Dimensions: . Height52.8 mmWidth52 mmLength120 mm: . Height: 52.8 mm. Width: 52 mm. Length: 120 mm. Scope of delivery: 1 Activator for F25 series 1 Spacer element for 20 mm shaft height 1 Spacer element for 30 mm shaft height 1 Protective Cover 1 Mounting plate with 2 cylinder head screws M5 X 13 2 cylinder head screws M5x30 for F25 mounting 2 cylinder head screws M5x45 for F25K mounting

Brand	Pepperl Fuchs
Lifecycle status	active
