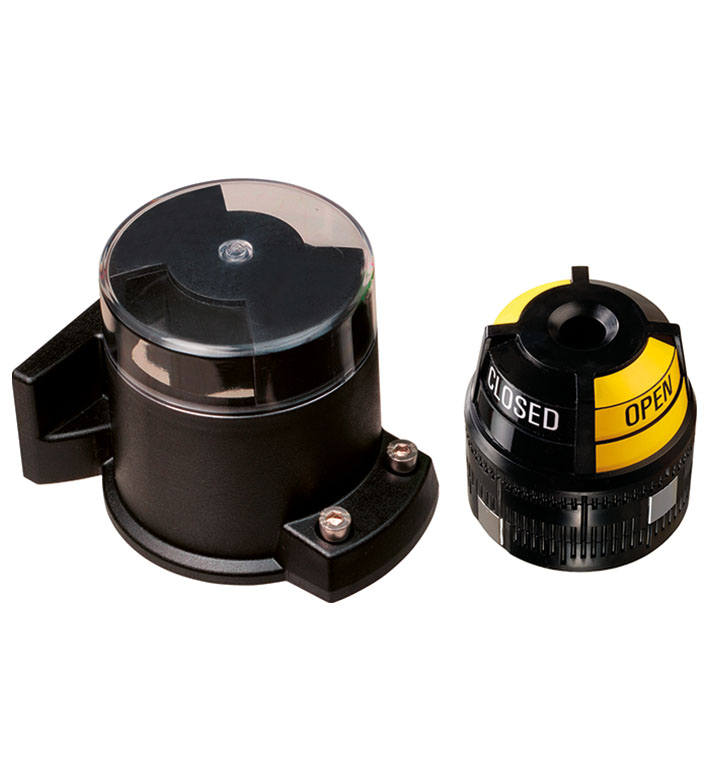

BT65-F31-BY-EN

Activator. Ring diameter: max. 65 mm. Spring ring height: max. 6 mm. Valve status indicator: black = CLOSEDyellow = OPEN. Standard conformity: . StandardsVDI / VDE 3845: . Standards: VDI / VDE 3845. A...

Activator. Ring diameter: max. 65 mm. Spring ring height: max. 6 mm. Valve status indicator: black = CLOSEDyellow = OPEN. Standard conformity: . StandardsVDI / VDE 3845: . Standards: VDI / VDE 3845. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Shaft diameter: ≤ 49 mm. Shaft height: 20 mm and 30 mm. Mounting hole pattern: 30 x 80 mm. Material: . HousingPCActuatorPASpacer diskPA (1 unit, 10 mm strong)Mounting screwStainless steel 1.4401 / AISI 316Activation targetStainless steel 1.4305 / AISI 303 (integrated): . Housing: PC. Actuator: PA. Spacer disk: PA (1 unit, 10 mm strong). Mounting screw: Stainless steel 1.4401 / AISI 316. Activation target: Stainless steel 1.4305 / AISI 303 (integrated). Tightening torque, fastening screws: ≤ 1.5 Nm. Scope of delivery: 1 screw M6 x 301 screw M6 x 40 2 screws M5 x 12 1 Activator for F31K2 series 1 Distance disc 1 Protective Cover 2 captive Fixing screws M5 X 13

Brand	Pepperl Fuchs
Lifecycle status	active
