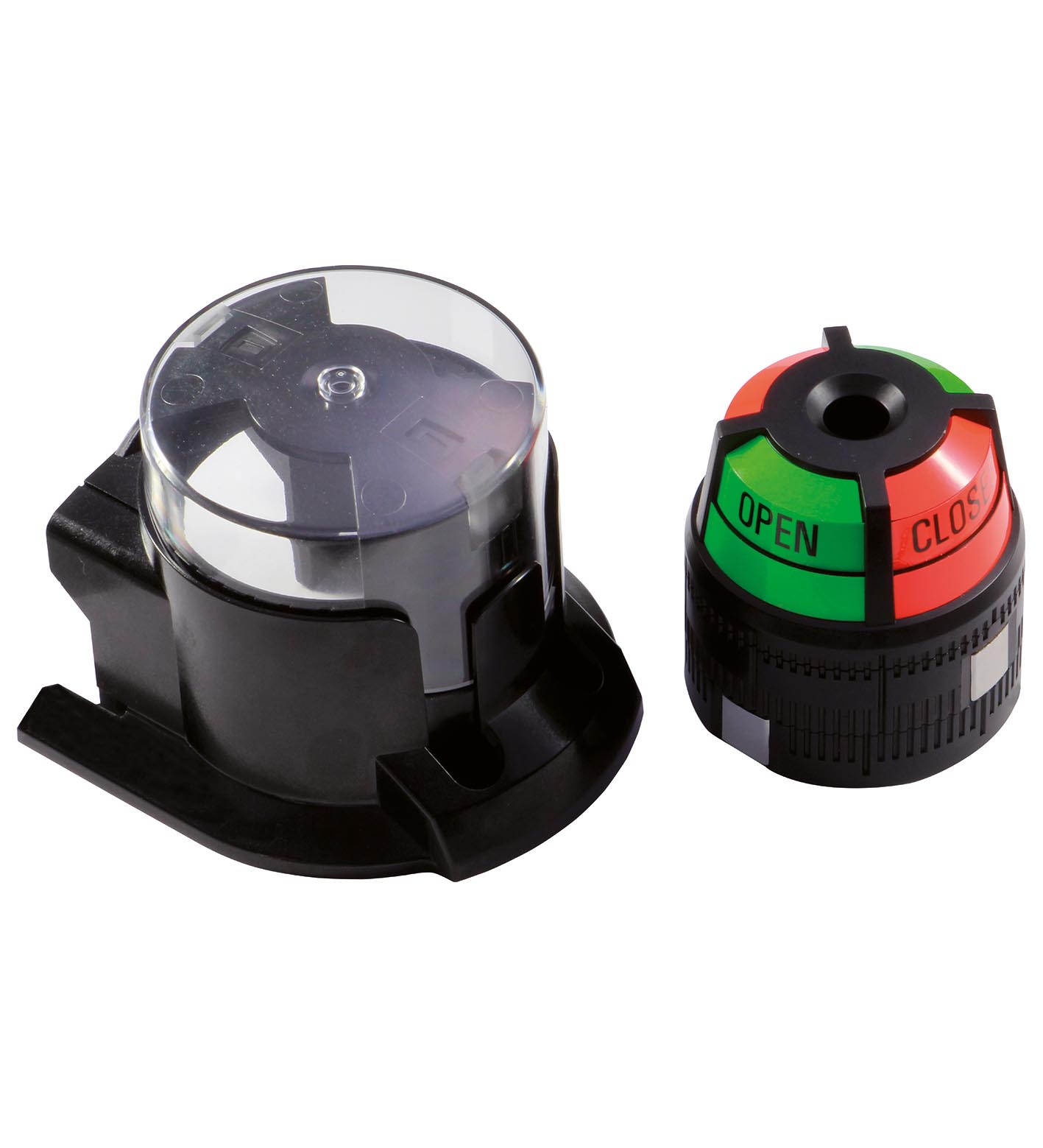

BT65-F31K2-RG-EN-01

Activator. Ring diameter: max. 65 mm. Spring ring height: max. 6 mm. Valve status indicator: red = CLOSEDgreen = OPEN. Standard conformity: . StandardsVDI / VDE 3845: . Standards: VDI / VDE 3845. Ambi...

Activator. Ring diameter: max. 65 mm. Spring ring height: max. 6 mm. Valve status indicator: red = CLOSEDgreen = OPEN. Standard conformity: . StandardsVDI / VDE 3845: . Standards: VDI / VDE 3845. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Shaft diameter: ≤ 49 mm. Shaft height: 20 mm and 30 mm. Mounting hole pattern: 30 x 80 mm. Material: . HousingPCActuatorPASpacer diskPA (1 unit, 10 mm strong)Mounting screwStainless steel 1.4401 / AISI 316Activation targetStainless steel 1.4305 / AISI 303 (integrated): . Housing: PC. Actuator: PA. Spacer disk: PA (1 unit, 10 mm strong). Mounting screw: Stainless steel 1.4401 / AISI 316. Activation target: Stainless steel 1.4305 / AISI 303 (integrated). Tightening torque, fastening screws: ≤ 1.5 Nm. Scope of delivery: 1 screw M6 x 301 screw M6 x 40 1 Activator for F31K2 series 1 Distance disc 1 Protective Cover Fixing screws

Brand	Pepperl Fuchs
Lifecycle status	active
