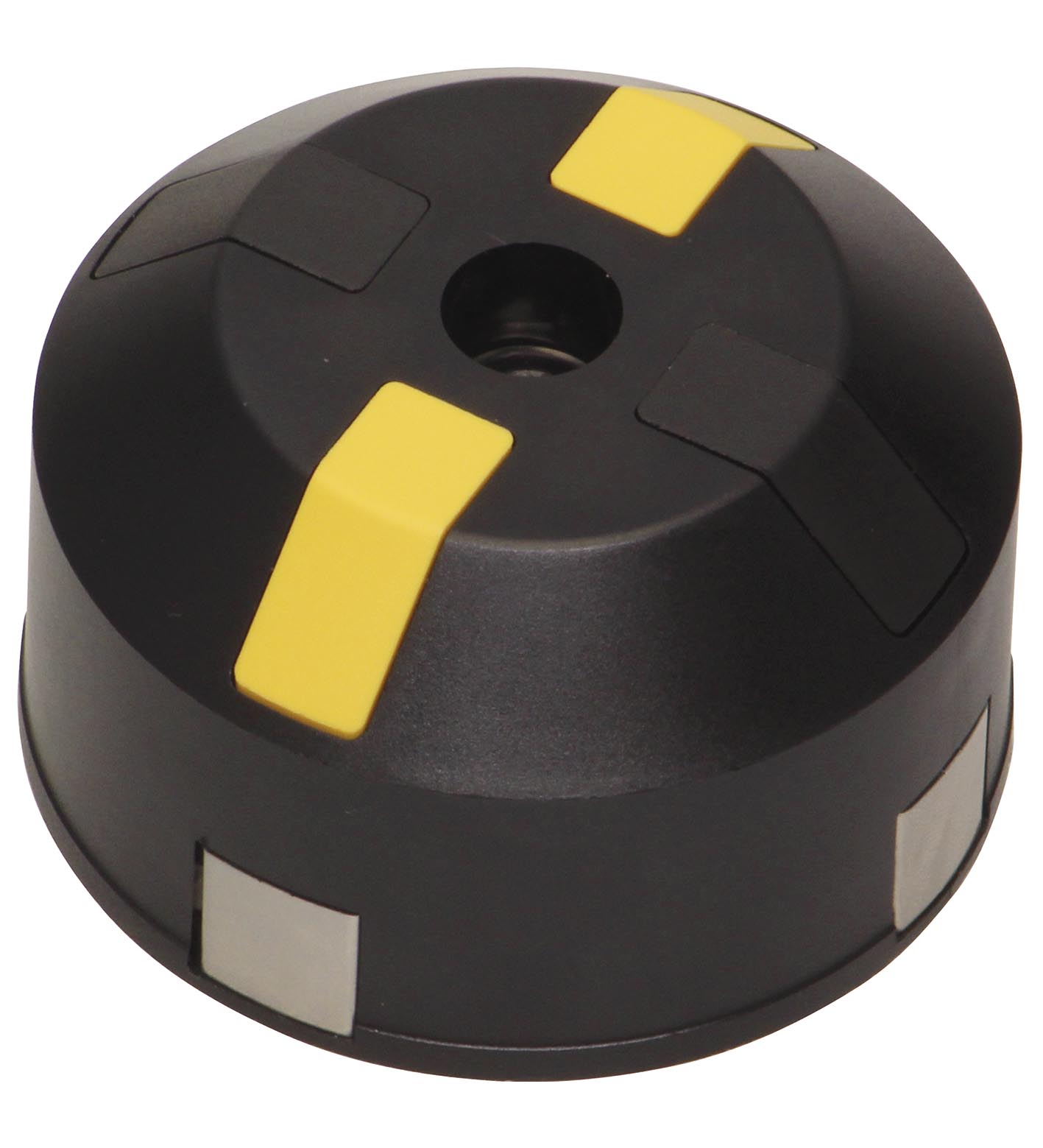

BT65A

Activator. Ring diameter: max. 65 mm. Spring ring height: max. 6 mm. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Shaft diameter: < 58 mm. Shaft height: 20 mm and 30 mm. Mounting hole pattern:...

Activator. Ring diameter: max. 65 mm. Spring ring height: max. 6 mm. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Shaft diameter: < 58 mm. Shaft height: 20 mm and 30 mm. Mounting hole pattern: 30 x 80 mm. Material: . HousingMounting component: PASpacer diskPA (1 unit, 10 mm strong)Stopper capPE (1 unit black)Identification stopperPA (2 units yellow, 2 units black)Mounting screwfor activator: 1.4305 / AISI 303 (1 piece M6 x 25) for sensors - F31: 1.4305 / AISI 303 (2 pieces M5 x 16) (2 pieces M5 x 12)Activation targetStainless steel 1.4305 / AISI 303 (integrated): . Housing: Mounting component: PA. Spacer disk: PA (1 unit, 10 mm strong). Stopper cap: PE (1 unit black). Identification stopper: PA (2 units yellow, 2 units black). Mounting screw: for activator: 1.4305 / AISI 303 (1 piece M6 x 25) for sensors - F31: 1.4305 / AISI 303 (2 pieces M5 x 16) (2 pieces M5 x 12). Activation target: Stainless steel 1.4305 / AISI 303 (integrated). Mass: 40 g. Tightening torque, fastening screws: ≤ 1.5 Nm. Dimensions: . Height38.5 mmWidthDiameter65 mm: . Height: 38.5 mm. Width: . Diameter: 65 mm

Brand	Pepperl Fuchs
Lifecycle status	active
