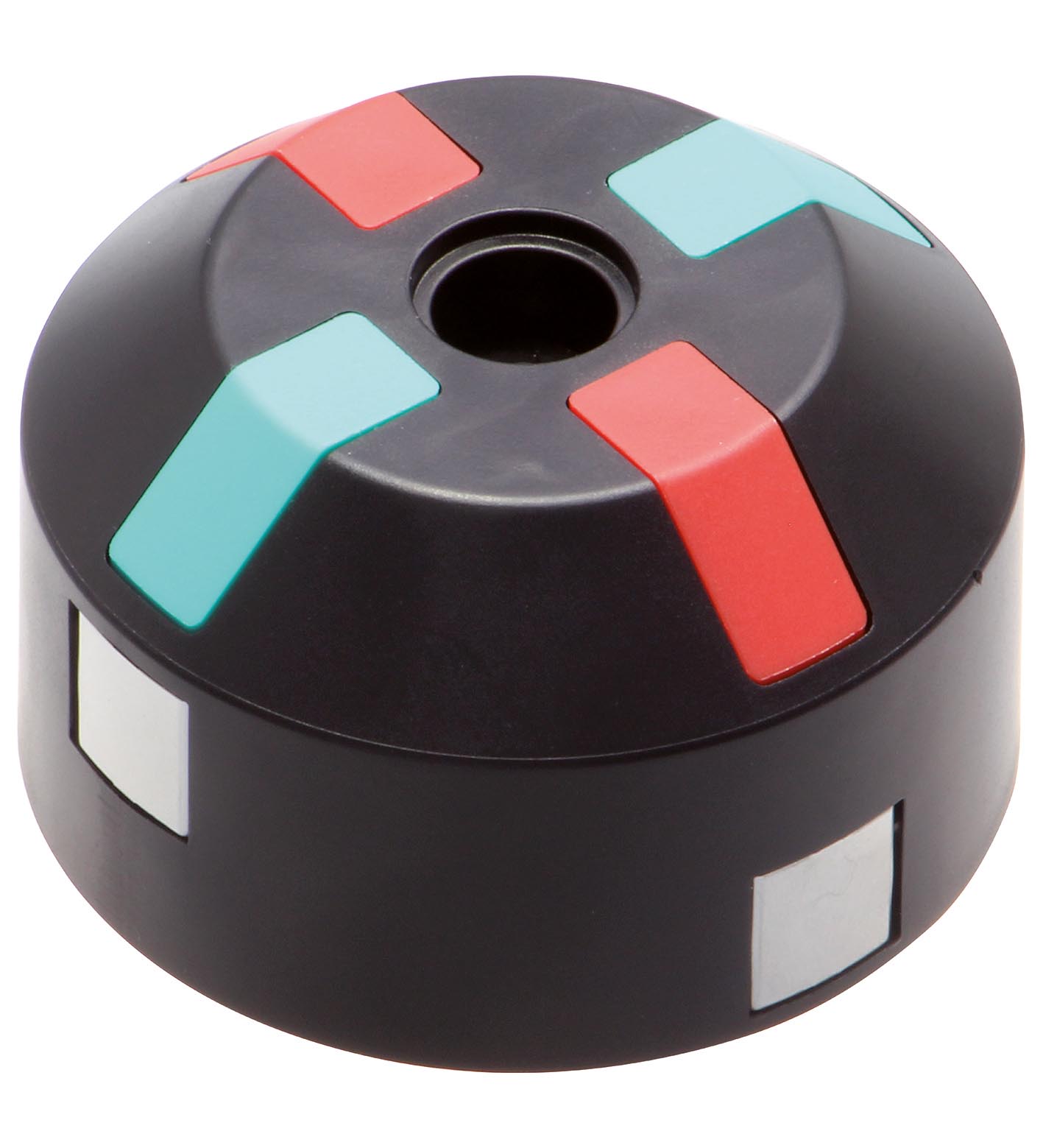

BT65A-Y223199

Activator. Ring diameter: max. 65 mm. Spring ring height: max. 6 mm. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Shaft diameter: < 58 mm. Shaft height: 20 mm and 30 mm. Mounting hole pattern:...

Activator. Ring diameter: max. 65 mm. Spring ring height: max. 6 mm. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Shaft diameter: < 58 mm. Shaft height: 20 mm and 30 mm. Mounting hole pattern: 30 x 80 mm. Material: . HousingPASpacer diskPA (1 unit, 10 mm strong)Stopper capPBT (1 unit black)Identification stopperPP (2 green, 2 red)Mounting screwfor activator: Stainless steel 1.4305 / AISI 303 (1 piece M6 x 25) for sensors - F31: Stainless steel 1.4305 / AISI 303 ( (2 pieces M5 x 12)Activation targetStainless steel 1.4305 / AISI 303 (integrated): . Housing: PA. Spacer disk: PA (1 unit, 10 mm strong). Stopper cap: PBT (1 unit black). Identification stopper: PP (2 green, 2 red). Mounting screw: for activator: Stainless steel 1.4305 / AISI 303 (1 piece M6 x 25) for sensors - F31: Stainless steel 1.4305 / AISI 303 ( (2 pieces M5 x 12). Activation target: Stainless steel 1.4305 / AISI 303 (integrated). Tightening torque, fastening screws: ≤ 1.5 Nm

Brand	Pepperl Fuchs
Lifecycle status	active
