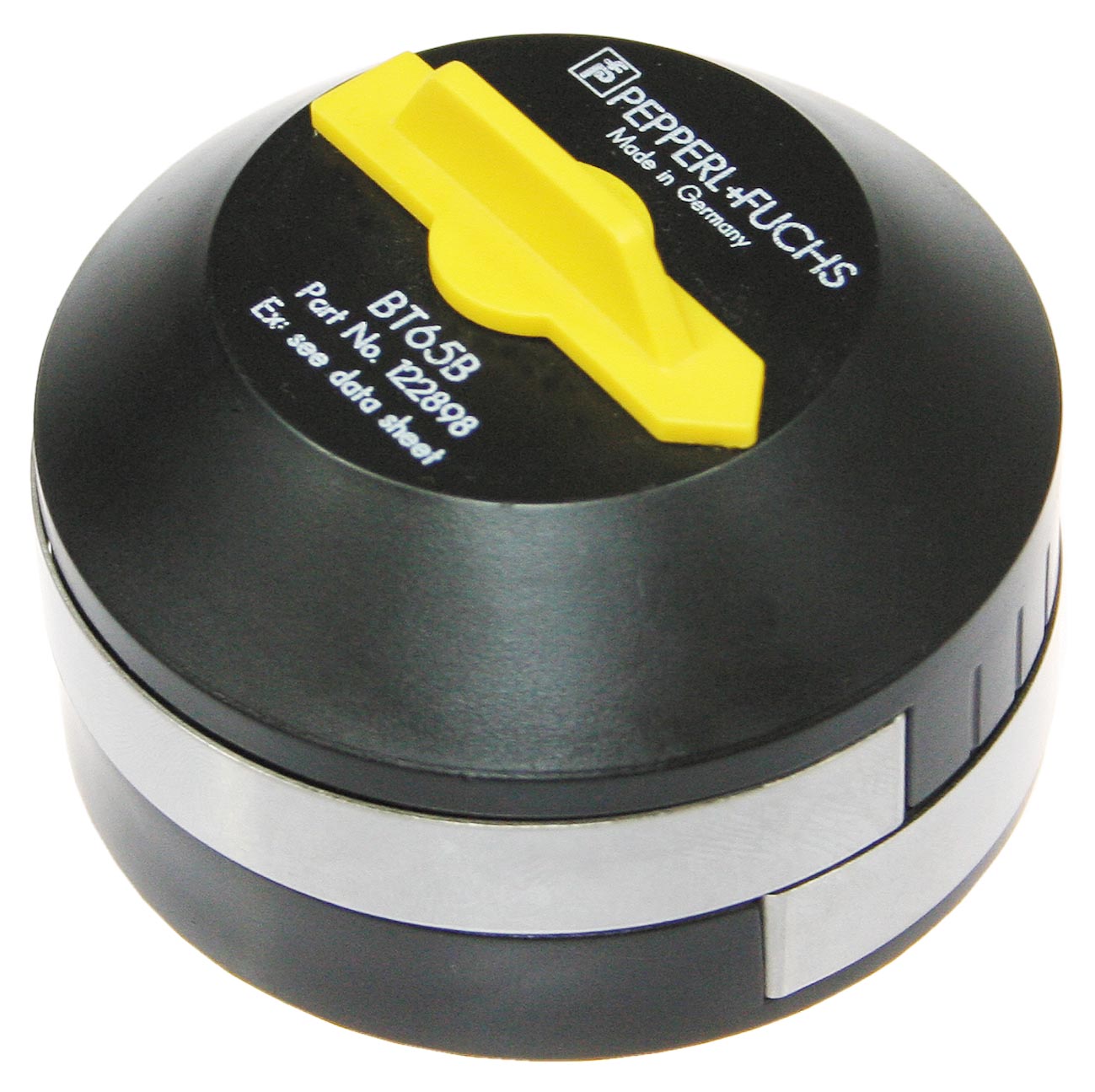

BT65B

Activator. Ring diameter: max. 57 mm. Spring ring height: max. 6 mm. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Shaft diameter: < 53 mm. Shaft height: 20 mm. Mounting hole pattern: 30 x 80 m...

Activator. Ring diameter: max. 57 mm. Spring ring height: max. 6 mm. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Shaft diameter: < 53 mm. Shaft height: 20 mm. Mounting hole pattern: 30 x 80 mm. Material: . HousingPASpacer diskPA (1 unit, 10 mm strong)Identification stopperPP (1 unit)Mounting screwfor activator: 1.4305 / AISI 303 (1 piece M6 x 25) for sensors - F31: 1.4305 / AISI 303 (2 pieces M5 x 16) (2 pieces M5 x 12)Activation target1.4305 / AISI 3032 items 10x180°: . Housing: PA. Spacer disk: PA (1 unit, 10 mm strong). Identification stopper: PP (1 unit). Mounting screw: for activator: 1.4305 / AISI 303 (1 piece M6 x 25) for sensors - F31: 1.4305 / AISI 303 (2 pieces M5 x 16) (2 pieces M5 x 12). Activation target: 1.4305 / AISI 3032 items 10x180°. Dimensions: . Height40 mmDiameter65 mm: . Height: 40 mm. Diameter: 65 mm. Note: With a shaft height of 30 mm use the MH-BT65B adapter plate accessory.

Brand	Pepperl Fuchs
Lifecycle status	active
