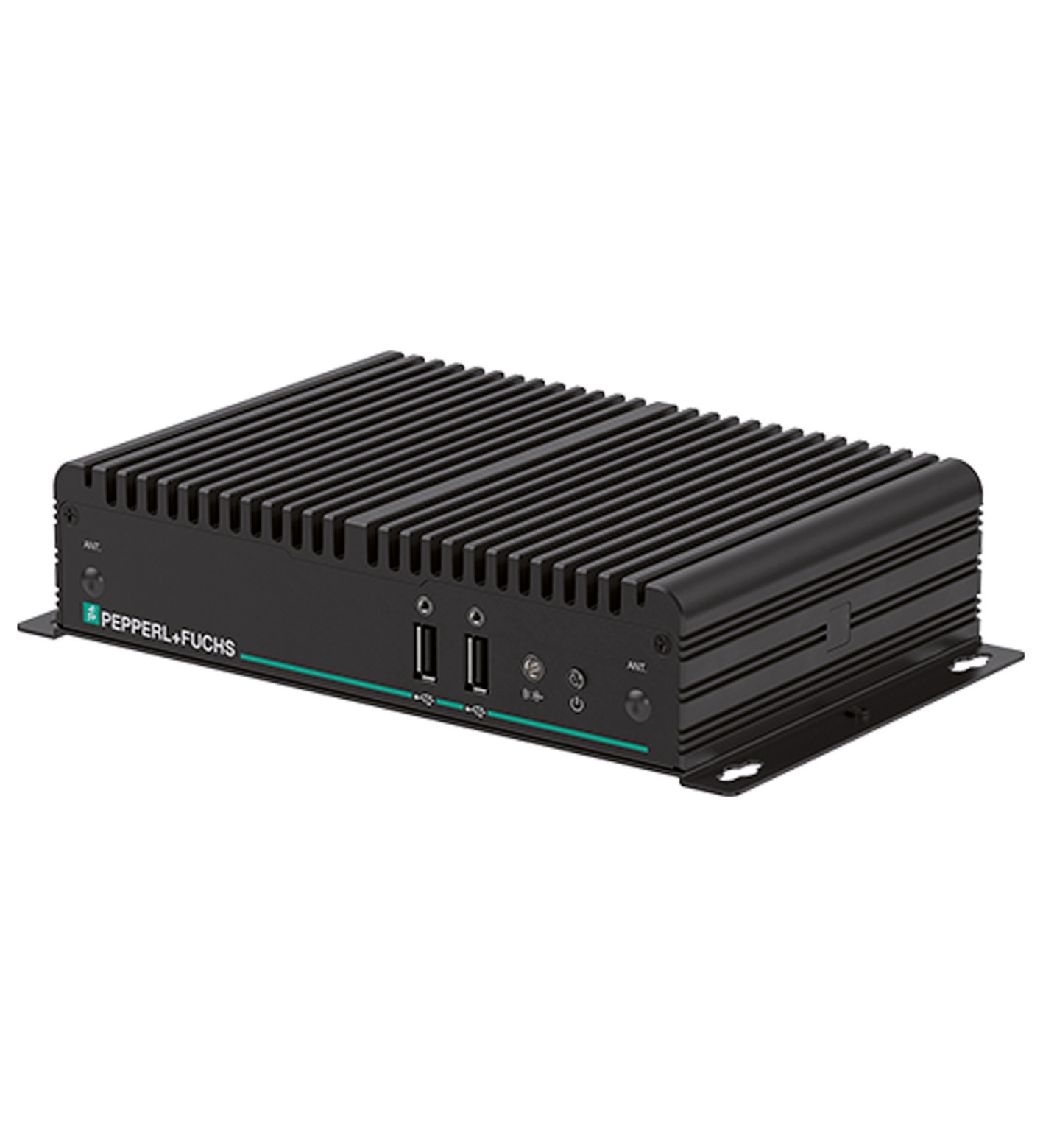

BTC12N-*
Industrial Box Thin Client. Industrial Box Thin Client, Industrial-grade box thin client for 24/7 operation, Long-term support with product availability for more than 5 years, Supports modern Ultra HD...
Industrial Box Thin Client. Industrial Box Thin Client, Industrial-grade box thin client for 24/7 operation, Long-term support with product availability for more than 5 years, Supports modern Ultra HD (4K) setups with 60 Hz, Compact footprint, Option for Class I/Div 2 hazardous locations, Option for ACP ThinManager "Ready". Processor: Intel® Apollo Lake N4200 series. RAM: 4 GB DDR3L Optional:PC3: 8 GB DDR3LPC4: 8 GB DDR3L. Mass storage: 32 GB eMMC MLCOptional:PC2: additional 128 GB SSDPC3: additional 240 GB SSDPC4: additional 480 GB SSD. Power supply: Input voltage: 16 ... 28 V DC Input current: max. 2 A - 1 A Input via 2.5 mm power socket (with double insulation from the power supply). Interface type: front: 2 x USB 2.0, power button, audio line out Back side: 2 x 1000Base-T Ethernet, 2 x DisplayPort™ 1.2 (supports Ultra HD with 4K at 60 Hz), 1 x DC (DC jack 5.5 x 2.5 mm with lock mechanism), 2 x USB 3.1 (Super Speed) , 1 x RS-232/RS-485 with DB-9 connector. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 EN 55032:2015, AC:2016 EN 55035:2017: . Directive 2014/30/EU: EN 61326-1:2013 EN 55032:2015, AC:2016 EN 55035:2017. RoHS: . Directive 2011/65/EU (RoHS)EN 50581:2012-09: . Directive 2011/65/EU (RoHS): EN 50581:2012-09. Operating system: VisuNet RM Shell 6.x (based on Microsoft Windows 10 IoT Enterprise 2021 LTSC) Option TTR: ACP ThinManager Ready BIOS Option PC2: Windows 10 IoT LTSB Option: PC3 and PC4: Windows 10 IoT 2019 LTSC. Operating temperature: Temperature classes:N1: Industrial temperature grade 0°... 55° C (32 ... 131 °F)N0: Standard temperature grade -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 60 °C (-4 ... 140 °F). Relative humidity: ≤ 95 % at 40 °C (non-condensing acc. to EN 60068-2-78). Shock resistance: 40 g (11 ms) when operating. Vibration resistance: 3 grms 5 ... 500 Hz. Degree of protection: IP40. Mass: 1.32 kg. Dimensions: 216 mm x 130 mm x 47 mm. Mounting: Desktop or wall mounting, VESA mount (100 x 100 mm and 75 x 75 mm) and DIN-rail mounting via optional adapter. Note: passive cooling , no moving parts Power supply not included.. UL approval: Standard (GP): UL Listed for Canada and USA, E223772 (NRAQ, NRAQ7) (Ordinary Locations)Option D2: UL Listed for Canada and USA, E492874 (NRAG, NRAG7) (Hazardous Locations)
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
