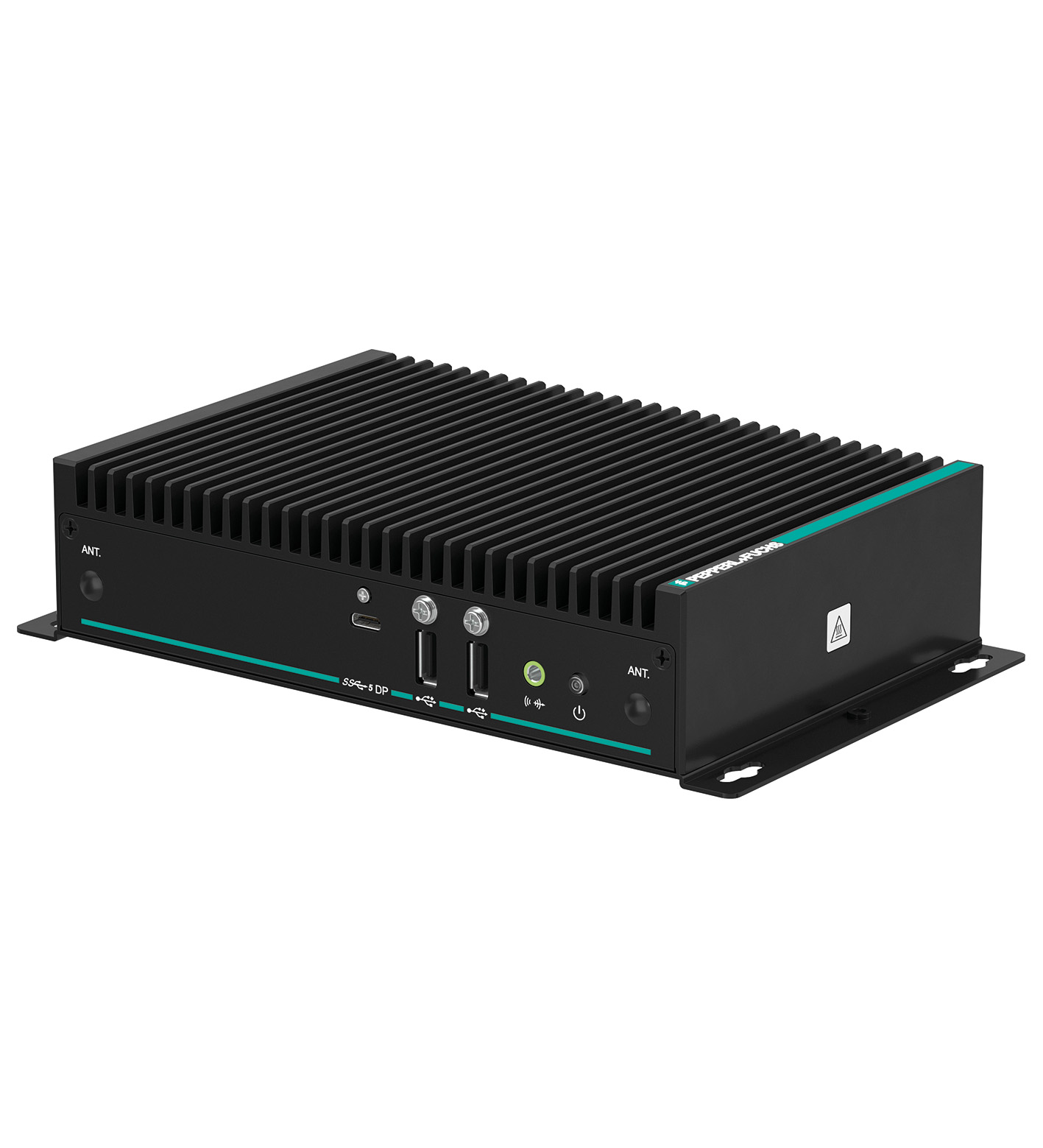

BTC22-*
Industrial Box Thin Client. Industrial Box Thin Client, Industrial-grade box thin client for 24/7 operation, Long-term support with product availability for more than 5 years, Supports up to two moder...
Industrial Box Thin Client. Industrial Box Thin Client, Industrial-grade box thin client for 24/7 operation, Long-term support with product availability for more than 5 years, Supports up to two modern Ultra HD (4K) monitors with 60 Hz, Compact footprint. Processor: Intel Atom x6413E. RAM: 8 GB DDR4. Mass storage: 64 GByte eMMC TLC. Power supply: Input voltage: 12 ... 28 V DC Input current: 1 A - 2 A Input via 2.5 mm power socket. Interface type: Front side:1x USB 3.2 Gen 1 w/ DP alt mode, Type C2x USB 2.0 Type A,power button,audio line out Back side:3x 1000Base-T Ethernet,2x DisplayPort 1.4,1x DC (DC jack 5.5 x 2.5 mm with lock mechanism),2x USB 3.2 Gen 1 Type A,1x RS-232/RS-485 with RJ45 connector. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 EN 55032:2015, AC:2016 EN 55035:2017: . Directive 2014/30/EU: EN 61326-1:2013 EN 55032:2015, AC:2016 EN 55035:2017. RoHS: . Directive 2011/65/EU (RoHS)EN 50581:2012-09: . Directive 2011/65/EU (RoHS): EN 50581:2012-09. Operating system: 1-: VisuNet RM Shell 6 (based on Windows® 10 IoT Enterprise LTSC 2021 x64) Optional:J-: IGEL OS 12 (based on Linux, pre-installed without licence) T-: ThinManager Ready. Operating temperature: 0 ... 55 °C (32 ... 131 °F). Storage temperature: -20 ... 60 °C (-4 ... 140 °F). Relative humidity: ≤ 95 % at 60 °C (non-condensing acc. to EN 60068-2-78). Shock resistance: 40 g (11 ms) when operating 80 g (11 ms) when not operating. Vibration resistance: 3 grms 5 ... 500 Hz. Degree of protection: IP40. Mass: 1.32 kg. Dimensions: 216 mm x 130 mm x 47 mm. Mounting: Desktop or wall mounting, VESA mount (100 x 100 mm and 75 x 75 mm) and DIN-rail mounting via optional adapter. Note: passive cooling , no moving parts Power supply not included.. UL approval: "UL Listed" for Canada and USA, E223772 (Ordinary Location). Approved for: CE (EN61326-1/ EN55032/ EN55035 Class A)FCC Class B and ICES-003 Issue 7
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
