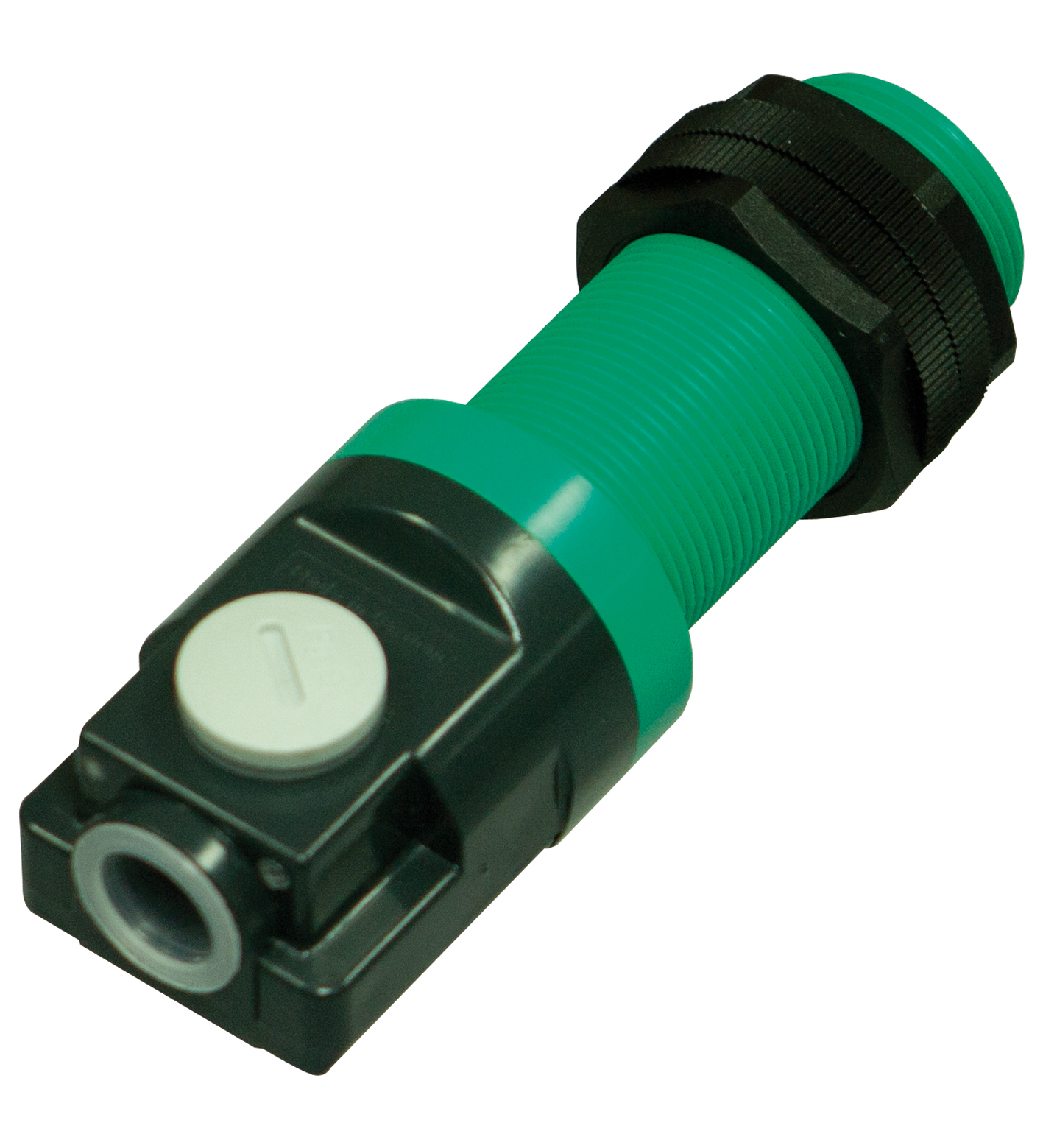

CBB10-30GKK-W

Capacitive sensor. Switching function: Normally open/closed (NO/NC), Output type: Two-wire, Installation: flush, Output polarity: AC, Output type: 2-wire, Thread mold: M30, Construction type: Cylindri...

Capacitive sensor. Switching function: Normally open/closed (NO/NC), Output type: Two-wire, Installation: flush, Output polarity: AC, Output type: 2-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 20 ... 250 V AC, Potentiometer: sensitivity adjustment, Type of voltage: AC, Connection type: screw terminals, Housing material: ABS, Degree of protection: IP67. Switching function: Normally open/closed (NO/NC). Output type: Two-wire. Rated operating distance: 10 mm. Installation: flush. Output polarity: AC. Assured operating distance: 0 ... 8.1 mm. Output type: 2-wire. Installation conditions: . A0 mmB0 mmC20 mmF40 mm: . A: 0 mm. B: 0 mm. C: 20 mm. F: 40 mm. Operating voltage: 20 ... 250 V AC. Switching frequency: 0 ... 50 Hz. Hysteresis: 2 ... 20 %. Voltage drop: ≤ 7 V. Operating current: 0 ... 500 mA. Off-state current: 0 ... 1.7 mA. Operating voltage indicator: LED, green. Switching state indicator: LED, red. Potentiometer: sensitivity adjustment. Standard conformity: . StandardsEN 60947-5-2: . Standards: EN 60947-5-2. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: screw terminals. Core cross section: up to 2.5 mm2. Housing material: ABS. Sensing face: ABS. Degree of protection: IP67. Dimensions: . Length115 mmDiameter30 mm: . Length: 115 mm. Diameter: 30 mm

Brand	Pepperl Fuchs
Lifecycle status	active
