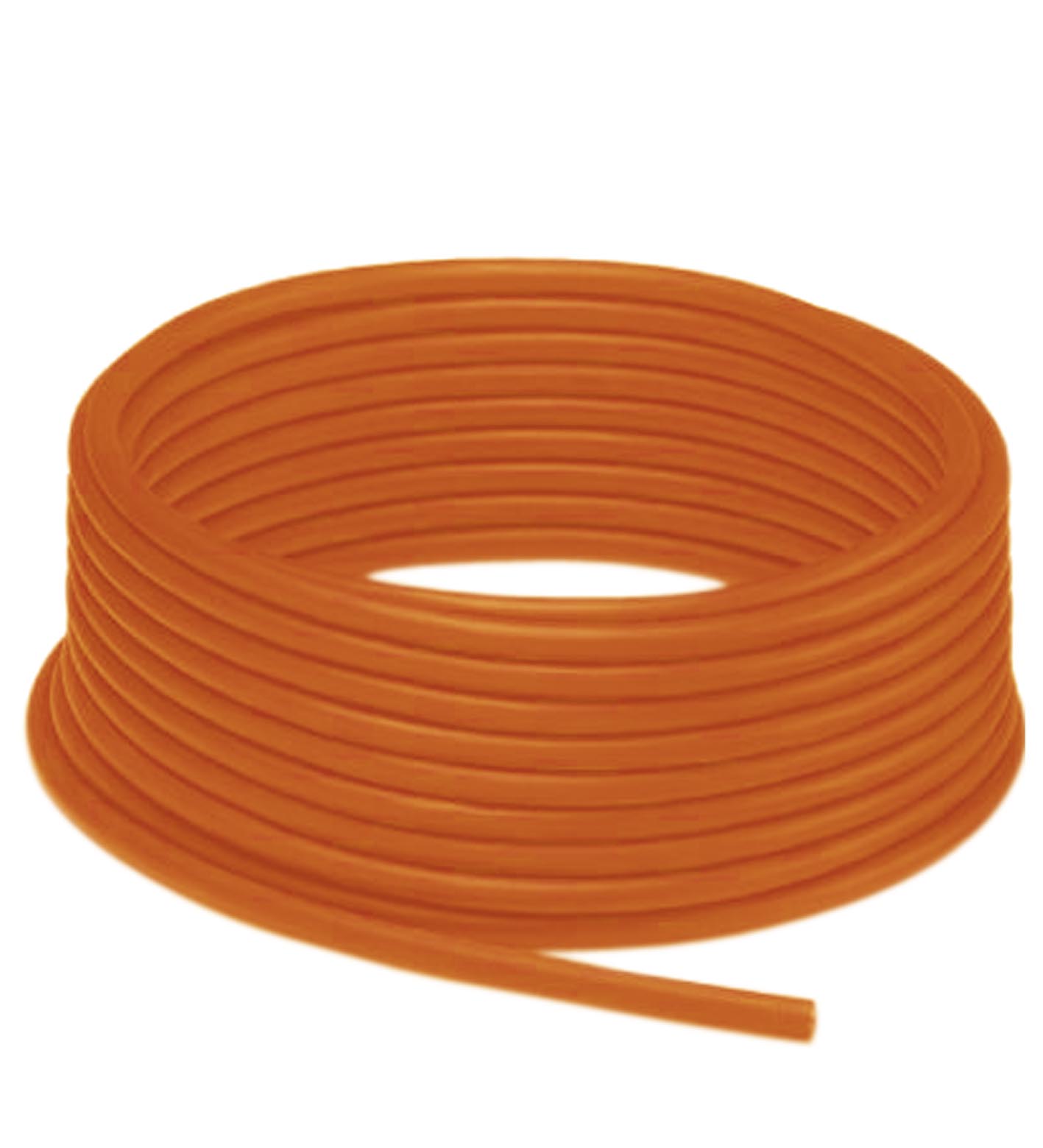

CBL-PUR-A-OR-04x034-100M

Bulk Raw Cable. Cable, PUR/PP, 4-core weld spatter resistant orange, UL approved, drag chain suitable, torsion resistant. Operating voltage: max. 300 V AC/DC. Flammability: UL 1581; DIN EN 60332-2-2....

Bulk Raw Cable. Cable, PUR/PP, 4-core weld spatter resistant orange, UL approved, drag chain suitable, torsion resistant. Operating voltage: max. 300 V AC/DC. Flammability: UL 1581; DIN EN 60332-2-2. Halogen-free: DIN VDE 0472-815 IEC 60754-1. Microbial resistance: DIN EN 50525-2-21 / DIN VDE 0282-10. Hydrolysis resistance: DIN EN 50525-2-21. UL approval: AWM STYLE 20549 AWM I/II A/B 80°C 300V FT2. Ambient temperature: . Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-25 ... 80 °C (-13 ... 176 °F): . Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter4.3 mm ± 0,1 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 50 N / 300 mmSheath colororange (similar to RAL 2003)Number of cores4Core cross section0.34 mm2Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: blackCore construction42 x 0.1 mm ∅LengthL100 mCable codeLi F 9Y 11Y 4 x 0,34: . Sheath diameter: 4.3 mm ± 0,1 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath stripping force: max. 50 N / 300 mm. Sheath color: orange (similar to RAL 2003). Number of cores: 4. Core cross section: 0.34 mm2. Cores color: Core 1: brown Core 2: white Core 3: blue Core 4: black. Core construction: 42 x 0.1 mm ∅. Length: 100 m. Cable code: Li F 9Y 11Y 4 x 0,34. Drag chain suitability: . Drag chain cyclesmin. 5000000Motion velocitymax. 3.3 m/sTraverse distancemax. 5 mAccelerationmax. 5 m/s2Torsion cyclesmin. 1000000Torsional stress±180 °/m: . Drag chain cycles: min. 5000000. Motion velocity: max. 3.3 m/s. Traverse distance: max. 5 m. Acceleration: max. 5 m/s2. Torsion cycles: min. 1000000. Torsional stress: ±180 °/m. Mass: 2669.1 g. PWIS free: yes. Halogen-free: yes. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPPWeld spatter resistanceyesChemical resistancegoodOil resistanceyesCooling lubricant resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityFT2: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP. Weld spatter resistance: yes. Chemical resistance: good. Oil resistance: yes. Cooling lubricant resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes. Flammability: FT2

Brand	Pepperl Fuchs
Lifecycle status	active
