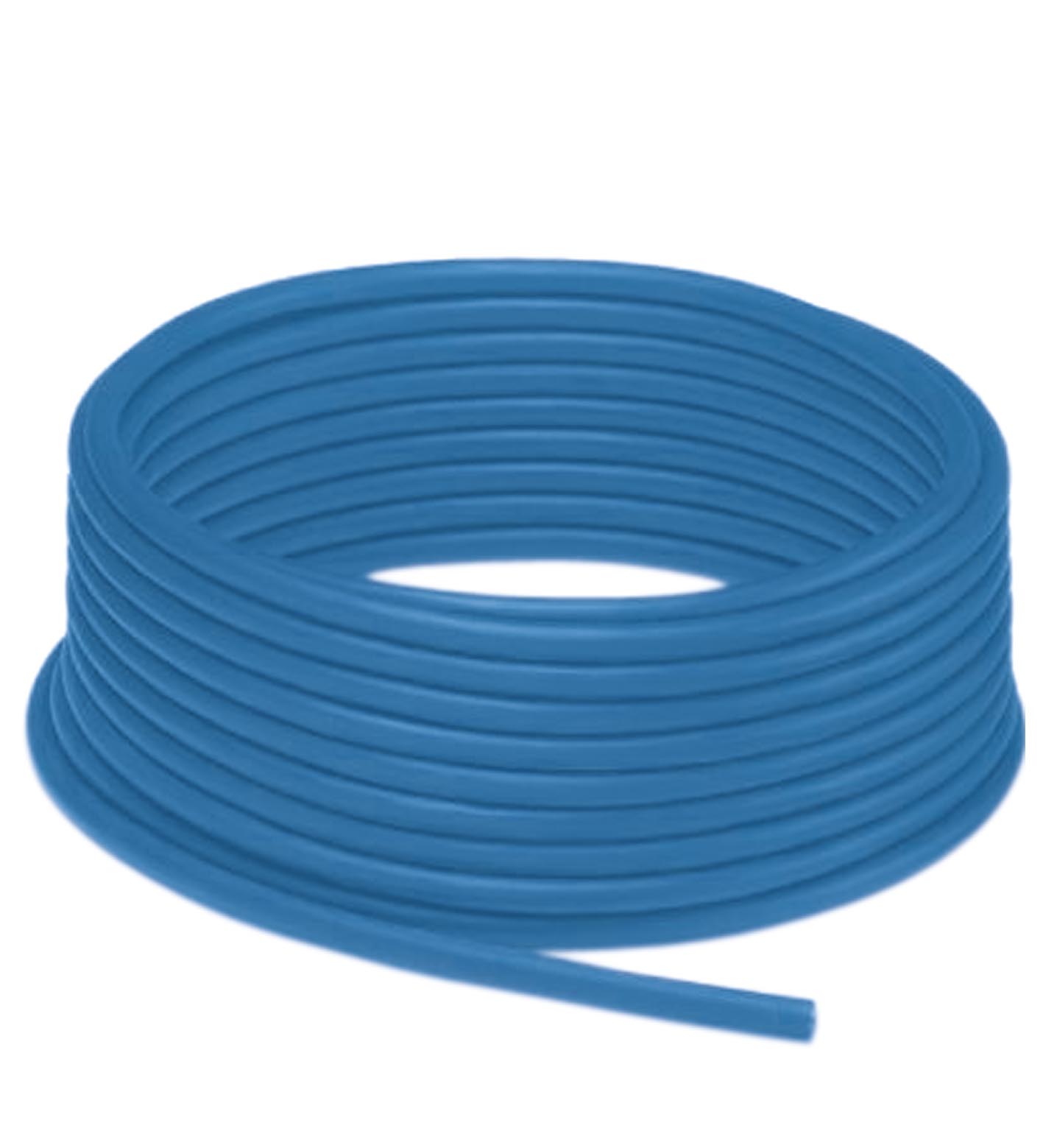

CBL-PUR-BU-04x034-100M

Bulk Raw Cable. Cable, PUR/PVC, 4-core blue. Operating voltage: max. 300 V AC/DC. Resistance per unit length: max. 0.057 Ω/m. Capacitance per unit length: 109 nF/km. Inductance per unit length: 0.49 m...

Bulk Raw Cable. Cable, PUR/PVC, 4-core blue. Operating voltage: max. 300 V AC/DC. Resistance per unit length: max. 0.057 Ω/m. Capacitance per unit length: 109 nF/km. Inductance per unit length: 0.49 mH/km. Ambient temperature: . Cable, fixed installation-30 ... 80 °C (-22 ... 176 °F)Cable, flexing-25 ... 80 °C (-13 ... 176 °F): . Cable, fixed installation: -30 ... 80 °C (-22 ... 176 °F). Cable, flexing: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter4.8 mm ± 0.2 mmBending radius> 15 x cable diameter, movable installation > 10 x cable diameter, fixed installationSheath colorblue (similar to RAL 5015)Number of cores4Core cross section0.34 mm2Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: blackCore construction42 x 0.1 mm ∅LengthL100 mCable codeLi FY 11Y 4 x 0.34: . Sheath diameter: 4.8 mm ± 0.2 mm. Bending radius: > 15 x cable diameter, movable installation > 10 x cable diameter, fixed installation. Sheath color: blue (similar to RAL 5015). Number of cores: 4. Core cross section: 0.34 mm2. Cores color: Core 1: brown Core 2: white Core 3: blue Core 4: black. Core construction: 42 x 0.1 mm ∅. Length: 100 m. Cable code: Li FY 11Y 4 x 0.34. Mass: 3085 g. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPVCFlammabilityHB: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PVC. Flammability: HB

Brand	Pepperl Fuchs
Lifecycle status	active
