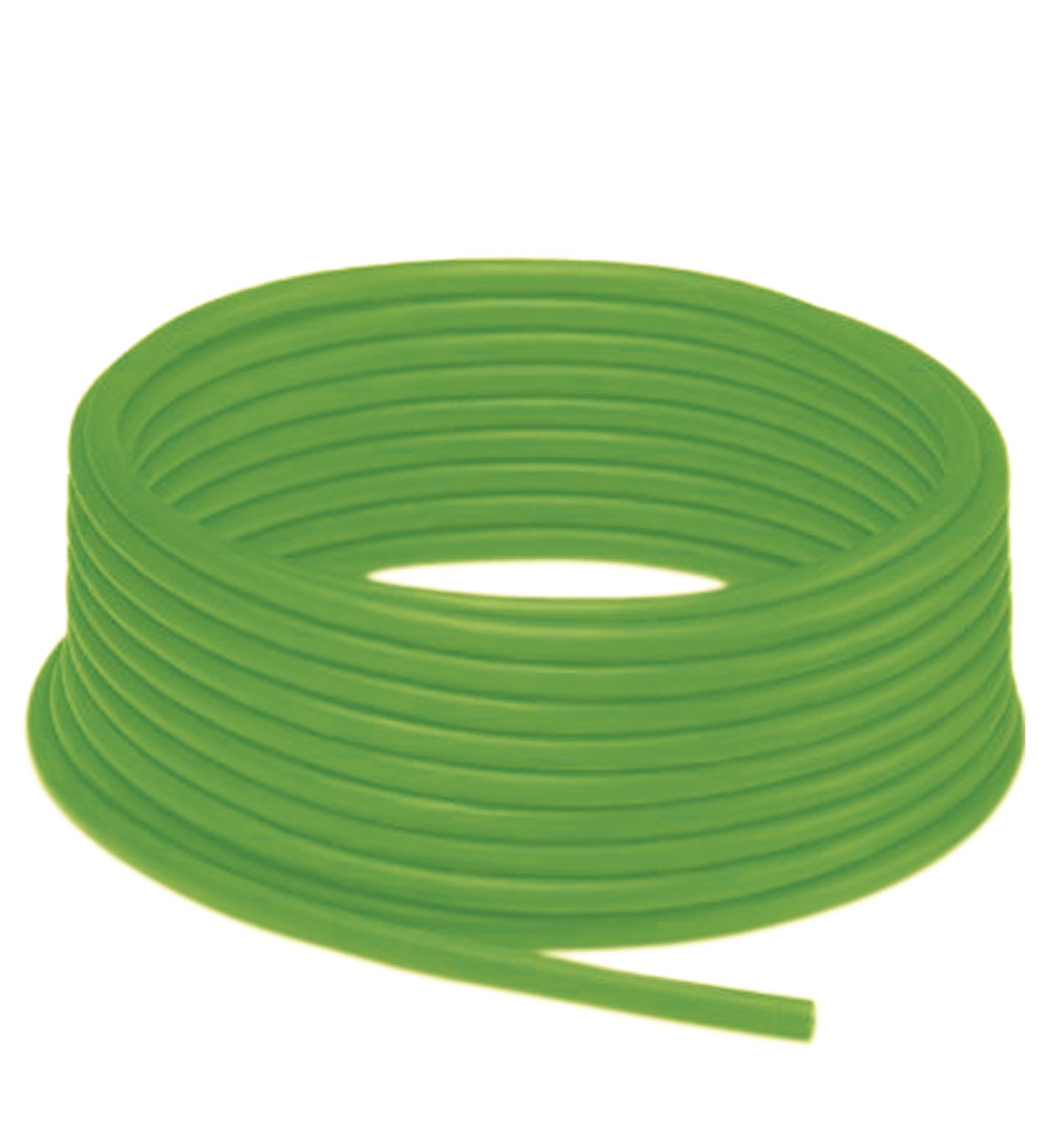

CBL-PUR-E1S-GN-04x034-100M

Bulk Raw Cable. Cable, PUR/PP, 4-core green, Cat5e, shielded, UL approved, drag chain suitable. Operating voltage: max. 57 V DC. Component category: CAT5 (IEC 11801) , CAT5e (IEC 61156-6). Flammabilit...

Bulk Raw Cable. Cable, PUR/PP, 4-core green, Cat5e, shielded, UL approved, drag chain suitable. Operating voltage: max. 57 V DC. Component category: CAT5 (IEC 11801) , CAT5e (IEC 61156-6). Flammability: IEC 60332-1-2 / UL 2556 / ISO 6722-1 5.22 (UN ECE-R 118.01). UL approval: AWM STYLE 20549 80 °C 300V AWM I A/B 80 °C 300V FT2. Ambient temperature: . Cable, fixed installation-30 ... 70 °C (-22 ... 158 °F) , UL: -20 ... 70 °C (-4 ... 158 °F)Cable, flexing-20 ... 70 °C (-4 ... 158 °F): . Cable, fixed installation: -30 ... 70 °C (-22 ... 158 °F) , UL: -20 ... 70 °C (-4 ... 158 °F). Cable, flexing: -20 ... 70 °C (-4 ... 158 °F). Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter6 mm ± 0.3 mmBending radius> 10 x cable diameter, movable installation > 8 x cable diameter, fixed installationSheath stripping forcemax. 60 N / 100 mmSheath colorgreen (similar to RAL 6018)Number of cores4Core cross section0.34 mm2 / 22 AWGCores colorCore 1: yellow Core 2: orange Core 3: white Core 4: blueCore construction7 x 0.254 mm ∅Shieldaluminum-lined polyester foilTinned copper braidingLengthL100 m: . Sheath diameter: 6 mm ± 0.3 mm. Bending radius: > 10 x cable diameter, movable installation > 8 x cable diameter, fixed installation. Sheath stripping force: max. 60 N / 100 mm. Sheath color: green (similar to RAL 6018). Number of cores: 4. Core cross section: 0.34 mm2 / 22 AWG. Cores color: Core 1: yellow Core 2: orange Core 3: white Core 4: blue. Core construction: 7 x 0.254 mm ∅. Shield: aluminum-lined polyester foilTinned copper braiding. Length: 100 m. Drag chain suitability: . Drag chain cyclesmax. 1000000Motion velocitymax. 3 m/sTraverse distancemax. 5 mAccelerationmax. 2 m/s2: . Drag chain cycles: max. 1000000. Motion velocity: max. 3 m/s. Traverse distance: max. 5 m. Acceleration: max. 2 m/s2. Mass: 4980 g. PWIS free: yes. Halogen-free: yes. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPPFlammabilityFT2 complies with UN ECE-R 118.01: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP. Flammability: FT2 complies with UN ECE-R 118.01

Brand	Pepperl Fuchs
Lifecycle status	active
