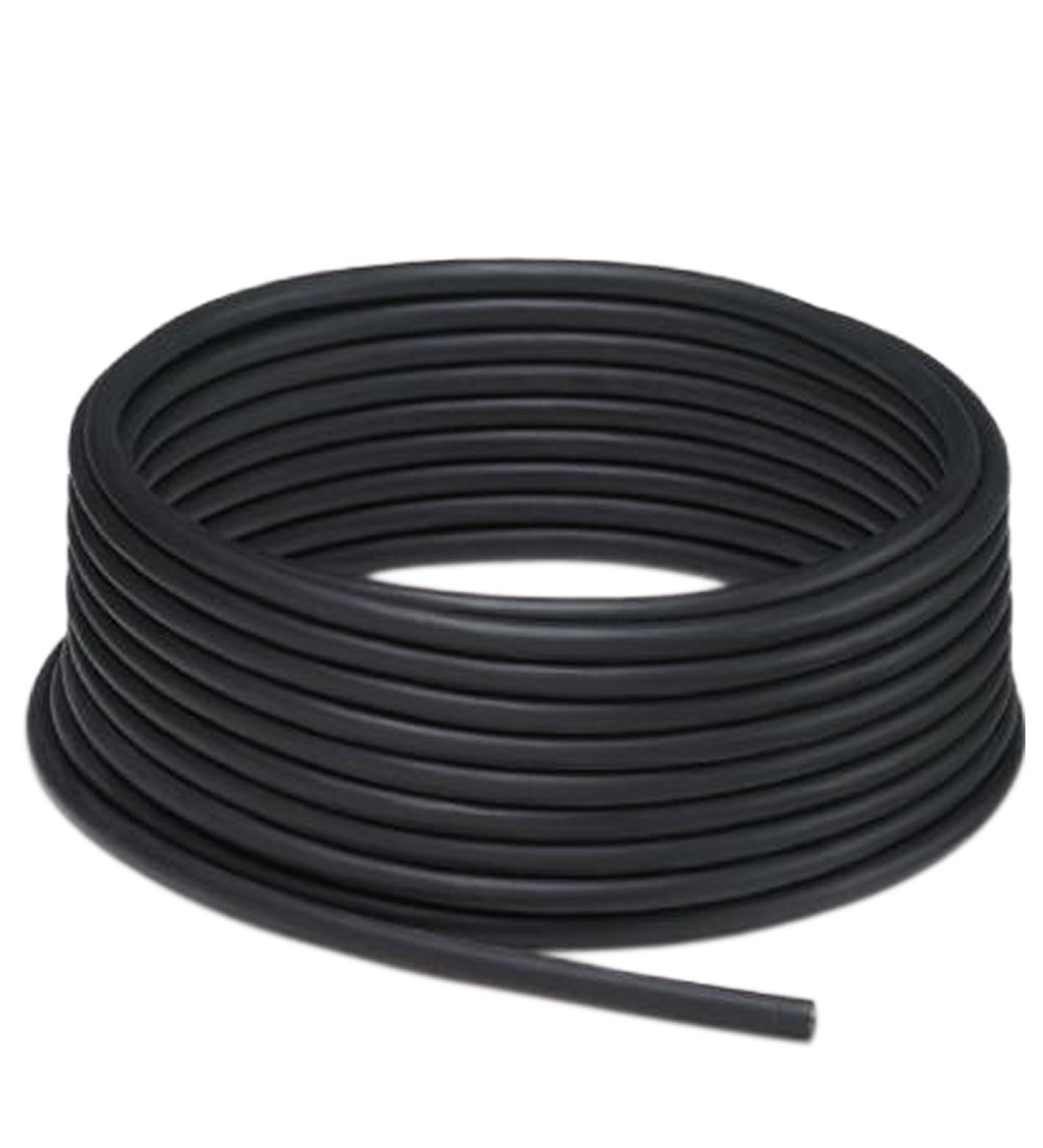

CBL-PUR-U/ABG-BK-04x034-100M

Bulk Raw Cable. Cable, PUR/PP, 4-core black, shielded, UL approved, drag chain suitable. Operating voltage: max. 300 V. Flammability: UL 1581; DIN EN 60332-2-2. Halogen-free: DIN VDE 0472-815. Microbi...

Bulk Raw Cable. Cable, PUR/PP, 4-core black, shielded, UL approved, drag chain suitable. Operating voltage: max. 300 V. Flammability: UL 1581; DIN EN 60332-2-2. Halogen-free: DIN VDE 0472-815. Microbial resistance: EN 50363. Hydrolysis resistance: EN 50363. UL approval: AWM STYLE 20549/10493 80°C 300V FT2. Ambient temperature: . Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-25 ... 80 °C (-13 ... 176 °F): . Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter4.9 mm ± 0.15 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 60 N / 100 mmSheath colorblack (similar to RAL 9005)Number of cores4Core cross section0.34 mm2Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: blackCore construction42 x 0.1 mm ∅Shieldtinned copper braiding, 85 % coverageLengthL100 mCable codeLi F 9Y C11Y 4 x 0,34: . Sheath diameter: 4.9 mm ± 0.15 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath stripping force: max. 60 N / 100 mm. Sheath color: black (similar to RAL 9005). Number of cores: 4. Core cross section: 0.34 mm2. Cores color: Core 1: brown Core 2: white Core 3: blue Core 4: black. Core construction: 42 x 0.1 mm ∅. Shield: tinned copper braiding, 85 % coverage. Length: 100 m. Cable code: Li F 9Y C11Y 4 x 0,34. Drag chain suitability: . Drag chain cyclesmin. 2000000Motion velocitymax. 3 m/sTraverse distancemax. 5 mAccelerationmax. 5 m/s2: . Drag chain cycles: min. 2000000. Motion velocity: max. 3 m/s. Traverse distance: max. 5 m. Acceleration: max. 5 m/s2. Mass: 3670 g. Halogen-free: yes. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPPUV resistanceyesChemical resistancegoodOil resistanceyesCooling lubricant resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityFT2: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP. UV resistance: yes. Chemical resistance: good. Oil resistance: yes. Cooling lubricant resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes. Flammability: FT2

Brand	Pepperl Fuchs
Lifecycle status	active
