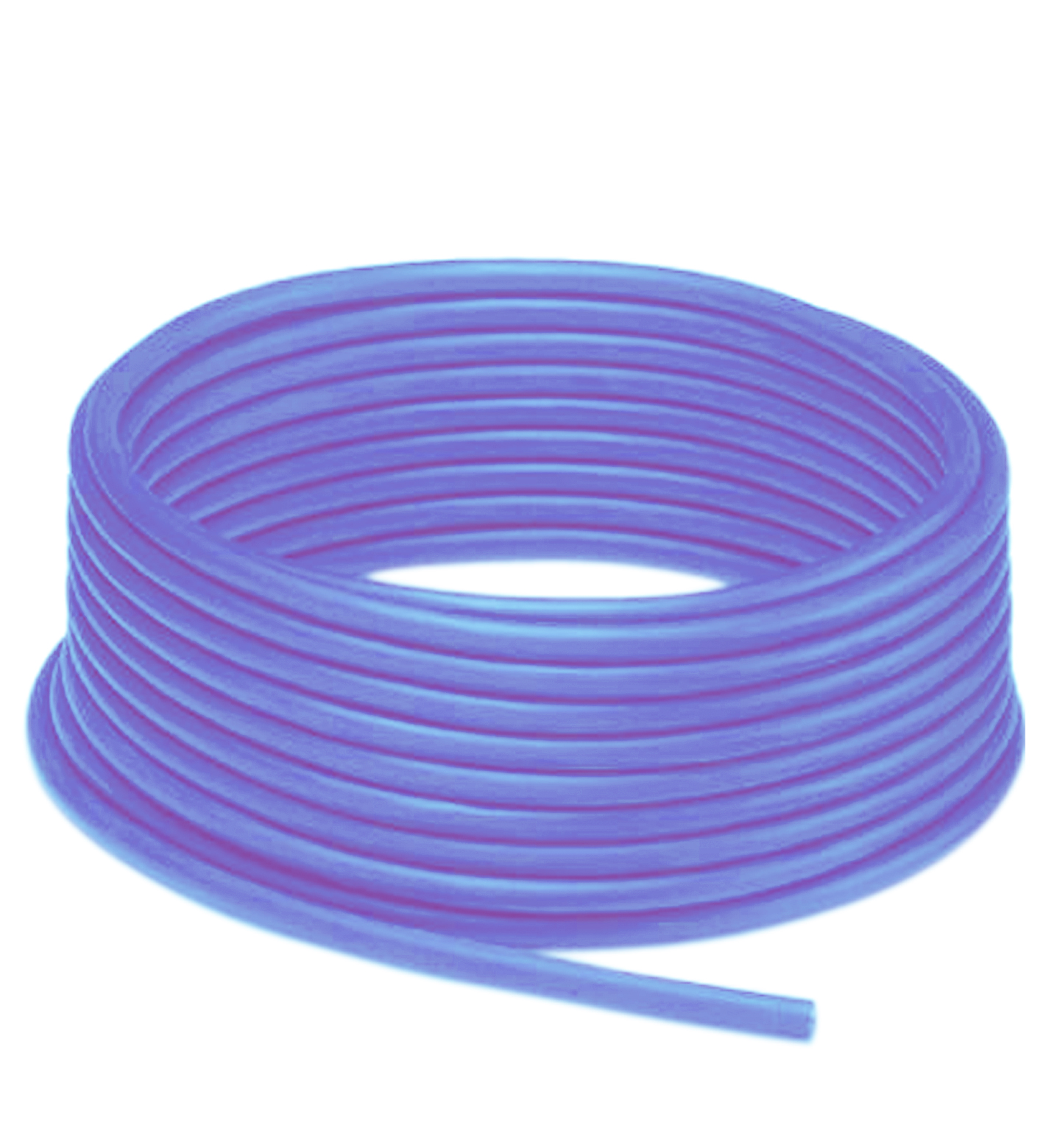

CBL-PUR-U/CAN-VT-04x034-100M

Bulk Raw Cable. Cable, PUR/PP, 4-core twisted quad violet, shielded, UL approved, drag chain suitable, salt water resistant. Operating voltage: max. 300 V AC. Test voltage: core/core: 3000 V (1 min) c...

Bulk Raw Cable. Cable, PUR/PP, 4-core twisted quad violet, shielded, UL approved, drag chain suitable, salt water resistant. Operating voltage: max. 300 V AC. Test voltage: core/core: 3000 V (1 min) core/shield: 3000 V (1 min). Characteristic impedance: 120 Ω ±12 Ω (1 MHz). Flammability: IEC 60332-1-2 / UL 2556 / ISO 6722-1 5.22 (UN ECE-R 118.01). Halogen-free: IEC 60754-1. Chemical resistance: DIN EN 60811-2-1. Oil resistance: DIN EN 60811-2-1. UL approval: CMX listed. Ambient temperature: . Cable, fixed installation-20 ... 80 °C (-4 ... 176 °F)Cable, flexing-20 ... 80 °C (-4 ... 176 °F): . Cable, fixed installation: -20 ... 80 °C (-4 ... 176 °F). Cable, flexing: -20 ... 80 °C (-4 ... 176 °F). Pollution degree: 3. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter6.1 mm ± 0.15 mmBending radius> 8 x cable diameter, movable installation > 4 x cable diameter, fixed installationSheath stripping forcemax. 60 N / 100 mmSheath colorviolet (similar to RAL 4001)Number of cores4Core cross section0.34 mm2Cores colorCore 1: red Core 2: black Core 3: white Core 4: blueCore construction7 x 0.254 mm ∅ twisted quadShieldtinned copper braiding, 80 % coverageLengthL100 mCable codeLi 9Y 11Y 4 x 0.34: . Sheath diameter: 6.1 mm ± 0.15 mm. Bending radius: > 8 x cable diameter, movable installation > 4 x cable diameter, fixed installation. Sheath stripping force: max. 60 N / 100 mm. Sheath color: violet (similar to RAL 4001). Number of cores: 4. Core cross section: 0.34 mm2. Cores color: Core 1: red Core 2: black Core 3: white Core 4: blue. Core construction: 7 x 0.254 mm ∅ twisted quad. Shield: tinned copper braiding, 80 % coverage. Length: 100 m. Cable code: Li 9Y 11Y 4 x 0.34. Drag chain suitability: . Drag chain cyclesmin. 3000000Motion velocitymax. 2.5 m/sAccelerationmax. 12 m/s2: . Drag chain cycles: min. 3000000. Motion velocity: max. 2.5 m/s. Acceleration: max. 12 m/s2. Mass: 5278 g. Halogen-free: yes. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPPSalt water resistanceyesOil resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityVW-1 complies with UN ECE-R 118.01: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP. Salt water resistance: yes. Oil resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes. Flammability: VW-1 complies with UN ECE-R 118.01

Brand	Pepperl Fuchs
Lifecycle status	active
