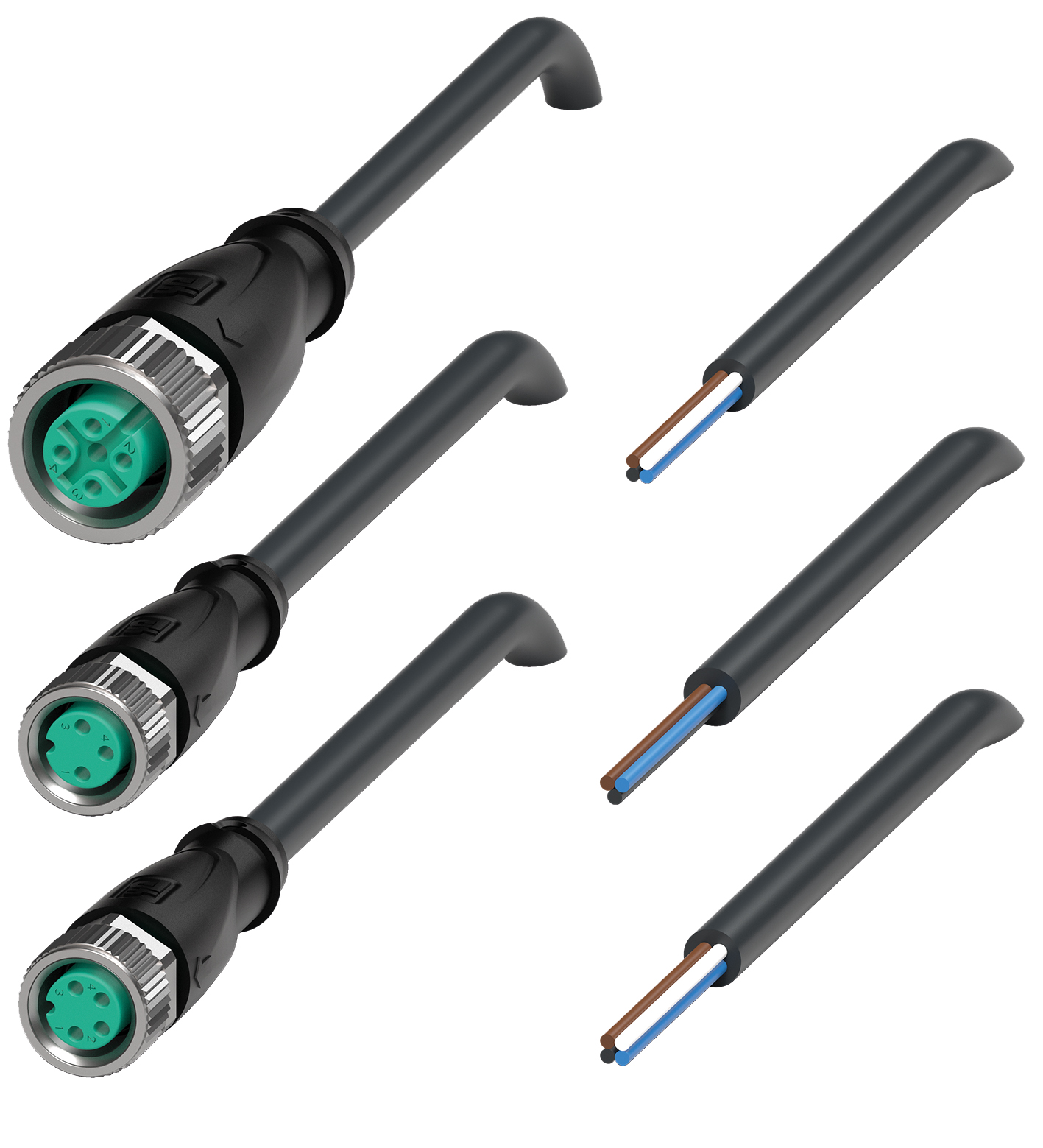

CBL-SET-ST 04

Female cordset. Cable set for sensor tester ST 04, PUR cable black, UL approved, drag chain suitable, torsion resistant, Suitable for drag chains and abrasion resistant, Suitable for robotic applicati...

Female cordset. Cable set for sensor tester ST 04, PUR cable black, UL approved, drag chain suitable, torsion resistant, Suitable for drag chains and abrasion resistant, Suitable for robotic applications / torsion resistant, Degree of protection IP68 / IP69, Free of paint wetting interfering substances, Resistant to microbes and hydrolysis. Customization: core ends sheath stripped , with wire end ferrule. Operating voltage: M12 max. 250 V AC/DC M8 4-pin max. 30 V AC/DC M8 3-pin max. 48 V AC / 60 V DC. Operating current: max. 4 A. Degree of protection: EN 60529. UL approval: AWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 (cable). Pollution degree: 3. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter4.3 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationNumber of cores4Core cross section0.34 mm2LengthL0.2 m: . Sheath diameter: 4.3 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Number of cores: 4. Core cross section: 0.34 mm2. Length: 0.2 m. Drag chain suitability: . Drag chain cyclesmin. 5000000Motion velocitymax. 3.3 m/sTraverse distancemax. 5 mAccelerationmax. 5 m/s2Torsion cyclesmin. 1000000Torsional stress± 180 °/m: . Drag chain cycles: min. 5000000. Motion velocity: max. 3.3 m/s. Traverse distance: max. 5 m. Acceleration: max. 5 m/s2. Torsion cycles: min. 1000000. Torsional stress: ± 180 °/m

Brand	Pepperl Fuchs
Lifecycle status	active
