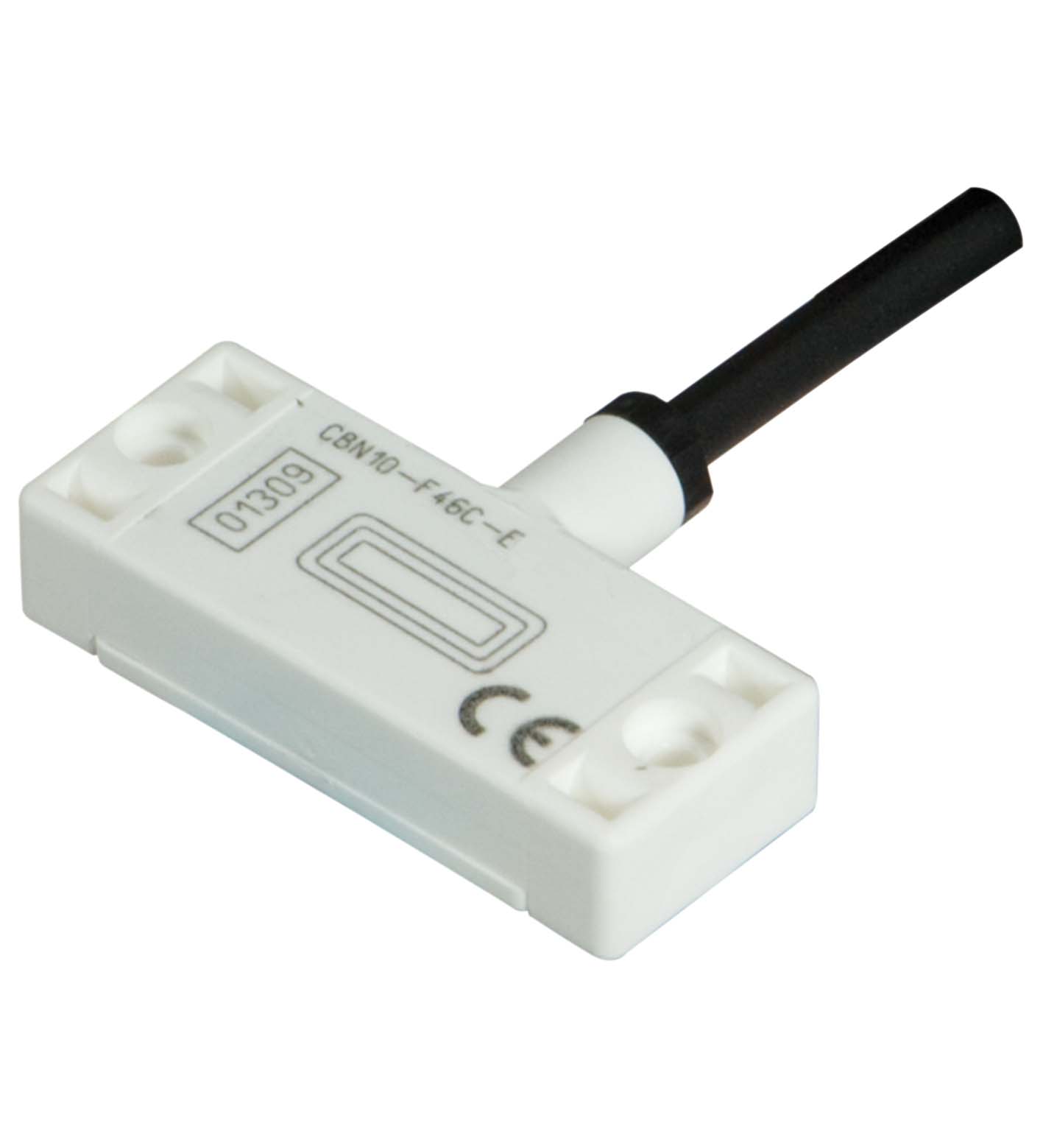

CBN10-F46C-EI

Capacitive sensor. Output type: Digital current output, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Type of voltage: DC...

Capacitive sensor. Output type: Digital current output, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Type of voltage: DC, Connection type: cable, Housing material: PVDF, Degree of protection: IP67. Output type: Digital current output. Rated operating distance: 7 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 5 mm. Output type: 3-wire. Installation conditions: . B5 mmC20 mmF40 mm / 60 mm: . B: 5 mm. C: 20 mm. F: 40 mm / 60 mm. Operating voltage: 9 ... 30 V. Switching frequency: 0 ... 5 Hz. Hysteresis: 1 ... 10 % typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: yes. No-load supply current: ≤ 20 mA. Load resistor: 0 ... 250 Ohm. MTTFd: 660 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Output value: object detected: 10 mA ± 1 mA object not detected: 5 mA ± 1 mA. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: UL 60947-5-2: 2014 Class 2 power source type rating 1. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: cable. Housing material: PVDF. Sensing face: PVDF. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter4.8 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPURColorblackNumber of cores3Core cross section0.34 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 4.8 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PUR. Color: black. Number of cores: 3. Core cross section: 0.34 mm2. Length: 2 m. Mass: 75 g. Dimensions: . Height10.5 mmWidth50 mmLength30.4 mm: . Height: 10.5 mm. Width: 50 mm. Length: 30.4 mm

Brand	Pepperl Fuchs
Lifecycle status	active
