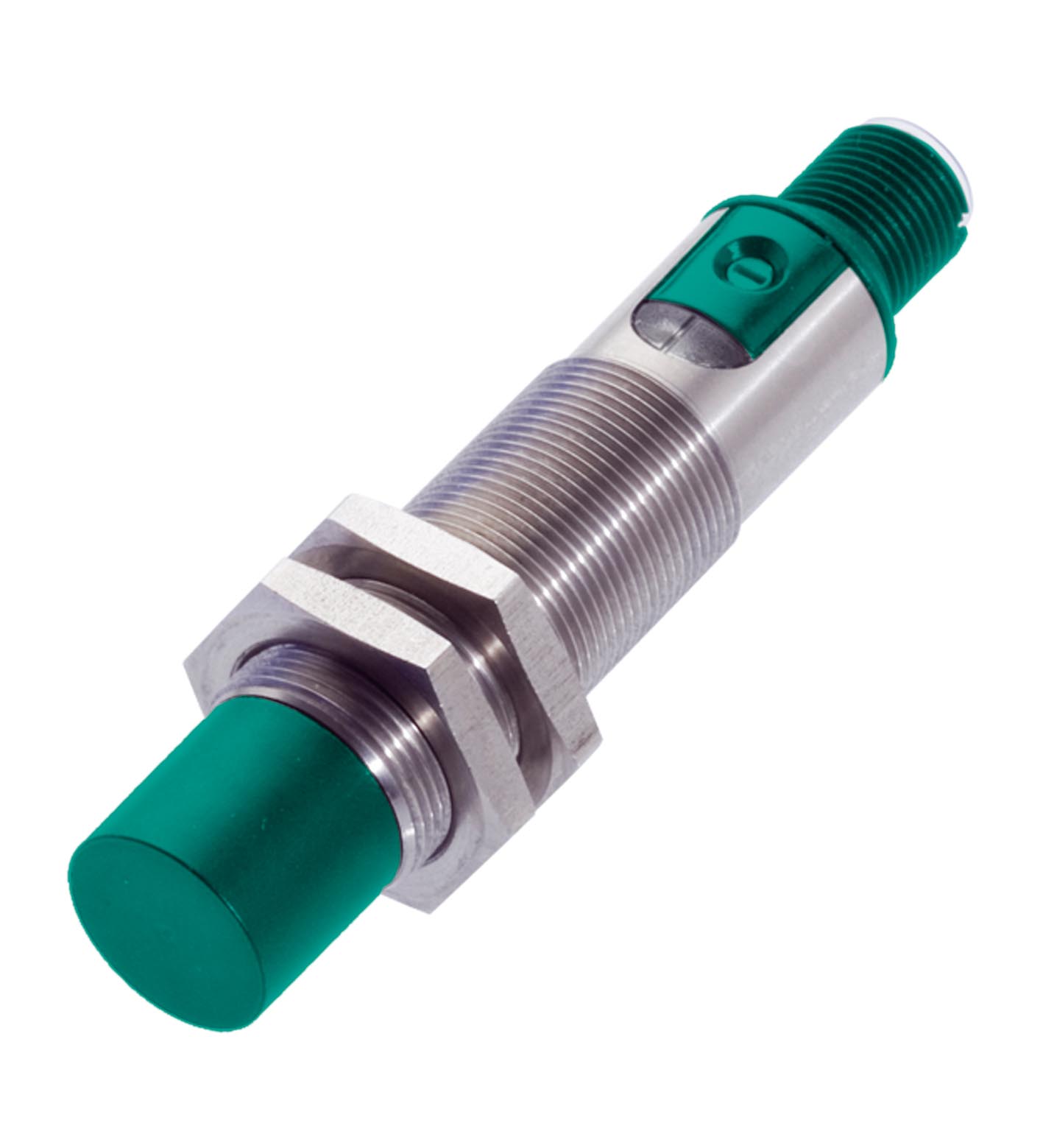

CBN15-18GS75-E2-V1

Capacitive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread...

Capacitive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Potentiometer: sensitivity adjustment, Type of voltage: DC, Connection type: Connector plug, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Threading: M12 x 1. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 2 ... 15 mm. Installation: non-flush. Output polarity: DC. Output type: 3-wire. Installation conditions: . A30 mmB18 mmC30 mmF36 mm: . A: 30 mm. B: 18 mm. C: 30 mm. F: 36 mm. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 100 Hz. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 1.5 V. Temperature drift: max. 20 % at -5 ... 55 °C (23 ... 131 °F). Operating current: 0 ... 100 mA. No-load supply current: ≤ 15 mA. Time delay before availability: max. 300 ms. MTTFd: 226 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. LED green: Operating display. LED yellow: indication switching state. Potentiometer: sensitivity adjustment. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Connection type: Connector plug. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: PBT. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins3: . Threading: M12 x 1. Number of pins: 3. Dimensions: . Length88 mmDiameter18 mm: . Length: 88 mm. Diameter: 18 mm

Brand	Pepperl Fuchs
Lifecycle status	active
