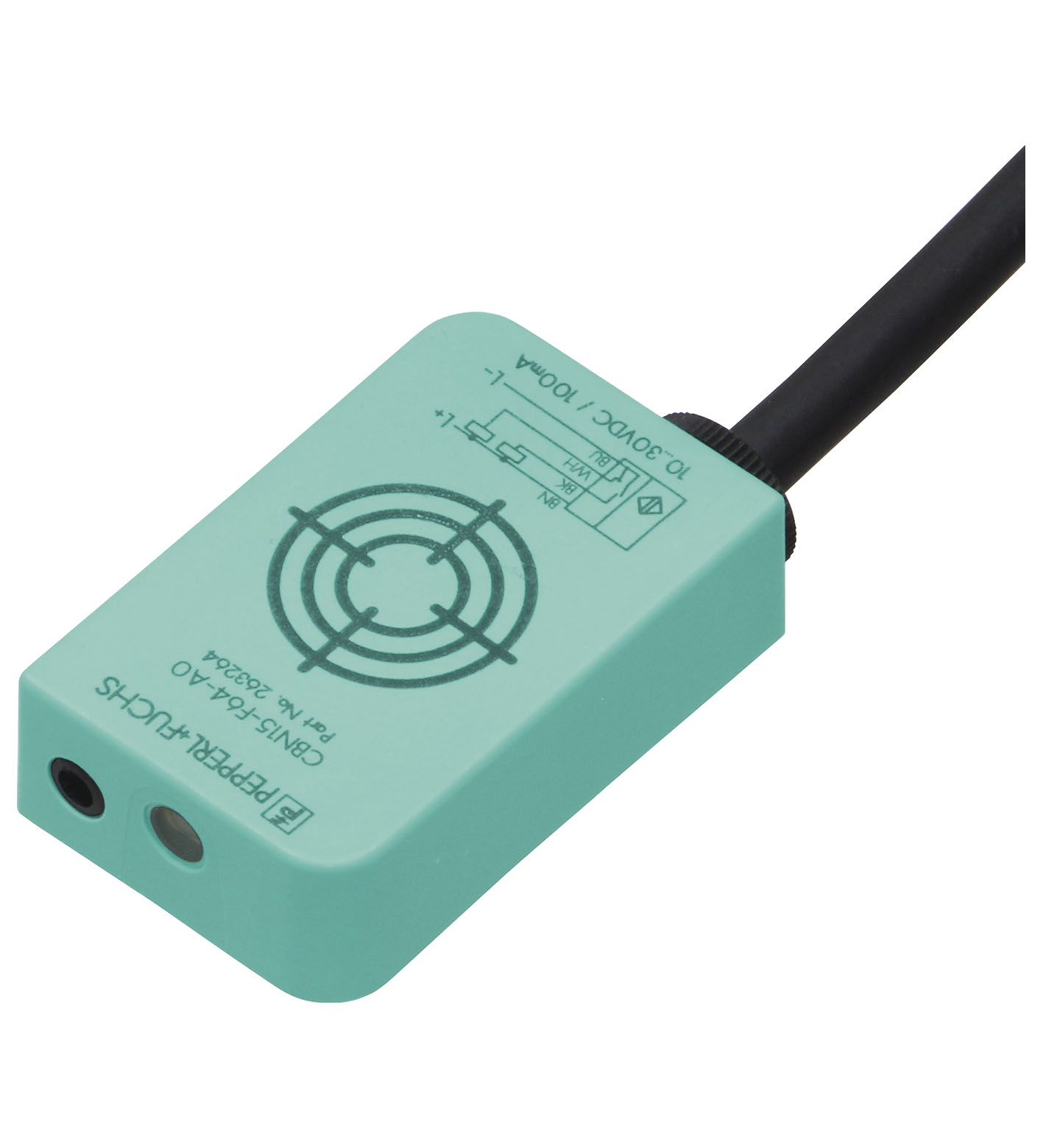

CBN15-F64-A0

Capacitive sensor. magnetic field resistant, Switching function: complementary, Output type: NPN, Installation: non-flush, Output polarity: DC, Output type: 4-wire, Construction type: Rectangular, Ser...

Capacitive sensor. magnetic field resistant, Switching function: complementary, Output type: NPN, Installation: non-flush, Output polarity: DC, Output type: 4-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 ... 30 V DC, Potentiometer: sensitivity adjustment, Type of voltage: DC, Connection type: cable, Housing material: PBT, Degree of protection: IP67. Switching function: complementary. Output type: NPN. Rated operating distance: 15 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 10.8 mm. Actual operating distance: 13.5 ... 16.5 mm. Output type: 4-wire. Installation conditions: . B15 mmC30 mmF45 mm / 60 mm: . B: 15 mm. C: 30 mm. F: 45 mm / 60 mm. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 100 Hz. Hysteresis: 1 ... 10 % typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsingImax ≤ 500 mA. Voltage drop: ≤ 2 V. Repeat accuracy: ≤ 1.5 mm. Operating current: 0 ... 100 mA. Off-state current: 0 ... 50 µA typ. 5 µA. No-load supply current: ≤ 15 mA. Switching state indicator: LED, yellow. MTTFd: 941 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Potentiometer: sensitivity adjustment. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Pollution degree: 3. Connection type: cable. Housing material: PBT. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter4.8 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPURColorblackNumber of cores4Core cross section0.34 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 4.8 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PUR. Color: black. Number of cores: 4. Core cross section: 0.34 mm2. Length: 2 m. Tightening torque, housing screws: ≤ 2 Nm. Dimensions: . Height12 mmWidth25 mmLength40 mm: . Height: 12 mm. Width: 25 mm. Length: 40 mm. Note: Screw-in depth of housing screws, max. 8 mm

Brand	Pepperl Fuchs
Lifecycle status	active
