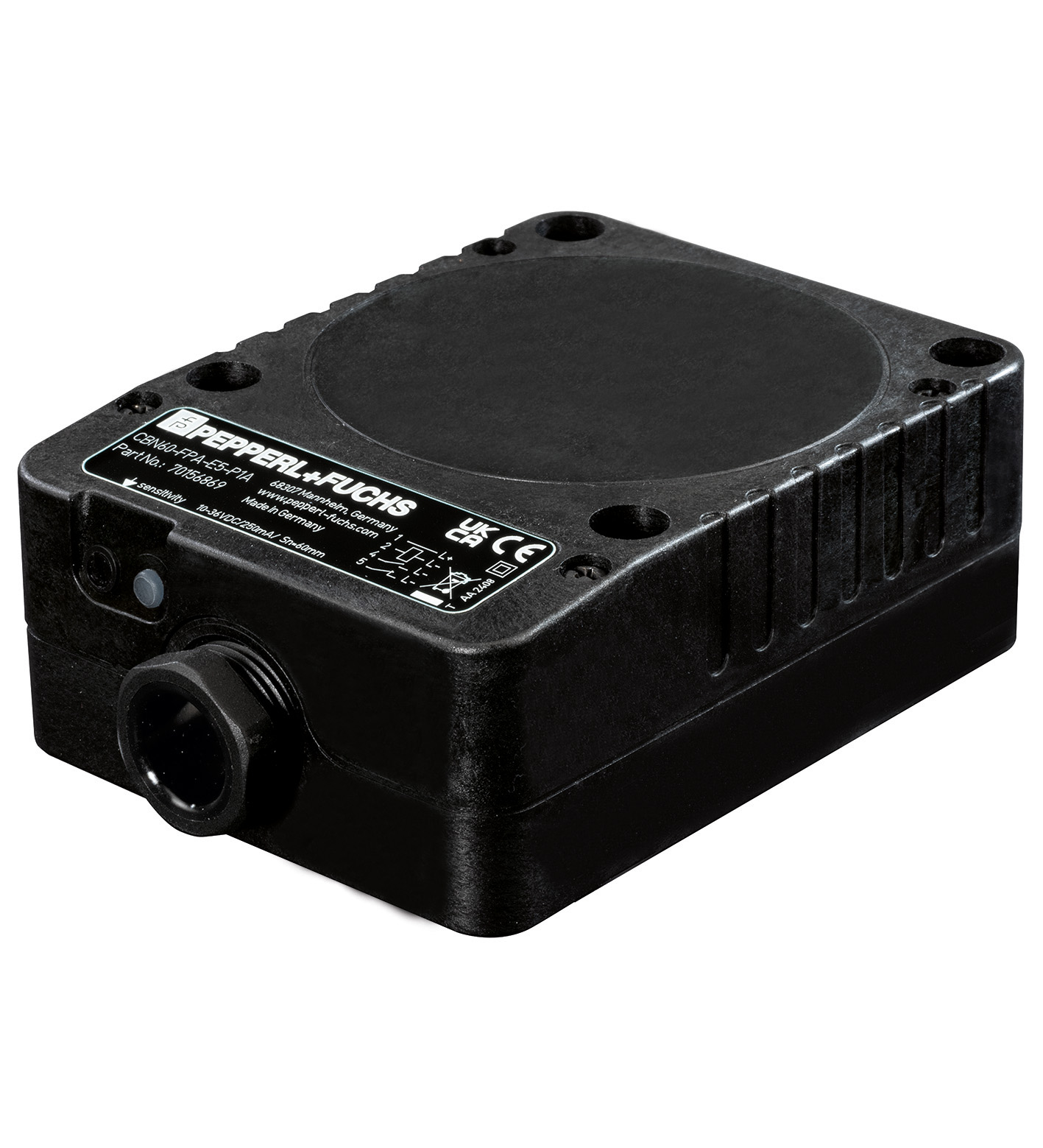

CBN60-FPA-E5-P1A

Capacitive sensor. Switching function: Normally open/closed (NO/NC) selectable through wiring, Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: R...

Capacitive sensor. Switching function: Normally open/closed (NO/NC) selectable through wiring, Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 ... 36 V DC, Potentiometer: sensitivity adjustment, Type of voltage: DC, Connection type: screw terminals, Housing material: PPE, Degree of protection: IP65. Switching function: Normally open/closed (NO/NC) selectable through wiring. Output type: PNP. Rated operating distance: 60 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 48.6 mm. Output type: 3-wire. Installation conditions: . B180 mmC180 mmF320 mm: . B: 180 mm. C: 180 mm. F: 320 mm. Operating voltage: 10 ... 36 V DC. Switching frequency: 10 Hz. Hysteresis: 1 ... 15 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: yes. Voltage drop: 0 ... 2.5 V. Operating current: 0 ... 250 mA. No-load supply current: ≤ 20 mA. Switching state indicator: LED, yellow. Potentiometer: sensitivity adjustment. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. Ambient temperature: -25 ... 80 °C (-13 ... 176 °F). Connection type: screw terminals. Information for connection: A maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 %. Core cross section: up to 2.5 mm2. Minimum core cross-sectionwithout wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2Maximum core cross-sectionwithout wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2: . Minimum core cross-section: without wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2. Maximum core cross-section: without wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2. Housing material: PPE. Degree of protection: IP65. Mass: 300 g. Dimensions: . Height40 mmWidth80 mmLength105 mm: . Height: 40 mm. Width: 80 mm. Length: 105 mm. Scope of delivery: 4 x spring washer 4 x cylinder head screw

Brand	Pepperl Fuchs
Lifecycle status	active
