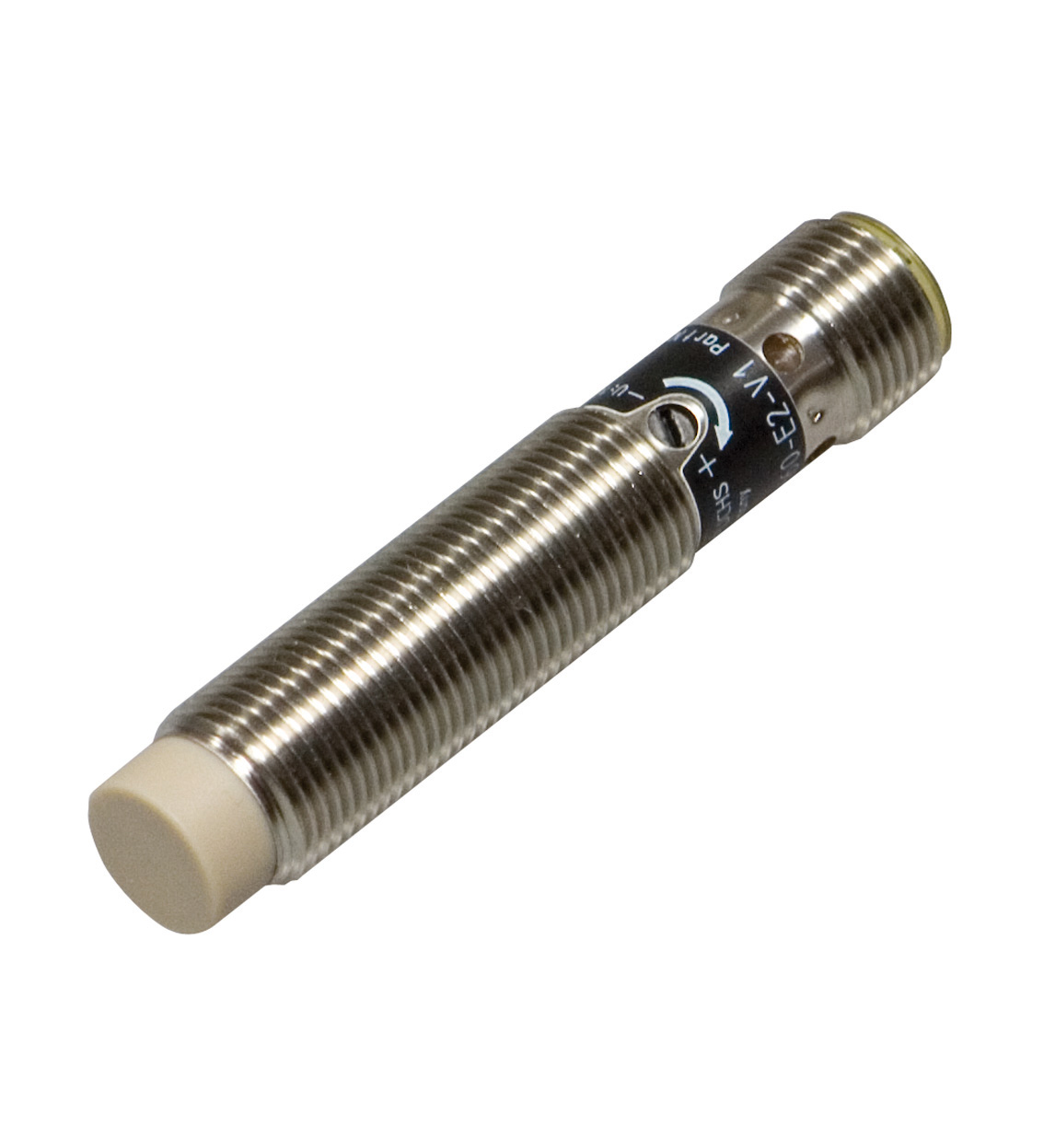

CBN8-12GH60-E2-V1

Capacitive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread...

Capacitive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 ... 36 V DC, Potentiometer: sensitivity adjustment, Type of voltage: DC, Connection type: Connector plug, Housing material: Stainless steel 1.4404 / AISI 316L, Degree of protection: IP65, Threading: M12 x 1. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 8 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 6.48 mm. Output type: 3-wire. Installation conditions: . A8 mmB10 mmC20 mmF25 mm: . A: 8 mm. B: 10 mm. C: 20 mm. F: 25 mm. Operating voltage: 10 ... 36 V DC. Switching frequency: 0 ... 50 Hz. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2.5 V. Operating current: 0 ... 100 mA. No-load supply current: ≤ 12 mA. Switching state indicator: LED, yellow. Potentiometer: sensitivity adjustment. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed, General Purpose. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: Connector plug. Housing material: Stainless steel 1.4404 / AISI 316L. Sensing face: PEEK. Degree of protection: IP65. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Dimensions: . Length61.2 mmDiameter12 mm: . Length: 61.2 mm. Diameter: 12 mm

Brand	Pepperl Fuchs
Lifecycle status	active
