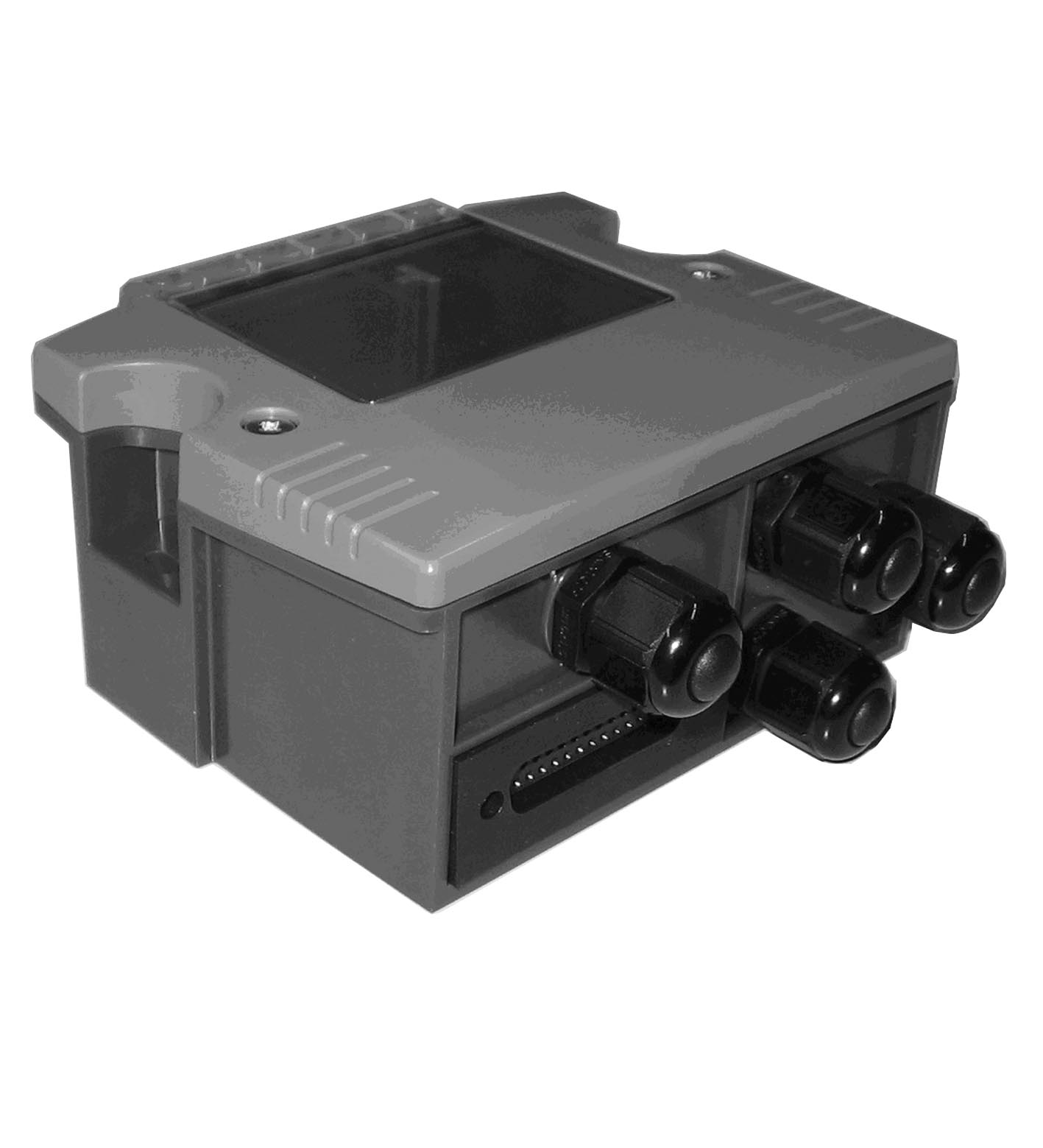

CBX100

Connector box for barcode scanner. Connector box for barcode scanner, Connect up to 32 scanners to a network with ID-Net<SUP>TM</SUP>, Option of upgrading with memory module, Easy scanner connection b...

Connector box for barcode scanner. Connector box for barcode scanner, Connect up to 32 scanners to a network with ID-Net<SUP>TM</SUP>, Option of upgrading with memory module, Easy scanner connection by means of clamp terminals, Degree of protection IP65. Display elements: 5 LEDs (POWER, TRIGGER, IN 2, OUT 1, OUT 2). Operating voltage: 10 ... 30 V DC. Current consumption: max. 2.5 A. Power consumption: max. 3 W. Directive conformity: 89/336 EWG. Standard conformity: . Product standardEN 60947-5-2:2007 IEC 60947-5-2:2007Noise immunityEN 61000-6-2Degree of protectionEN 60529: . Product standard: EN 60947-5-2:2007 IEC 60947-5-2:2007. Noise immunity: EN 61000-6-2. Degree of protection: EN 60529. Ambient temperature: -35 ... 50 °C (-31 ... 122 °F) Mount, connect, and configure only between 0° ... 50°. Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Relative humidity: 90 % , noncondensing. Shock resistance: EN 60068-2-27 30G 11 ms ; 3 impacts on each axis. Vibration resistance: EN 60068-2-6 1.5 mm 10 ... 55 Hz ; 2 hours on each axis. Degree of protection: IP65. Connection: 25-pin Sub-D socket for Barcode scanner , M16 cable gland for system connection (4x). Material: . HousingPC (Polycarbonate): . Housing: PC (Polycarbonate). Mass: 380 g. Dimensions: . Height40 mmWidth128 mmDepth138 mm: . Height: 40 mm. Width: 128 mm. Depth: 138 mm

Brand	Pepperl Fuchs
Lifecycle status	active
