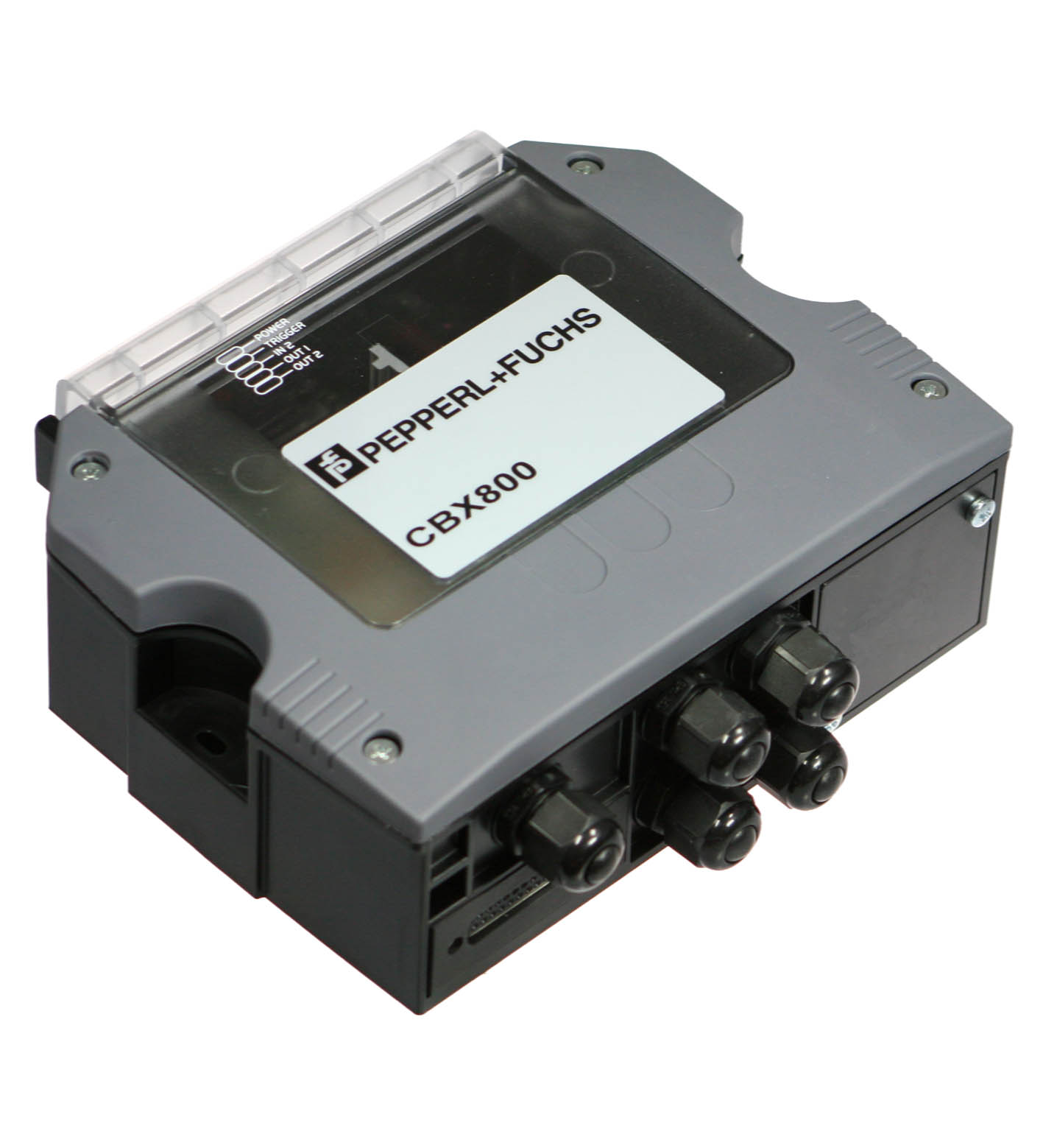

CBX800

Connector box. Connection module for RS-232 and RS-485 enabled devices, Easy scanner connection by means of clamp terminals, Degree of protection IP65, Option of upgrading with Profibus, Ethernet and...

Connector box. Connection module for RS-232 and RS-485 enabled devices, Easy scanner connection by means of clamp terminals, Degree of protection IP65, Option of upgrading with Profibus, Ethernet and DeviceNet module. Display elements: 8 LEDs (POWER, ERROR, TRIGGER, IN 2, OUT 1, OUT 2, READY, HOST). Operating voltage: 10 ... 30 V DC PELV. Current consumption: max. 2.5 A. Power consumption: max. 3 W. Interface type: Modular upgrade option (e.g. PROFIBUS, Ethernet, DeviceNet). Directive conformity: 89/336 EWG. Standard conformity: . Noise immunityEN 61000-6-2Degree of protectionEN 60529Shock and impact resistanceEN 60068-2-27Vibration resistanceEN 60068-2-6: . Noise immunity: EN 61000-6-2. Degree of protection: EN 60529. Shock and impact resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Relative humidity: 90 % , noncondensing. Shock resistance: 30G ; 11 ms ; 3 impacts on each axis. Vibration resistance: 1.5 mm ; 10 ... 55 Hz ; 2 hours on each axis. Degree of protection: IP65. Connection: 25-pin Sub-D socket for Barcode scanner , M16 cable gland for system connection (5x). Material: . HousingPC (Polycarbonate): . Housing: PC (Polycarbonate). Mass: 780 g. Dimensions: . Height71 mmWidth192 mmDepth180 mm: . Height: 71 mm. Width: 192 mm. Depth: 180 mm

Brand	Pepperl Fuchs
Lifecycle status	active
