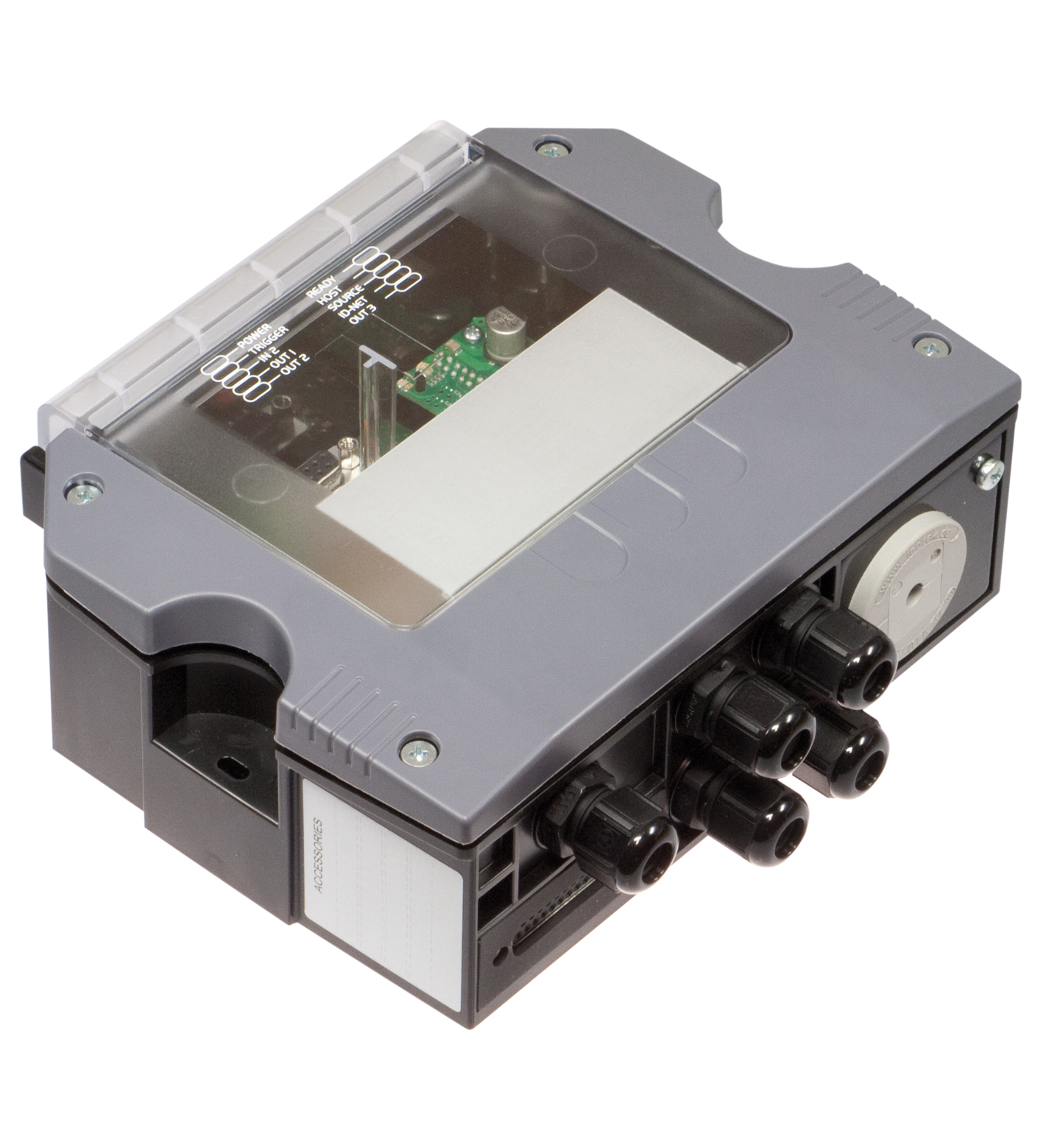

CBX800-KIT-B19-IP54

Connector box. Connector box for barcode scanner, Easy scanner connection by means of clamp terminals, Degree of protection IP54. Display elements: 8 LEDs (POWER, ERROR, TRIGGER, IN 2, OUT 1, OUT 2, R...

Connector box. Connector box for barcode scanner, Easy scanner connection by means of clamp terminals, Degree of protection IP54. Display elements: 8 LEDs (POWER, ERROR, TRIGGER, IN 2, OUT 1, OUT 2, READY, HOST). Operating voltage: 10 ... 30 V DC PELV. Current consumption: max. 2.5 A. Power consumption: max. 3 W. Physical: Ethernet. Protocol: TCP/IP , EtherNet/IP. Transfer rate: 100 MBit/s. Directive conformity: 89/336 EWG. Standard conformity: . Noise immunityEN 61000-6-2Degree of protectionEN 60529Shock and impact resistanceEN 60068-2-27Vibration resistanceEN 60068-2-6: . Noise immunity: EN 61000-6-2. Degree of protection: EN 60529. Shock and impact resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Relative humidity: 90 % , noncondensing. Shock resistance: 30G ; 11 ms ; 3 impacts on each axis. Vibration resistance: 1.5 mm ; 10 ... 55 Hz ; 2 hours on each axis. Degree of protection: IP54. Connection: 25-pin Sub-D socket for Barcode scanner M16 cable gland for system connection (5x) , RJ-45 socket, 8-pin , .... Material: . HousingPC (Polycarbonate): . Housing: PC (Polycarbonate). Mass: 780 g. Dimensions: . Height71 mmWidth192 mmDepth180 mm: . Height: 71 mm. Width: 192 mm. Depth: 180 mm

Brand	Pepperl Fuchs
Lifecycle status	active
