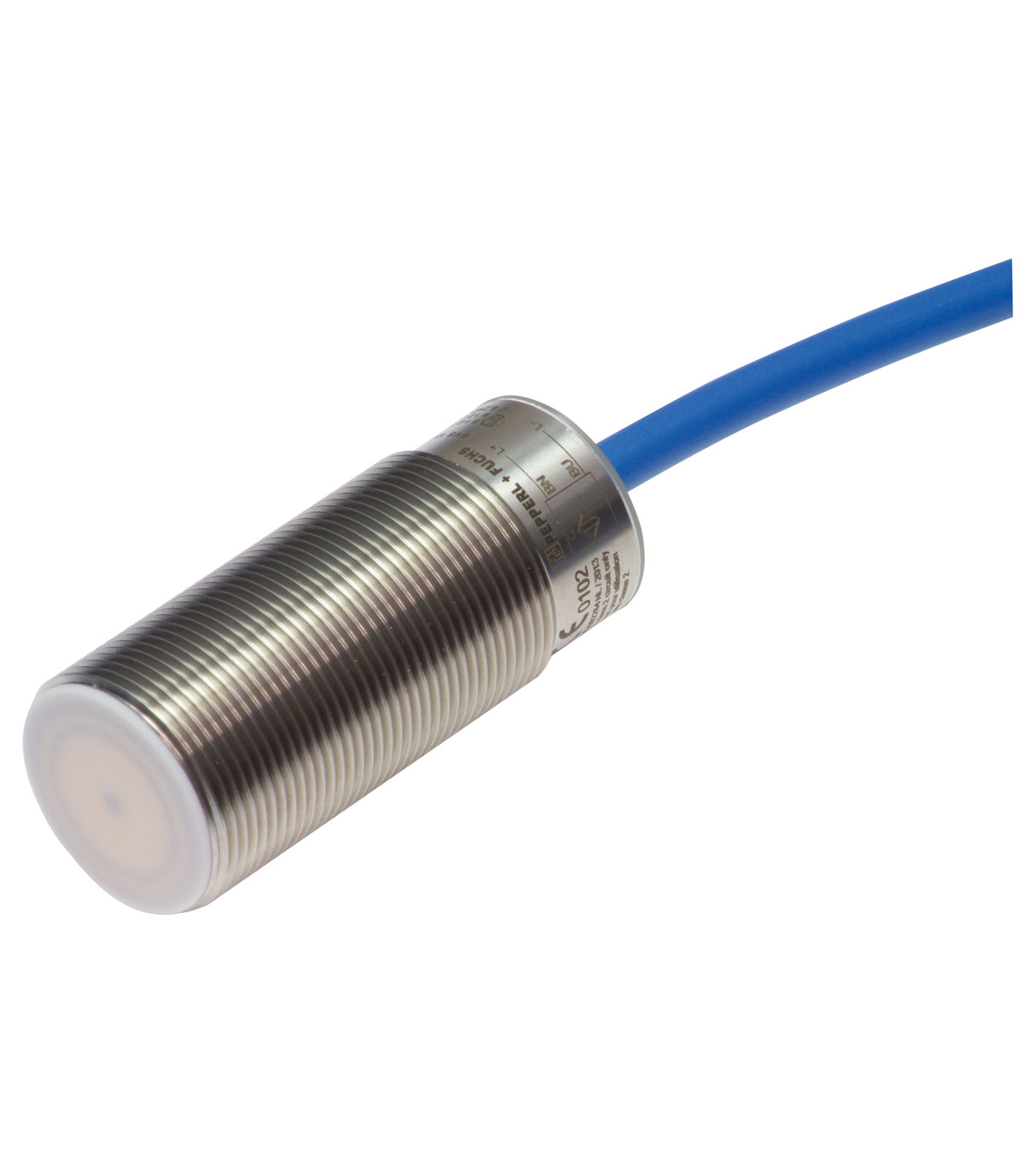

CCB10-30GS55-N1

Capacitive sensor. Switching function: Normally open (NO), Output type: NAMUR, Installation: flush, Output type: 2-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical t...

Capacitive sensor. Switching function: Normally open (NO), Output type: NAMUR, Installation: flush, Output type: 2-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Equipment protection level Ga: BVS 13 ATEX E 074 X, Equipment protection level Da: BVS 13 ATEX E 074 X, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67. Switching function: Normally open (NO). Output type: NAMUR. Rated operating distance: 10 mm. Installation: flush. Output type: 2-wire. Installation conditions: . A0 mmB0 mmC20 mmF60 mm: . A: 0 mm. B: 0 mm. C: 20 mm. F: 60 mm. Nominal voltage: 8.2 V (Ri approx. 1 kΩ). Operating voltage: 5 ... 15 V. Switching frequency: 0 ... 50 Hz. Reverse polarity protection: reverse polarity protected. Current consumption: . Measuring plate not detected≤ 1.5 mAMeasuring plate detected≥ 2.5 mA: . Measuring plate not detected: ≤ 1.5 mA. Measuring plate detected: ≥ 2.5 mA. Switching state indicator: LED, yellow. MTTFd: 1134 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . NAMUREN 60947-5-6:2000 IEC 60947-5-6:1999StandardsEN IEC 60947-5-2: . NAMUR: EN 60947-5-6:2000 IEC 60947-5-6:1999. Standards: EN IEC 60947-5-2. ATEX approval: . Equipment protection level GaBVS 13 ATEX E 074 XEquipment protection level DaBVS 13 ATEX E 074 X: . Equipment protection level Ga: BVS 13 ATEX E 074 X. Equipment protection level Da: BVS 13 ATEX E 074 X. ETL approval: cETLus. Ambient temperature: -20 ... 70 °C (-4 ... 158 °F). Connection type: cable. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: PTFE. Degree of protection: IP67. Cable: . Wire end ferrulesyesMaterialPURColorblueNumber of cores2Core cross section0.75 mm2LengthL2 m: . Wire end ferrules: yes. Material: PUR. Color: blue. Number of cores: 2. Core cross section: 0.75 mm2. Length: 2 m. Dimensions: . Length80 mmDiameter30 mm: . Length: 80 mm. Diameter: 30 mm. Use in the hazardous area: see instruction manuals

Brand	Pepperl Fuchs
Lifecycle status	active
