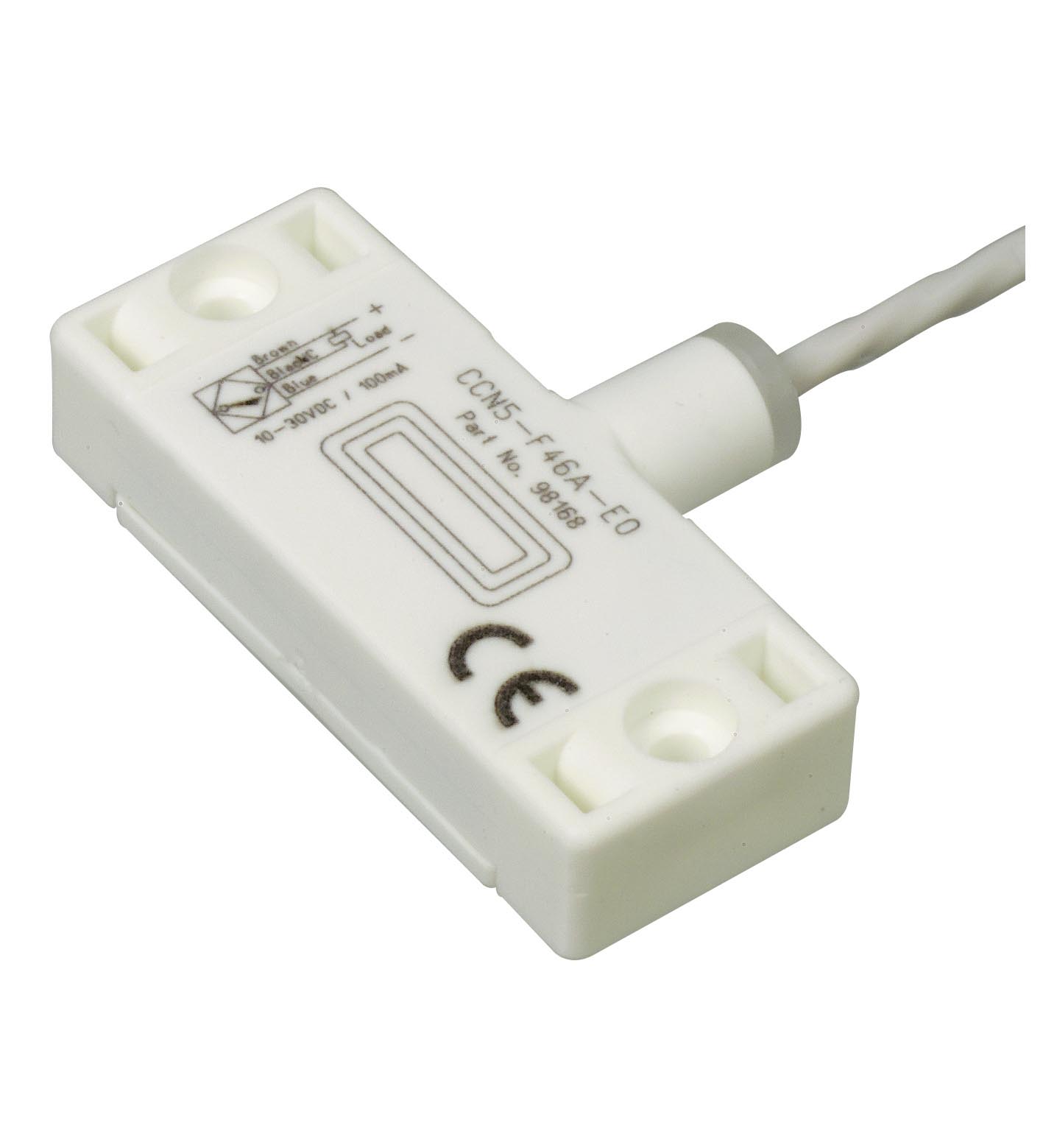

CCN5-F46A-E1

Capacitive sensor. Switching function: Normally closed (NC), Output type: NPN, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular ty...

Capacitive sensor. Switching function: Normally closed (NC), Output type: NPN, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: PVDF, Degree of protection: IP68. Switching function: Normally closed (NC). Output type: NPN. Rated operating distance: 5 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 3.5 mm. Output type: 3-wire. Installation conditions: . B0 mmC10 mmF20 mm / 50 mm: . B: 0 mm. C: 10 mm. F: 20 mm / 50 mm. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 10 Hz. Hysteresis: 1 ... 10 % typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Voltage drop at IL: . Voltage drop IL = 10 mA, switching element onUd0.8 ... 2.2 V typ. 1.4 V: Ud. Voltage drop IL = 10 mA, switching element on: 0.8 ... 2.2 V typ. 1.4 V. Operating current: 0 ... 100 mA. Lowest operating current: 0 mA. Off-state current: 0 ... 0.5 mA typ. 0.01 mA. Off-state current TU =40 °C, switching element off≤ 100 µA: . Off-state current TU =40 °C, switching element off: ≤ 100 µA. No-load supply current: ≤ 15 mA. Time delay before availability: ≤ 50 ms. Switching state indicator: LED, yellow. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Enclosure Type Rating: Type 1. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: cable. Housing material: PVDF. Sensing face: PVDF. Degree of protection: IP68. Cable: . Wire end ferrulesyesCable diameter3 mm - 0.2 mmBending radius> 12 x cable diameterMaterialFEPColorwhiteNumber of cores3Core cross section0.14 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 3 mm - 0.2 mm. Bending radius: > 12 x cable diameter. Material: FEP. Color: white. Number of cores: 3. Core cross section: 0.14 mm2. Length: 2 m. Dimensions: . Height10.5 mmWidth50 mmLength30.4 mm: . Height: 10.5 mm. Width: 50 mm. Length: 30.4 mm. Note: cable tensile strength 20 N

Brand	Pepperl Fuchs
Lifecycle status	active
