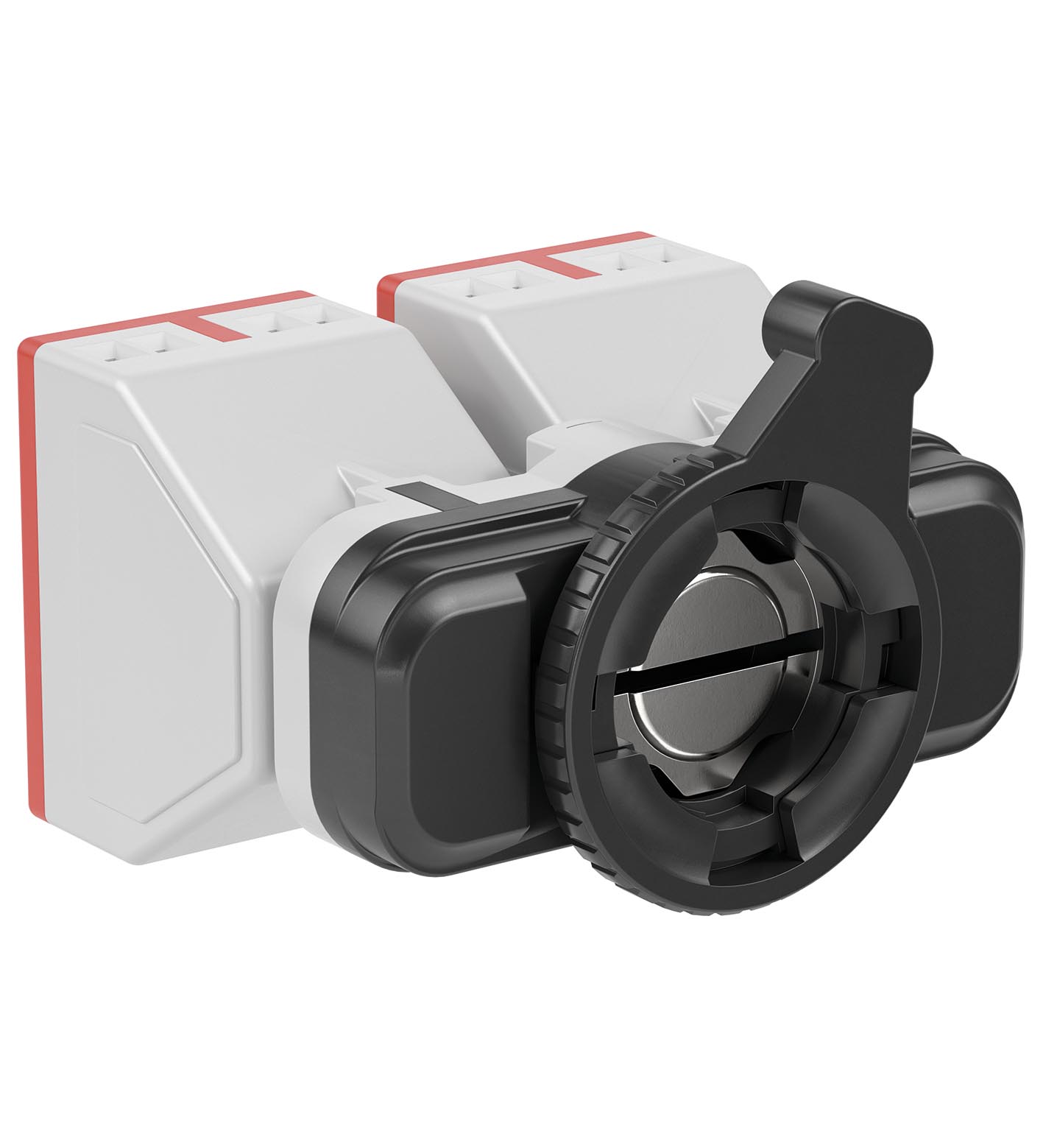

CFP.53.SP

Contact Block Ex e, 4 Pole, Cover-mounted. Contact block 1x NO / 3x NC, Component for appropriately certified Ex e enclosures, Mounting on enclosure cover, DIN rail mountable, Ex de certified, Polyami...

Contact Block Ex e, 4 Pole, Cover-mounted. Contact block 1x NO / 3x NC, Component for appropriately certified Ex e enclosures, Mounting on enclosure cover, DIN rail mountable, Ex de certified, Polyamide, For use with enclosure types SR*, Function: contact block, Housing: Polyamide (PA), Marking: [exsign] II 2 G <BR>Ex de IIC Gb. Operating voltage: 250 V max.. Operating current: 16 A max.. Terminal capacity: 2.5 mm2. Terminal torque0.8 Nm: . Terminal torque: 0.8 Nm. Function: contact block. Contact configuration1x NO / 3x NC all NC contacts have a direct opening action for emergency stop functionsUsage categoryAC12: 12 ... 250 V AC - 16 A AC15: 12 ... 250 V AC - 10 A DC13: 12 ... 110 V DC - 1 A DC13: 12 ... 24 V DC - 1 ANumber of poles4: . Contact configuration: 1x NO / 3x NC all NC contacts have a direct opening action for emergency stop functions. Usage category: AC12: 12 ... 250 V AC - 16 A AC15: 12 ... 250 V AC - 10 A DC13: 12 ... 110 V DC - 1 A DC13: 12 ... 24 V DC - 1 A. Number of poles: 4. Degree of protection: IP20. Material: . HousingPolyamide (PA): . Housing: Polyamide (PA). Mass: 166 g. Mechanical life: 1000000 switching operations. Dimensions: . External dimension (A)57 mmExternal dimension (B)73.4 mmExternal dimension (C)65.7 mm: . External dimension (A): 57 mm. External dimension (B): 73.4 mm. External dimension (C): 65.7 mm. Mounting: cover-mounted via actuator head. Service temperature: -40 ... 90 °C (-40 ... 194 °F). EU-type examination certificate: CML 16 ATEX 3339U. Marking II 2 G Ex de IIC Gb: . Marking: II 2 G Ex de IIC Gb. IECEx approval: IECEx CML 16.0114U. Degree of protection: EN 60529. Usage category: IEC / EN 60947. CE marking: 2829. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Enclosure type: SR.CS*

Brand	Pepperl Fuchs
Lifecycle status	active
