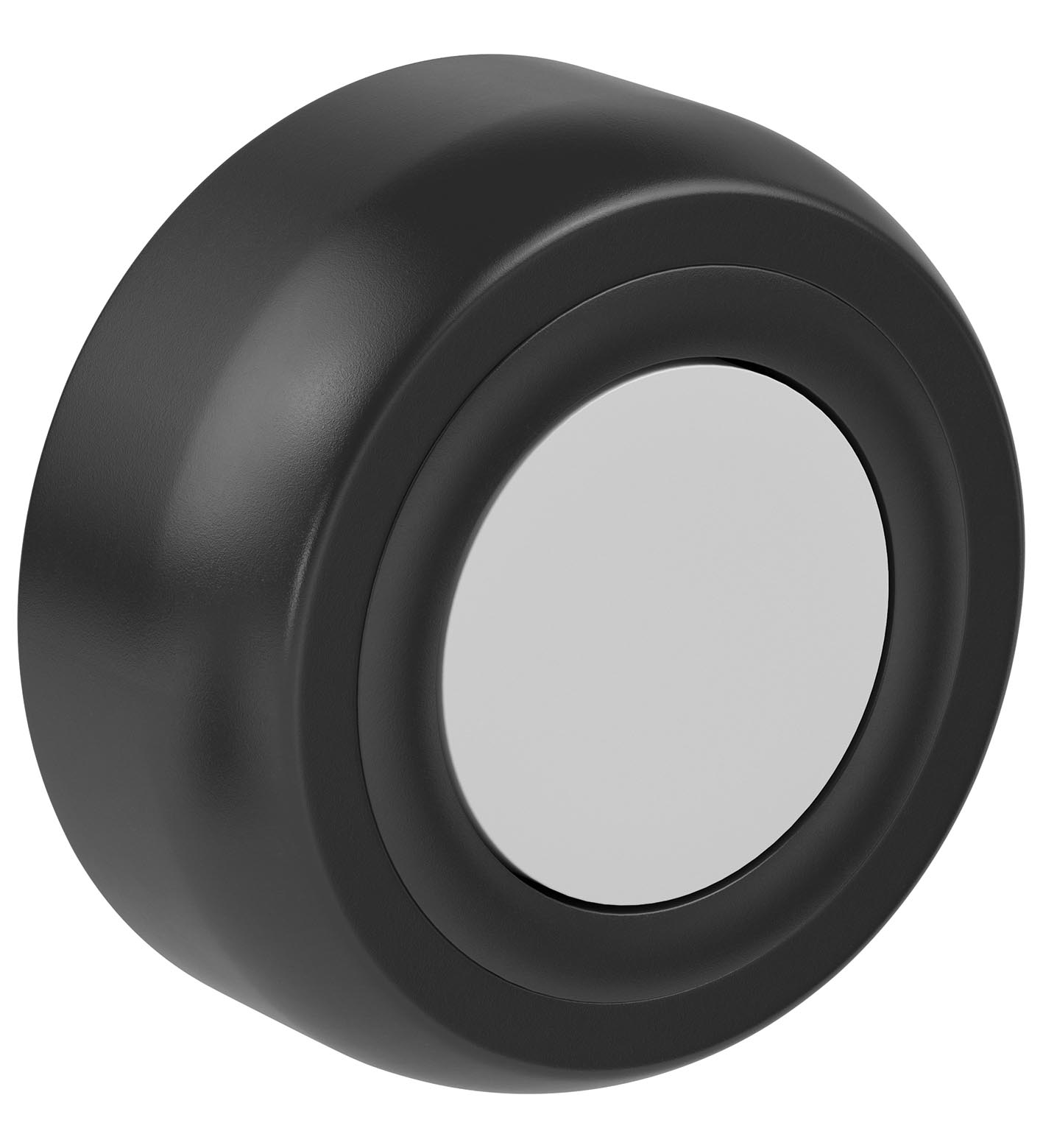

CFP.PZ2.SP

Actuator Head Ex e - Pushbutton. Color red, green, Labeling: 0 (red), STOP (red), OFF (red), I (green), START (green), ON (green), Component for appropriately certified Ex e enclosures, For use with b...

Actuator Head Ex e - Pushbutton. Color red, green, Labeling: 0 (red), STOP (red), OFF (red), I (green), START (green), ON (green), Component for appropriately certified Ex e enclosures, For use with base-mounted and lid-mounted contact modules, Ex e and Ex tb certified, Polyamide, Function: push button, Housing: Polyamide (PA), Marking: [exsign] II 2 GD <BR>Ex e IIC Gb <BR>Ex tb IIIC Db. Function: push button. Color of insertred, greenOperator actionspring returnLabeling0 (red), STOP (red), OFF (red), I (green), START (green), ON (green): . Color of insert: red, green. Operator action: spring return. Labeling: 0 (red), STOP (red), OFF (red), I (green), START (green), ON (green). Degree of protection: IP66. Material: . HousingPolyamide (PA)Finishinherent color blackWasher gasketsilicone: . Housing: Polyamide (PA). Finish: inherent color black. Washer gasket: silicone. Mass: 25 g. Dimensions: . Actuator head diameter (D2)39 mmPanel wall thickness (PT)1 ... 6 mmDiameter thru-hole (DT)30.6 mmLength outside enclosure (H)15.5 mmTotal length (L)35.4 mm: . Actuator head diameter (D2): 39 mm. Panel wall thickness (PT): 1 ... 6 mm. Diameter thru-hole (DT): 30.6 mm. Length outside enclosure (H): 15.5 mm. Total length (L): 35.4 mm. Tightening torque: 2.8 ... 3.4 Nm. Mounting: use with base-mounted and cover-mounted contact modules. Ambient temperature: -40 ... 55 °C (-40 ... 131 °F). Service temperature: -40 ... 65 °C (-40 ... 149 °F). EU-type examination certificate: CML 16 ATEX 3339U. Marking II 2 GD Ex e IIC Gb Ex tb IIIC Db: . Marking: II 2 GD Ex e IIC Gb Ex tb IIIC Db. IECEx approval: IECEx CML 16.0114U. Degree of protection: EN 60529. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Enclosure type: LR* SR*.CS* GR.CS*. Optional accessories: CFP.TP

Brand	Pepperl Fuchs
Lifecycle status	active
