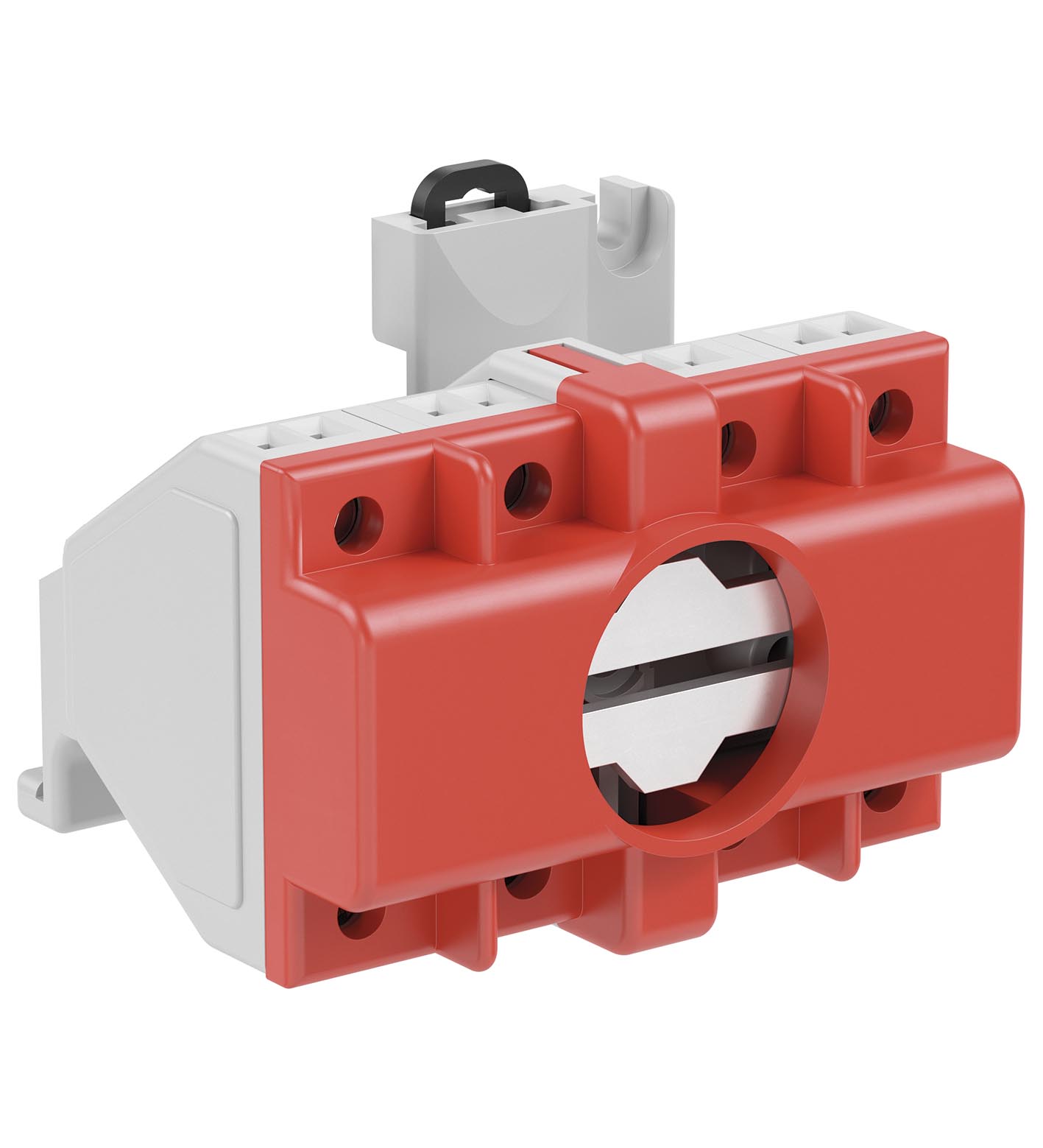

CFP.RO.SP

Contact Block Ex e, 2 Pole with Resistors, Base-mounted. Contact block 2x NO, Line fault detection, DIN rail mountable, Ex de certified, Polyamide, Component for appropriately certified Ex e enclosure...

Contact Block Ex e, 2 Pole with Resistors, Base-mounted. Contact block 2x NO, Line fault detection, DIN rail mountable, Ex de certified, Polyamide, Component for appropriately certified Ex e enclosures, For use with enclosure types LR* and GR*, Function: contact block, Housing: Polyamide (PA), Marking: [exsign] II 2 G <BR>Ex db eb IIC Gb. Operating voltage: 30 V max.. Operating current: 30 mA max.. Terminal capacity: 2.5 mm2. Terminal torque0.8 Nm: . Terminal torque: 0.8 Nm. Resistor: R1 in series, R2 switch bypass R1 = 1 kΩ R2 = 10 kΩ. Function: contact block. Contact configuration2x NOUsage categoryAC15: 12 ... 30 V AC - 30 mA DC13: 12 ... 30 V DC - 30 mANumber of poles2: . Contact configuration: 2x NO. Usage category: AC15: 12 ... 30 V AC - 30 mA DC13: 12 ... 30 V DC - 30 mA. Number of poles: 2. Degree of protection: IP20. Material: . HousingPolyamide (PA): . Housing: Polyamide (PA). Mass: 165 g. Mechanical life: 1000000 switching operations. Dimensions: . External dimension (A)63 mmExternal dimension (B)74 mmExternal dimension (C)58.6 mmMounting holes distance (G)52 mmDIN mounting rail receptacle (G3)35.6 mmMounting holes distance (H)58 mmMounting holes diameter (J)4.2 mmThickness of mounting brackets (N)8 mm: . External dimension (A): 63 mm. External dimension (B): 74 mm. External dimension (C): 58.6 mm. Mounting holes distance (G): 52 mm. DIN mounting rail receptacle (G3): 35.6 mm. Mounting holes distance (H): 58 mm. Mounting holes diameter (J): 4.2 mm. Thickness of mounting brackets (N): 8 mm. Mounting: base-mounted DIN rail mounting. Service temperature: -40 ... 90 °C (-40 ... 194 °F). EU-type examination certificate: CML 19 ATEX 1177U. Marking II 2 G Ex db eb IIC Gb: . Marking: II 2 G Ex db eb IIC Gb. IECEx approval: IECEx CML 19.0053U. Degree of protection: EN 60529. CE marking: 2829. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Enclosure type: LR* GR.CS*

Brand	Pepperl Fuchs
Lifecycle status	active
