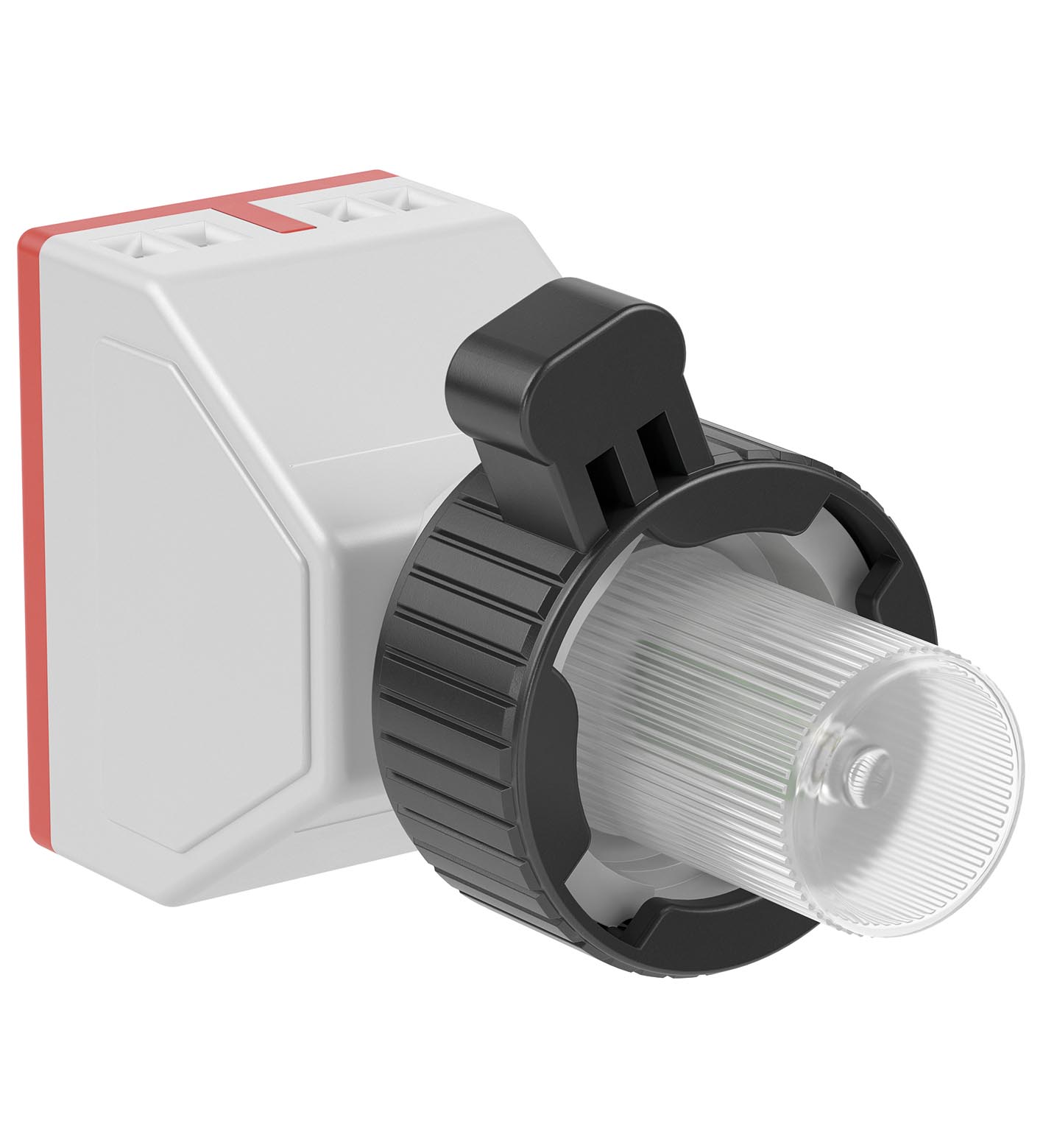

CFP.R.SP

LED Module Ex e, Cover-mounted. 30 ... 250 V AC/DC, Component for appropriately certified Ex e enclosures, Mounting on enclosure cover, Ex de certified, Polyamide, For use with enclosure types FXL*, F...

LED Module Ex e, Cover-mounted. 30 ... 250 V AC/DC, Component for appropriately certified Ex e enclosures, Mounting on enclosure cover, Ex de certified, Polyamide, For use with enclosure types FXL*, Function: LED module, Housing: Polyamide (PA), Marking: [exsign] II 2 G <BR>Ex de IIC Gb. Operating voltage: 250 V max. AC/DC. Power consumption: 1 W max.. Terminal capacity: 2.5 mm2. Terminal torque0.8 Nm: . Terminal torque: 0.8 Nm. Function: LED module. Rated operating voltage30 ... 250 V AC/DC: . Rated operating voltage: 30 ... 250 V AC/DC. Degree of protection: IP20. Material: . HousingPolyamide (PA): . Housing: Polyamide (PA). Mass: 71 g. Dimensions: . External dimension (A)54 mmExternal dimension (B)37 mmExternal dimension (C)63 mmTotal length (L)88 mm: . External dimension (A): 54 mm. External dimension (B): 37 mm. External dimension (C): 63 mm. Total length (L): 88 mm. Mounting: cover-mounted via actuator head. Service temperature: -40 ... 90 °C (-40 ... 194 °F). EU-type examination certificate: CML 16 ATEX 3339U. Marking II 2 G Ex de IIC Gb: . Marking: II 2 G Ex de IIC Gb. IECEx approval: IECEx CML 16.0114U. Degree of protection: EN 60529. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Enclosure type: SR.CS*

Brand	Pepperl Fuchs
Lifecycle status	active
