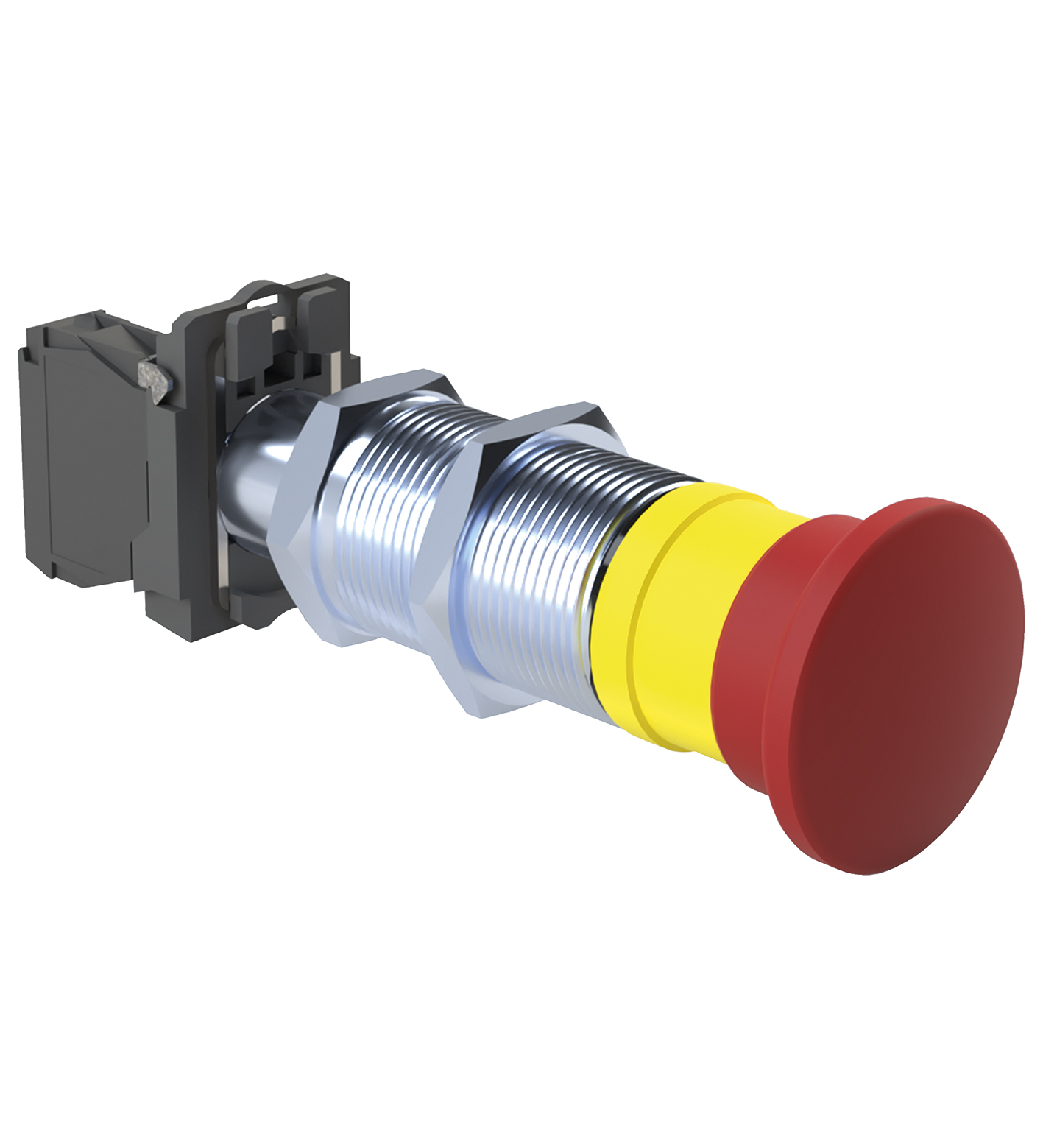

CFS.MOD.E3.CB01.K01.SP

Actuator Head Assembly. Component for appropriately certified Ex d enclosures, Ex db and Ex tb certified, Polyamide and brass nickel-plated, Function: mushroom button with contact block, Housing: Poly...

Actuator Head Assembly. Component for appropriately certified Ex d enclosures, Ex db and Ex tb certified, Polyamide and brass nickel-plated, Function: mushroom button with contact block, Housing: Polyamide (PA) , brass nickel-plated, Marking: [exsign] II 2 GD <BR>Ex db IIC Gb <BR>Ex tb IIIC Db. Operating voltage: 250 V max.. Operating current: 6 A max.. Terminal capacity: 2x 1.5 mm2. Terminal torque0.8 Nm: . Terminal torque: 0.8 Nm. Function: mushroom button with contact block. Contact configuration1x NC Usage categoryAC15: 12 ... 250 V AC - 1.2 A AC15: 12 ... 240 V AC - 3 A AC15: 12 ... 120 V AC - 6 A DC13: 12 ... 250 V DC - 0.27 A DC13: 12 ... 125 V DC - 0.55 ANumber of poles1Operator actionlatching , pull to releaseLabelingnone: . Contact configuration: 1x NC. Usage category: AC15: 12 ... 250 V AC - 1.2 A AC15: 12 ... 240 V AC - 3 A AC15: 12 ... 120 V AC - 6 A DC13: 12 ... 250 V DC - 0.27 A DC13: 12 ... 125 V DC - 0.55 A. Number of poles: 1. Operator action: latching , pull to release. Labeling: none. Thread size (TD): M28. Degree of protection: IP66. Material: . HousingPolyamide (PA) , brass nickel-platedFinishinherent color black: . Housing: Polyamide (PA) , brass nickel-plated. Finish: inherent color black. Mass: 137 g. Mechanical life: 10000000 switching operations. Dimensions: . Actuator head diameter (D2)38.8 mmPanel wall thickness (PT)10 ... 37.5 mmLength outside enclosure (H)34 mmTotal length (L)126 mm: . Actuator head diameter (D2): 38.8 mm. Panel wall thickness (PT): 10 ... 37.5 mm. Length outside enclosure (H): 34 mm. Total length (L): 126 mm. Tightening torque: 1.2 Nm. Mounting: use with lid-mounted contact modules. Service temperature: -40 ... 70 °C (-40 ... 158 °F). EU-type examination certificate: CML 17 ATEX 1341U. Marking II 2 GD Ex db IIC Gb Ex tb IIIC Db: . Marking: II 2 GD Ex db IIC Gb Ex tb IIIC Db. IECEx approval: IECEx CML 17.0181U. UKCA approval: CML 21 UKEX 1422U. Degree of protection: EN 60529. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Enclosure type: EJB , EJBX. Optional accessories: CFS.CB01.K50.SP CFS.CB10.K50.SP

Brand	Pepperl Fuchs
Lifecycle status	active
