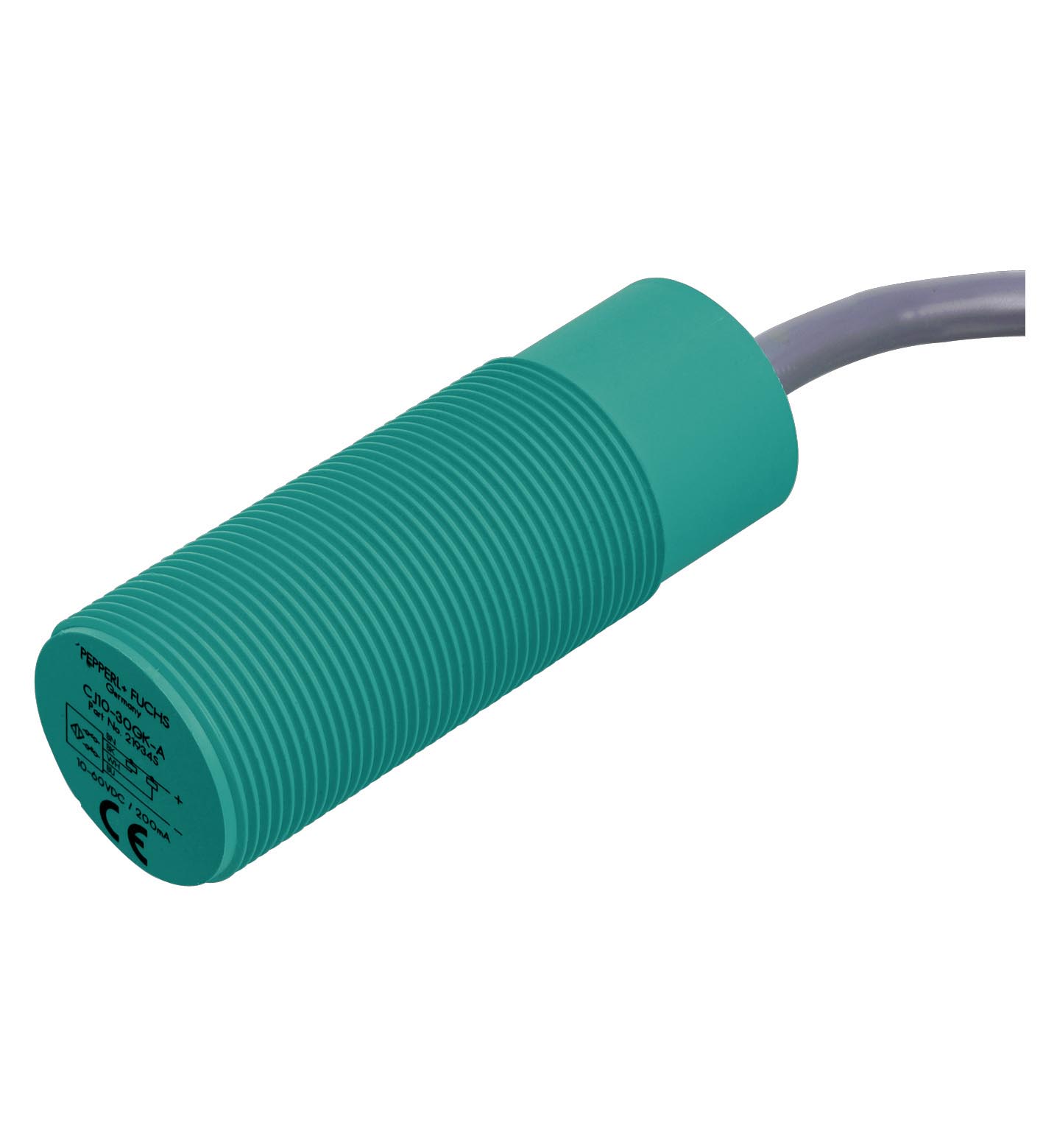

CJ10-30GK-WS

Capacitive sensor. Switching function: Normally open (NO), Output type: Two-wire, Installation: non-flush, Output polarity: AC, Output type: 2-wire, Thread mold: M30, Construction type: Cylindrical, t...

Capacitive sensor. Switching function: Normally open (NO), Output type: Two-wire, Installation: non-flush, Output polarity: AC, Output type: 2-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 20 ... 253 V AC ¹⁾, Potentiometer: sensitivity adjustment, Type of voltage: AC, Connection type: cable, Housing material: PBT, Degree of protection: IP67. Switching function: Normally open (NO). Output type: Two-wire. Rated operating distance: 10 mm. Installation: non-flush. Output polarity: AC. Assured operating distance: 0 ... 7.2 mm. Output type: 2-wire. Installation conditions: . A18 mmB10 mmC20 mmF60 mm: . A: 18 mm. B: 10 mm. C: 20 mm. F: 60 mm. Operating voltage: 20 ... 253 V AC 1). Switching frequency: 0 ... 10 Hz. Hysteresis: 2 ... 10 % typ. 5 %. Reverse polarity protection: reverse polarity tolerant. Voltage drop at IL: . Voltage drop IL = 100 mA, switching element onUdtyp. 7 V: Ud. Voltage drop IL = 100 mA, switching element on: typ. 7 V. Momentary current(20 ms, 0.1 Hz): 0 ... 1200 mA. Rated insulation voltage: 1500 V. Operating current: 5 ... 200 mA. Lowest operating current: 5 mA. Off-state current: 0.7 ... 1.5 mA typ.. Time delay before availability: ≤ 300 ms. Switching state indicator: LED, yellow. Potentiometer: sensitivity adjustment. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Enclosure Type Rating: Type 1. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Connection type: cable. Housing material: PBT. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter6 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores2Core cross section0.75 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 6 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 2. Core cross section: 0.75 mm2. Length: 2 m. Dimensions: . Length80 mmDiameter30 mm: . Length: 80 mm. Diameter: 30 mm. Note: 1) In the temperature range below 0 °C, permissible operating voltage Ub 80...253 V Safety fuse ≤ 0.8 A (quick-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly.

Brand	Pepperl Fuchs
Lifecycle status	active
