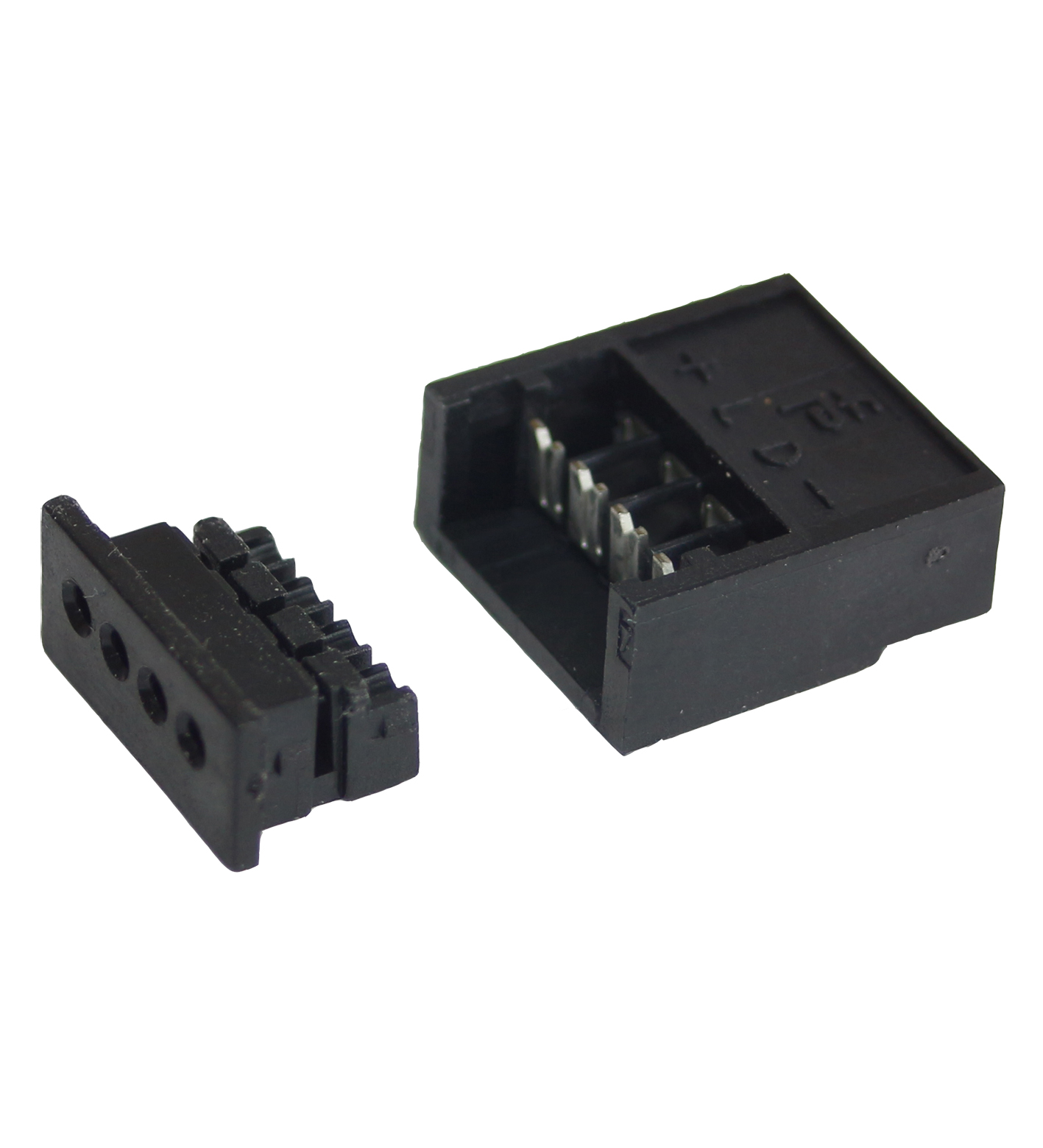

CON GL5

Connector. Connector for series GL5 slot sensors, Insulation displacement connection. Number of pins: 4. Construction type: Socket, straight. Nominal voltage: 60 V DC / 48 V AC. Ambient temperature: -...

Connector. Connector for series GL5 slot sensors, Insulation displacement connection. Number of pins: 4. Construction type: Socket, straight. Nominal voltage: 60 V DC / 48 V AC. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP20. Connection: Socket, straight , 4-pin. Material: . BodyPBTCore insolationPVC: . Body: PBT. Core insolation: PVC. Single core: . Diameterconductor: Ø0.40 mm, core insulation: Ø0.70 mm conductor: Ø0.50 mm, core insulation: Ø1.00 mm conductor: Ø0.65 mm, core insulation: Ø1.15 mm (max. 1.25 mm)Core cross-section0.05 ... 0.14 mm2 , 30 ... 26 AWG: . Diameter: conductor: Ø0.40 mm, core insulation: Ø0.70 mm conductor: Ø0.50 mm, core insulation: Ø1.00 mm conductor: Ø0.65 mm, core insulation: Ø1.15 mm (max. 1.25 mm). Core cross-section: 0.05 ... 0.14 mm2 , 30 ... 26 AWG. Mass: 25 g

Brand	Pepperl Fuchs
Lifecycle status	active
